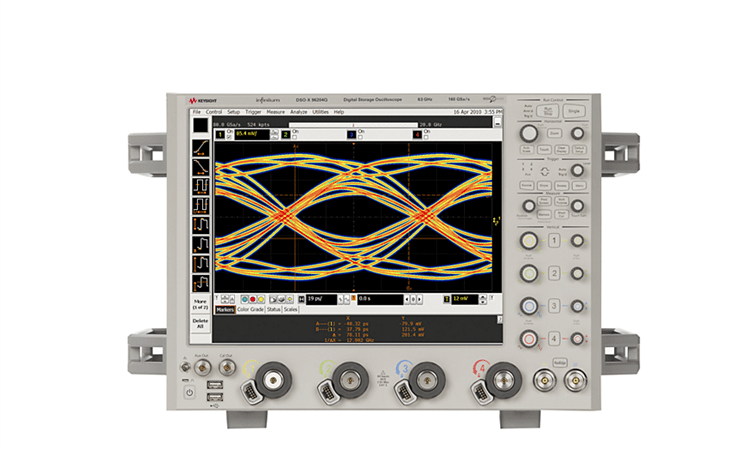

Keysight Technologies DSOX96204Q
Infiniium High-Performance Oscilloscope: 63 GHz
20 GHz Ancho de banda
4 canales analógicos Número de canales
80 GSa/s Tasa de muestreo máxima
2 Gpuntos (estándar), hasta 64 Gpuntos (opcional) Profundidad de memoria
8 bits (hasta 12 bits en modo de alta resolución) Resolución vertical
| Atributo | Valor |
|---|---|
| Ancho de banda | 20 GHz |
| Número de canales | 4 canales analógicos |
| Tasa de muestreo máxima | 80 GSa/s |
| Profundidad de memoria | 2 Gpuntos (estándar), hasta 64 Gpuntos (opcional) |
| Resolución vertical | 8 bits (hasta 12 bits en modo de alta resolución) |
| Pantalla | Pantalla táctil capacitiva de 15,6 pulgadas (1366 x 768 píxeles) |
| Tasa de actualización de formas de onda | Hasta 450.000 formas de onda por segundo |
| Impedancia de entrada | 50 Ω o 1 MΩ |
| Rango de voltaje de entrada máximo | ±30 V (modo 1 MΩ), ±5 V (modo 50 Ω) |
| Conectividad e interfaces | USB, LAN (LXI), GPIB (opcional), salida de pantalla DisplayPort |
Keysight (Agilent) DSOX96204Q Options:
- DSOX96204Q - DSOX90000-050 - 50 Mpts/ch memory
- DSOX96204Q - DSOX90000-100 - 100 Mpts/ch memory
- DSOX96204Q - DSOX90000-200 - 200 Mpts/ch memory
- DSOX96204Q - DSOX90000-500 - 500 Mpts/ch memory
- DSOX96204Q - DSOX90000-01G - 1 Gpt/ch memory
- DSOX96204Q - DSOX90000-02G - 2 Gpts/ch memory
- DSOX96204Q - DSOX90000-A6J - ANSI Z540 compliant calibration
- DSOX96204Q - DSOX90000-1A7 - ISO17025 calibration
- DSOX96204Q - DSOX90000-820 - DVD RW
- DSOX96204Q - DSOX90000-808 - Performance verification de-skew fixture for InfiniiMax III probe
- DSOX96204Q - DSOX90000-1CM - Rackmount kit option
- DSOX96204Q - 001 - PrecisionProbe: Characterize and compensate for loss from your input to your oscilloscope to 33 GHz
- DSOX96204Q - 827 - PrecisionProbe Advanced: Characterize and compensate for loss from your input to your oscilloscope to 63 GHz
- DSOX96204Q - 009 - InfiniiScan: Trigger on unique events including using zones on multiple channels and non-monotonic edges
- DSOX96204Q - 002 - EZJIT: Basic jitter analysis with measurement trending, time interval error and many more measurements
- DSOX96204Q - 004 - EZJIT Plus: Get in-depth analysis of your jitter by decomposing your jitter
- DSOX96204Q - 070 - EZJIT Complete: Understand your full real time by decomposing the noise that is impacting your margins
- DSOX96204Q - 003 - Serial data analysis: Recover clocks to 120 Gb/s and view real-time eyes. Run mask testing
- DSOX96204Q - 012 - Serial data equalization: Properly emulate your design equalizers including FFE, CTLE and DFE
- DSOX96204Q - 013 - InfiniiSim Basic: Waveform transformation software to remove or add three elements in your link
- DSOX96204Q - 014 - InfiniiSim Advanced: Waveform transformation software to remove or add 27 elements in your link
- DSOX96204Q - 010 - User-defined function: Create custom functions that run live on your oscilloscope with MathWorks MATLAB software
- DSOX96204Q - 061 - MATLAB Basic: Purchase an introductory MATLAB software package to acquire scope measurements into the MATLAB environment
- DSOX96204Q - 062 - MATLAB Standard: Purchase a typical MATLAB software package, signal processing and filter design toolboxes on the same PO as your scope
- DSOX96204Q - 065 - User-defined function with MATLAB: Create and execute custom functions that run live on your oscilloscope. Includes MATLAB standard software (Option 062)
- DSOX96204Q - 040 - User-defined application: Fully customizable automated application for your Infiniium oscilloscope
- DSOX96204Q - 112 - PCI Express Gen 1/2/3/4: Guarantee your PCI Express Gen4 designs
- DSOX96204Q - 077 - HDMI 2.0 compliance: Quickly verify and debug your high-definition multimedia interface
- DSOX96204Q - 043 - SAS-2 compliance: Automatically execute SAS electrical checklist tests
- DSOX96204Q - 076 - SAS-3 compliance: Automatically execute SAS electrical checklist tests
- DSOX96204Q - 045 - DisplayPort source compliance: Verify and debug your DisplayPort interface designs
- DSOX96204Q - 031 - DDR1 verification: Save time with automated testing based on JEDEC DDR1 and LPDDR1 specifications
- DSOX96204Q - 032 - DDR3 verification: Save time with automated testing based on JEDEC DDR3 specifications
- DSOX96204Q - 033 - DDR2 verification: Save time with automated testing based on JEDEC DDR2 and LPDDR2 specifications
- DSOX96204Q - 074 - 10GBASE-KR compliance: Test to IEEE 802.3 clause 49 over a single backplane lane
- DSOX96204Q - 035 - MIPI D-PHY verification: Execute D-PHY electrical checklist tests for CSI and DSI architectures
- DSOX96204Q - 047 - MIPI M-PHY verification: Execute M-PHY electrical tests
- DSOX96204Q - 060 - Energy Efficient Ethernet: Debug your 1000BASE-T, 100BASE-TX, and 10BASE-T Ethernet designs
- DSOX96204Q - 036 - 10-GBASE-T compliance: Coverage of the 10GBASE-T transmitter electrical specifications
- DSOX96204Q - 030 - XAUI compliance: XAUI validation with 10GBASE-CX4, CPRI, OBSAI, and Serial RapidIO support
- DSOX96204Q - 038 - SATA 6G compliance: Automated compliance testing for 1.5-Gbps, 3.0-Gbps and 6.0-Gbps SATA, and eSATA transmitter
- DSOX96204Q - 029 - USB 2.0 compliance: USB-IF recognized compliance for low/full and low/full/high-speed USB automated electrical test
- DSOX96204Q - 041 - USB 3.0 compliance: Validate and debug your USB 3.0 silicon, host, hub or device
- DSOX96204Q - 046 - USB HSIC: Validate and debug USB high speed inter-connect devices
- DSOX96204Q - 054 - MHL compliance: Validates MHL source designs according to the MHL 1.2 standard
- DSOX96204Q - 059 - Thunderbolt compliance: Measure the transmitter with the accuracy of the 90000 Q-Series
- DSOX96204Q - 049 - PCI Express Gen3 protocol: Time-correlated views of physical and transaction layer errors, 128/130-bit decoding
- DSOX96204Q - 048 - Ethernet 10GBASE-KR protocol: Full protocol analysis for 10GBASE-KR 64/66-bit decoder
- DSOX96204Q - 018 - SATA/SAS protocol: Full-capability protocol viewer for 3G, 6G and 12 Gbit/s
- DSOX96204Q - 051 - DigRF v4: Extend your scope capability with DigRF v4 triggering and decode
- DSOX96204Q - 007 - I2C/SPI: Extend your scope capability with I2C and SPI triggering and decode
- DSOX96204Q - 015 - RS232/UART: Easily view the information sent over an RS-232, RS-422, RS-485 or other UART serial buses
- DSOX96204Q - 016 - USB 2.0 protocol: Trigger on and quickly view USB packets, payload, header and detailed information
- DSOX96204Q - 017 - PCI Express Gen1 and 2 protocol: Quickly view packets, payload, header, and detailed information
- DSOX96204Q - 019 - MIPI D-PHY protocol: Easily view the information sent over MIPI serial buses
- DSOX96204Q - 063 - CAN/FlexRay: View both protocol-layer information and physical-layer signal characteristics for CAN, LIN, CAN-FD, and FlexRay buses
- DSOX96204Q - 042 - JTAG: Eliminate the difficult task of manually determining JTAG TAP controller states, instruction, and data register decode
- DSOX96204Q - 056 - SVID: Decode and search on SVID technology
- DSOX96204Q - 052 - Unipro decode: Decode at the protocol level
| Model | DSOX96204Q |
|---|
El Keysight (Agilent) DSOX96204Q es un osciloscopio de cuatro canales de alto rendimiento con un ancho de banda de 62 GHz, diseñado para una fidelidad de señal excepcional. Proporciona una visibilidad en tiempo real sin igual y admite análisis avanzados de modulación RF y ruido de fase.
Ideal para pruebas en el sector aeroespacial, comunicaciones 5G y conexiones de alta velocidad, con análisis preciso de modulación RF.
Testwall puede suministrar el Keysight (Agilent) DSOX96204Q usado, completamente probado. Con soporte experto y entrega global, Testwall ofrece instrumentación de alto rendimiento con una fiabilidad y calidad de servicio inigualables. Contáctenos directamente si necesita calibración o reparación del Keysight (Agilent) DSOX96204Q.
