Keysight (Agilent)

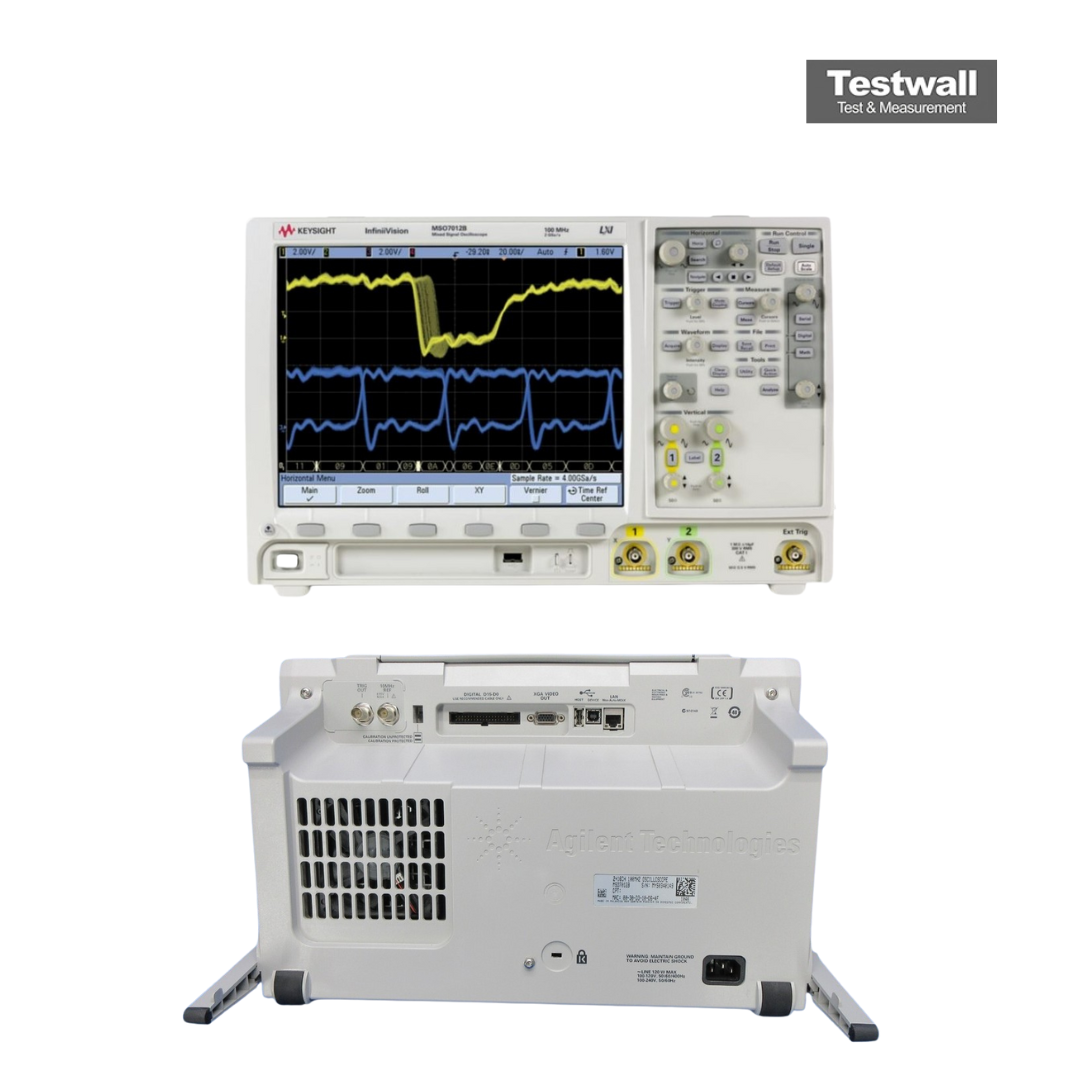

Keysight Technologies MSO7012B
Mixed Signal Oscilloscope, 100 MHz 2 + 16 Ch., 2 GSa/s
100 MHz Ancho de banda
2 Canales analógicos
16 Canales digitales
2 GSa/s Tasa de muestreo máxima
8 Mpts Profundidad de memoria
| Atributo | Valor |
|---|---|
| Ancho de banda | 100 MHz |
| Canales analógicos | 2 |
| Canales digitales | 16 |
| Tasa de muestreo máxima | 2 GSa/s |
| Profundidad de memoria | 8 Mpts |
| Pantalla | Pantalla táctil a color XGA de 12,1 pulgadas |
| Resolución vertical | 8 bits |
| Tiempo de subida | 3,5 ns |
| Sensibilidad vertical | 1 mV/div a 5 V/div |
| Interfaz | USB, LAN, GPIB (opcional) |
Keysight (Agilent) MSO7012B Options:
- MSO7012B - 002 - Alternative standard probe: N2871A (10:1 150 MHz passive probe with probe ID) in place of default 10074D
- MSO7012B - SEC - Secure Environment Mode - Provides compliance with National Industrial Security Program Operating Manual (NISPOM) Chapter 8 requirements (factory-installed option only for new purchase)
- MSO7012B - A6J - ANSI Z540 compliant calibration
- MSO7012B - AMS - CAN/LIN automotive triggering and decode (4 and 4+16 channel models only)
- MSO7012B - LSS - I2C/SPI serial decode option (for 4/4+16 channel models only)
- MSO7012B - 232 - RS-232/UART triggering and decode (4 and 4+16 channel models only)
- MSO7012B - SND - I2S Triggering and Decode (4 and 4+16 channel models only)
- MSO7012B - FLX - FlexRay Measurements (4 and 4+16 channel models only)
- MSO7012B - 553 - MIL-STD 1553 Triggering and Decode (4 and 4+16 channel models only)
- MSO7012B - SGM - Segmented memory
- MSO7012B - LMT - Mask limit testing
- MSO7012B - ABA - Printed user's guide in English
- MSO7012B - AB2 - Printed user's guide in Simplified Chinese
- MSO7012B - ABJ - Printed user's guide in Japanese
| Model | MSO7012B |
|---|
El osciloscopio de señales mixtas Keysight (Agilent) MSO7012B ofrece 100 MHz de ancho de banda, 2 GSa/s de tasa de muestreo y memoria de 8 Mpts en 2 canales analógicos y 16 digitales. Pantalla XGA de 12,1" con 256 niveles de intensidad.
Ideal para visualización de señales y depuración, con soporte de depuración FPGA, memoria segmentada y análisis offline en PC.
Testwall puede suministrar el Keysight (Agilent) MSO7012B usado, completamente probado. Con soporte experto y entrega global, garantizamos instrumentos fiables. Contáctenos para calibración o reparación del Keysight (Agilent) MSO7012B.
