Keysight (Agilent)

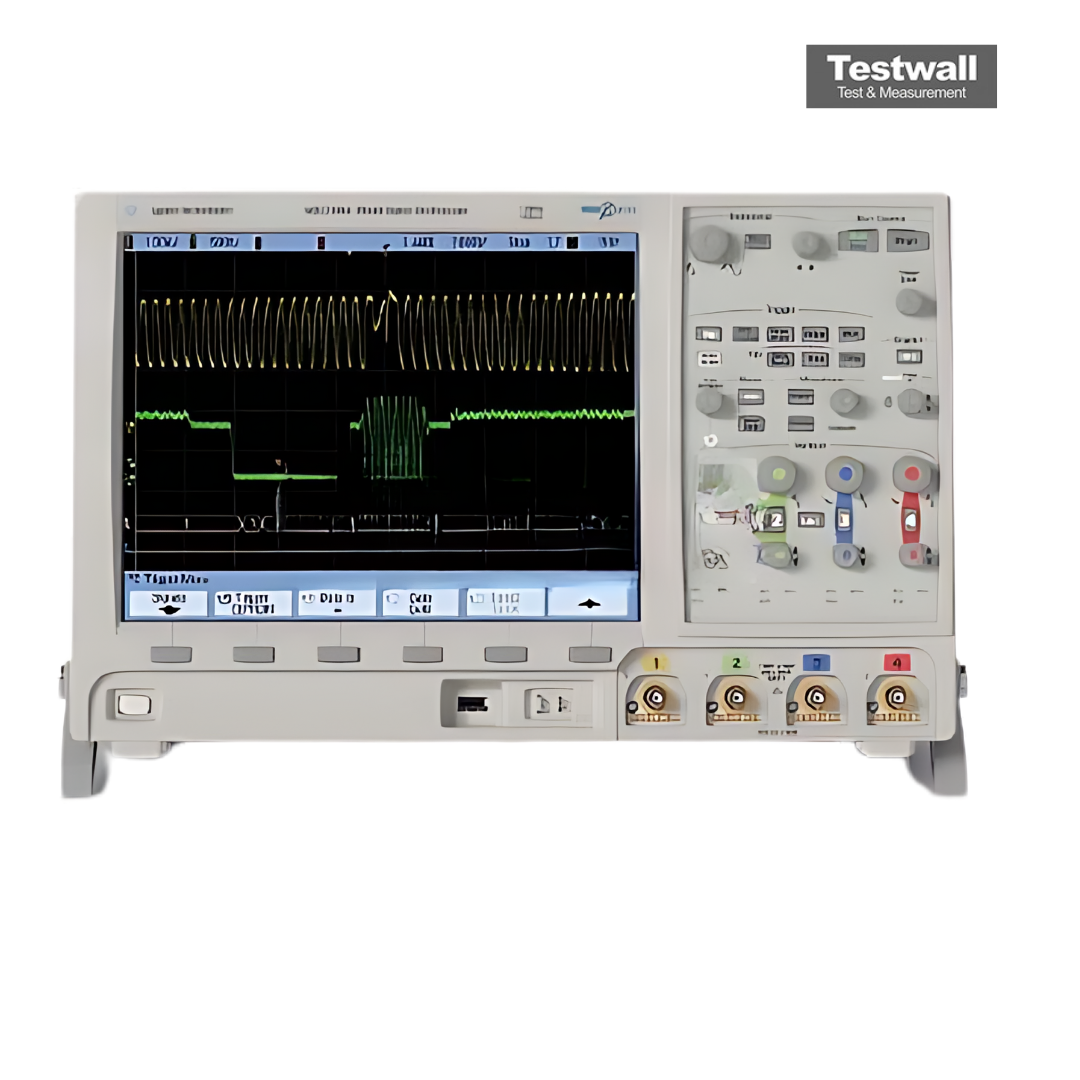

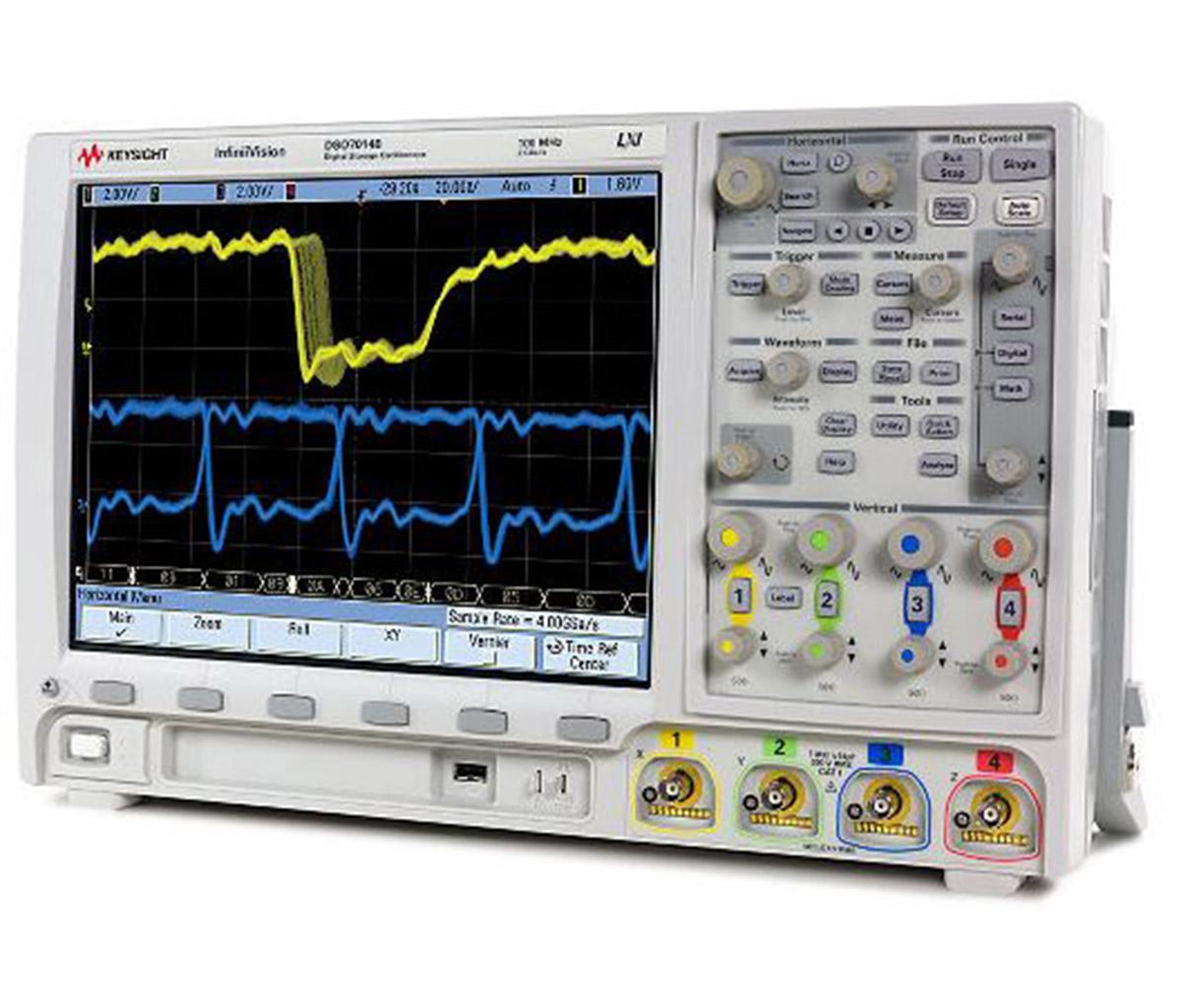

Keysight Technologies MSO7104B
1GHz, 4+16 channel Mixed Signal Oscilloscope
1 GHz Ancho de banda
4 Canales analógicos
16 Canales digitales
4 GSa/s Frecuencia de muestreo máxima
8 Mpts por canal Profundidad de memoria
| Atributo | Valor |
|---|---|
| Ancho de banda | 1 GHz |
| Canales analógicos | 4 |
| Canales digitales | 16 |
| Frecuencia de muestreo máxima | 4 GSa/s |
| Profundidad de memoria | 8 Mpts por canal |
| Tamaño de pantalla | 12,1 pulgadas XGA |
| Sensibilidad vertical | 1 mV/div a 5 V/div |
| Rango de escala de tiempo | 1 ns/div a 50 s/div |
| Tasa de actualización de forma de onda | 100.000 formas de onda por segundo |
| Interfaz de conectividad | USB, LAN (LXI), GPIB opcional |
Keysight Technologies MSO7104B Options:
- MSO7104B - 002 - Alternative standard probe (N2873A instead of 10073D for 350 MHz – 1 GHz models)
- MSO7104B - SEC - Secure Environment Mode – compliance with NISPOM Chapter 8 requirements (factory-installed, new purchase only)
- MSO7104B - A6J - ANSI Z540 compliant calibration
- MSO7104B - AMS - CAN/LIN automotive triggering and decode (4 and 4+16 channel models only)
- MSO7104B - LSS - I²C/SPI serial decode option (4 and 4+16 channel models only)
- MSO7104B - 232 - RS-232/UART triggering and decode (4 and 4+16 channel models only)
- MSO7104B - SND - I²S triggering and decode (4 and 4+16 channel models only)
- MSO7104B - FLX - FlexRay measurements (4 and 4+16 channel models only)
- MSO7104B - 553 - MIL-STD 1553 triggering and decode (4 and 4+16 channel models only)
- MSO7104B - SGM - Segmented memory
- MSO7104B - LMT - Mask limit testing
- MSO7104B - ABA - Printed user's guide in English
- MSO7104B - AB2 - Printed user's guide in Simplified Chinese
- MSO7104B - ABJ - Printed user's guide in Japanese
| Model | MSO7104B |
|---|
The Keysight (Agilent) MSO7104B Mixed Signal Oscilloscope features 1 GHz bandwidth, 4 GSa/s sample rate, 4 analog and 16 digital channels, and a 12.1” XGA display. Offers 8 Mpts memory and 100,000 wfms/s update rate.
Supports segmented memory, automatic search, and multiple serial decode options including CAN, SPI, and I2C.
Testwall can supply the used Keysight (Agilent) MSO7104B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) MSO7104B.
