Keysight (Agilent)

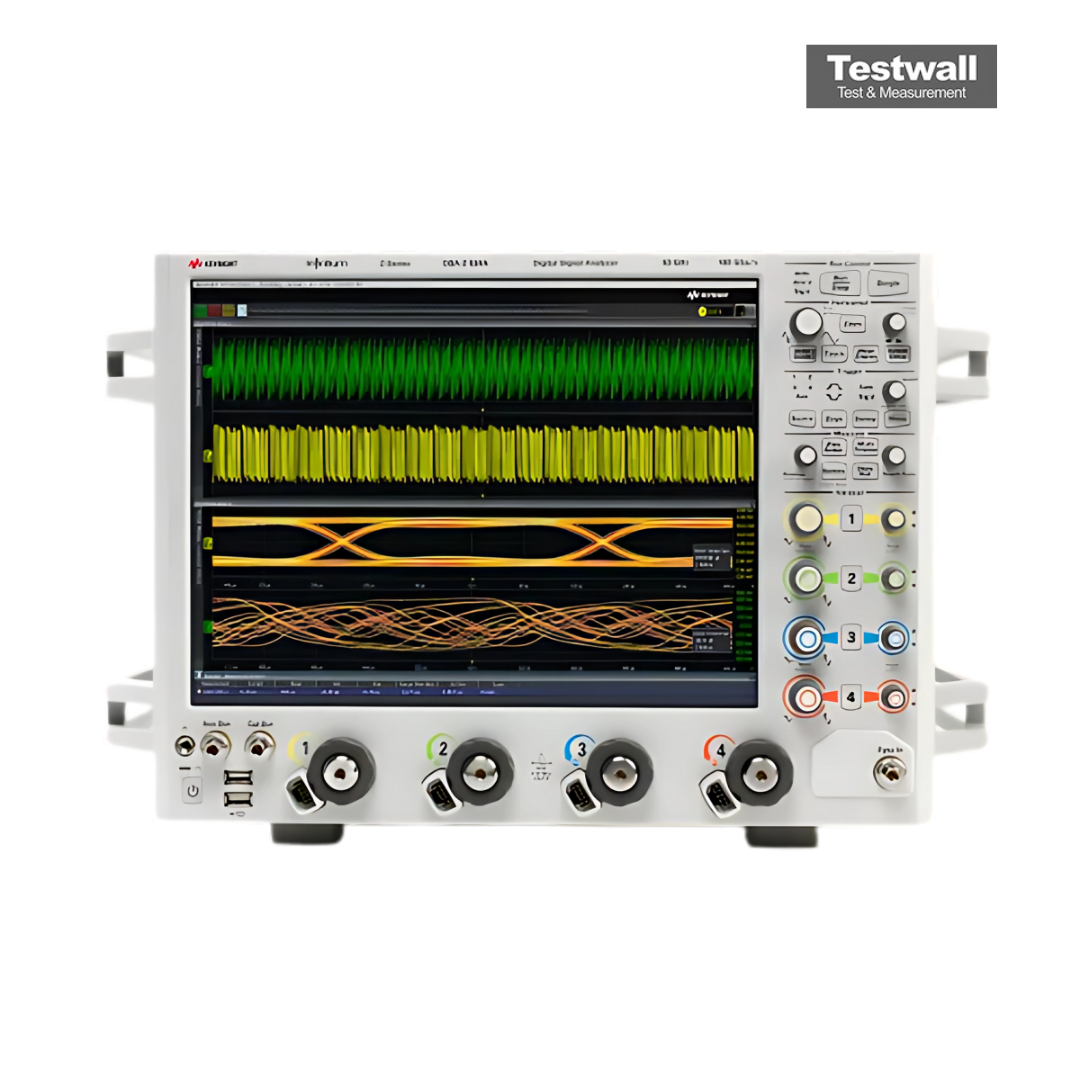

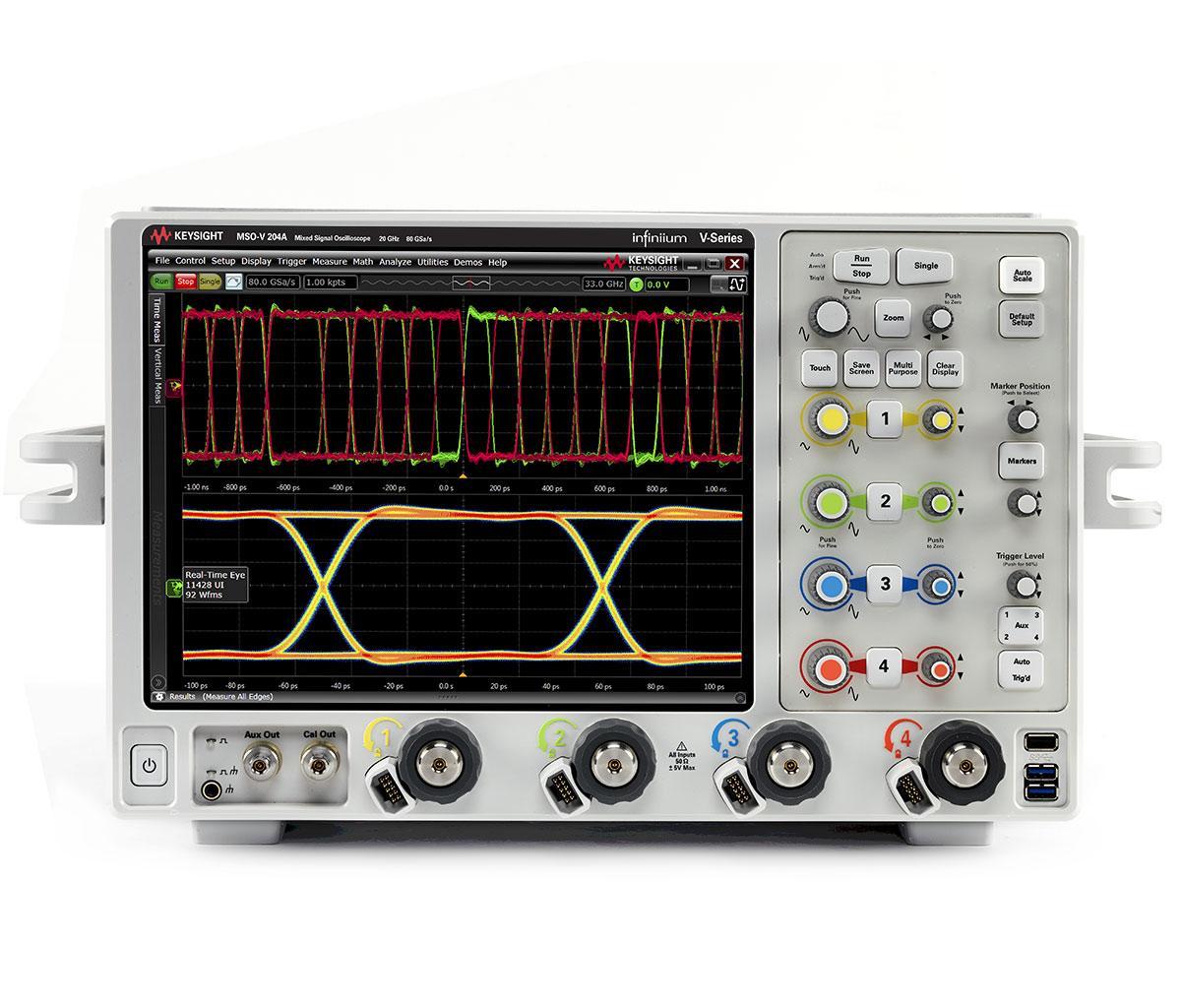

Keysight Technologies MSOV204A
20 GHz, 4 Analog Channel plus 16 Digital Channels Infiniium Oscilloscope
20 GHz Ancho de banda
4 Canales analógicos
80 GSa/s Tasa de muestreo máxima
2 Gpts (estándar) Profundidad de memoria
8 bits (hasta 10 bits en modo de alta resolución) Resolución vertical
| Atributo | Valor |
|---|---|
| Ancho de banda | 20 GHz |
| Canales analógicos | 4 |
| Tasa de muestreo máxima | 80 GSa/s |
| Profundidad de memoria | 2 Gpts (estándar) |
| Resolución vertical | 8 bits (hasta 10 bits en modo de alta resolución) |
| Pantalla | Pantalla táctil capacitiva de 15,6 pulgadas |
| Canales digitales | 16 canales lógicos digitales (MSO) |
| Ruido del sistema | menor o igual a 50 µV RMS (típico) |
| Interfaz y conectividad | USB, LAN (LXI), GPIB (opcional), DisplayPort |
| Sistema operativo | Windows 10 integrado |
Keysight Technologies MSOV204A Options:
- MSOV204A - DSOV000-100 - 100 Mpts/channel memory upgrade
- MSOV204A - DSOV000-200 - 200 Mpts/channel memory upgrade
- MSOV204A - DSOV000-500 - 500 Mpts/channel memory upgrade
- MSOV204A - DSOV000-01G - 1 Gpts/channel memory upgrade
- MSOV204A - DSOV000-02G - 2 Gpts/channel memory upgrade
- MSOV204A - DSOV000-810 - Hardware serial trigger upgrade
- MSOV204A - DSOV000-801 - 1 TB removable Solid State Drive (SSD) with Windows 7
- MSOV204A - DSOV000-805 - GPIB card-interface
- MSOV204A - DSOV000-808 - Performance verification and deskew fixture
- MSOV204A - N2117A - Stack mount kit option for stacking two frames
- MSOV204A - N5470A - Rack mount kit
- MSOV204A - DSOV000-A6J - ANSI Z540-1 compliant calibration
- MSOV204A - DSOV000-AMG - ACLASS Accreditation ANSI-ASQ National Accreditation Board, USA (calibration + uncertainties + guardbanding)
- MSOV204A - DSOV13GBW - Bandwidth upgrade to 13 GHz
- MSOV204A - DSOV16GBW - Bandwidth upgrade to 16 GHz
- MSOV204A - DSOV20GBWU - Bandwidth upgrade to 20 GHz
- MSOV204A - DSOV25GBWU - Bandwidth upgrade to 25 GHz
- MSOV204A - DSOV33GBWU - Bandwidth upgrade to 33 GHz
- MSOV204A - N2810A-100 - 50 Mpts/channel to 100 Mpts/channel memory upgrade
- MSOV204A - N2810A-200 - 100 Mpts/channel to 200 Mpts/channel memory upgrade
- MSOV204A - N2810A-500 - 200 Mpts/channel to 500 Mpts/channel memory upgrade
- MSOV204A - N2810A-01G - 500 Mpts/channel to 1 Gpts/channel memory upgrade
- MSOV204A - N2810A-02G - 1 Gpts/channel to 2 Gpts/channel memory upgrade
- MSOV204A - N2119AU - Hardware serial trigger upgrade
- MSOV204A - N2118AU - MSO upgrade
- MSOV204A - N8823A-1FP - EZJIT Complete jitter analysis (fixed license)
- MSOV204A - N8823A-1TP - EZJIT Complete jitter analysis (floating transportable license)
- MSOV204A - N5400A-1FP - EZJIT Plus jitter analysis (fixed license)
- MSOV204A - N5400A-1TP - EZJIT Plus jitter analysis (floating transportable license)
- MSOV204A - E2681A-1FP - EZJIT jitter analysis (fixed license)
- MSOV204A - E2681A-1TP - EZJIT jitter analysis (floating transportable license)
- MSOV204A - N8832A-001 - Frequency domain analysis
- MSOV204A - E2688A-1FP - High-speed SDA and clock recovery (fixed license)
- MSOV204A - E2688A-1TP - High-speed SDA and clock recovery (floating transportable license)
- MSOV204A - N5414B-1FP - InfiniiScan software triggering (fixed license)
- MSOV204A - N5414B-1TP - InfiniiScan software triggering (floating transportable license)
- MSOV204A - N5465A-1FP - InfiniiSim advanced signal de-embedding (fixed license)
- MSOV204A - N5465A-1TP - InfiniiSim advanced signal de-embedding (floating transportable license)
- MSOV204A - N5465A-3FP - InfiniiSim basic signal de-embedding (fixed license)
- MSOV204A - N5465A-3TP - InfiniiSim basic signal de-embedding (floating transportable license)
- MSOV204A - N8831A-001 - MATLAB - Basic digital analysis
- MSOV204A - N8831A-002 - MATLAB - Standard digital analysis
- MSOV204A - N8822A-1FP - MultiScope combining two oscilloscopes (fixed license)
- MSOV204A - N8822A-1TP - MultiScope combining two oscilloscopes (floating transportable license)
- MSOV204A - N2809A-1FP - PrecisionProbe calibration (fixed license)
- MSOV204A - N2809A-1TP - PrecisionProbe calibration (floating transportable license)
- MSOV204A - N5461A-1FP - Serial data equalization (fixed license)
- MSOV204A - N5461A-1TP - Serial data equalization (floating transportable license)
- MSOV204A - 64996A-1FP - Spectrum visualizer (fixed license)
- MSOV204A - 64996A-1TP - Spectrum visualizer (floating transportable license)
- MSOV204A - N5430A-1FP - User-defined function (fixed license)
- MSOV204A - N5430A-1TP - User-defined function (floating transportable license)
| Model | MSOV204A |
|---|
El osciloscopio Keysight MSOV204A de la serie V ofrece un ancho de banda analógico de 20 GHz, 4 canales analógicos y 16 digitales, muestreo de 80 GSa/s y 2 Gpts de memoria.
Con bajo ruido (1,54 mVrms), jitter de 100 fs, ENOB >5,5 y SFDR >50 dBC, ofrece gran precisión.
Testwall puede suministrar el Keysight MSOV204A usado, totalmente probado. Con soporte experto y entrega global, Testwall garantiza instrumentos de alto rendimiento con fiabilidad y calidad de servicio incomparables. Contáctenos para calibración o reparación del Keysight MSOV204A.
