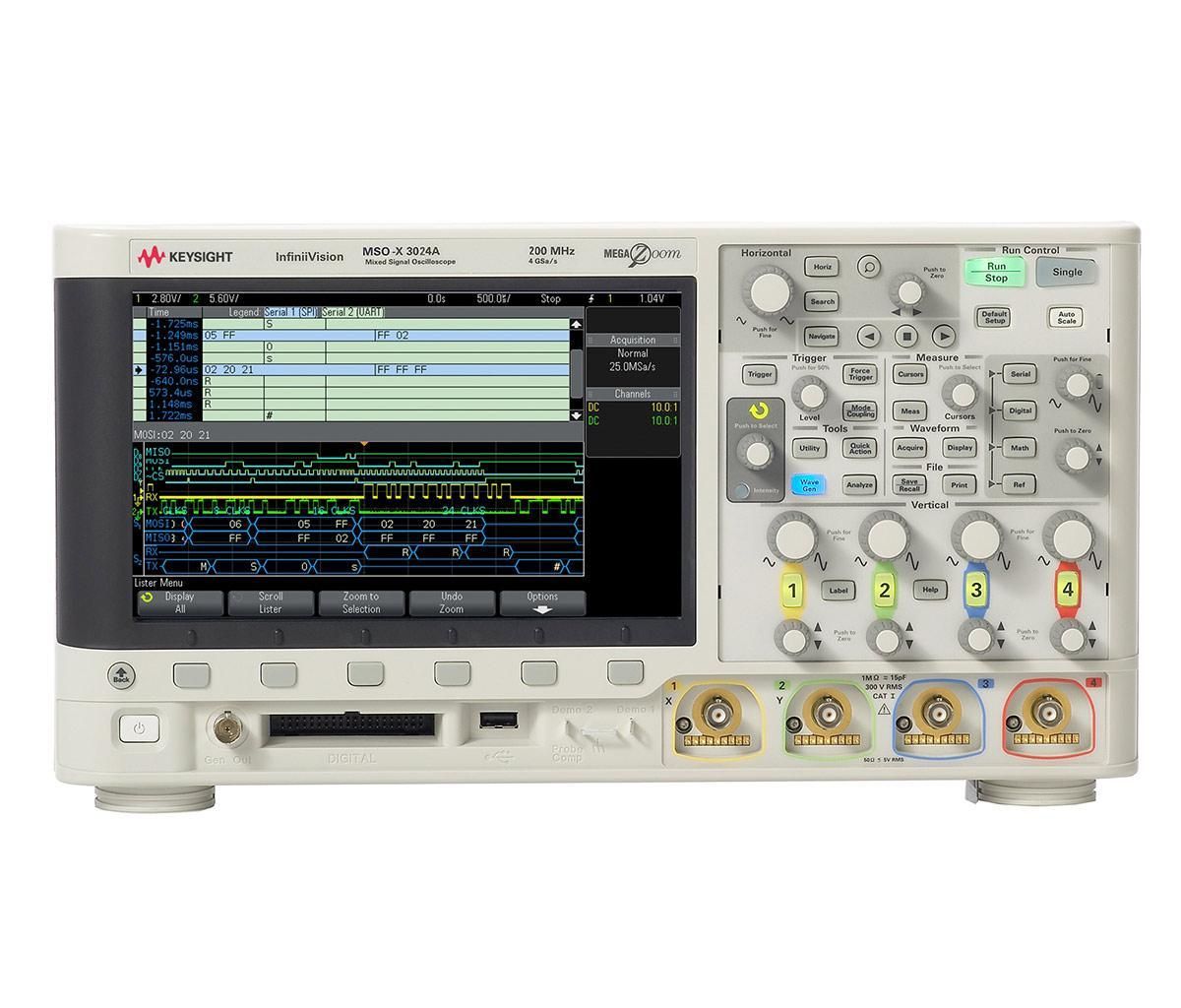

Keysight Technologies MSOX3024T
4 Ch 200 MHz Oscilloscope
200 MHz Ancho de banda
4 Número de canales analógicos
16 Canales digitales
5 GSa/s Frecuencia de muestreo máxima
4 Mpuntos Profundidad de memoria
| Atributo | Valor |
|---|---|
| Ancho de banda | 200 MHz |
| Número de canales analógicos | 4 |
| Canales digitales | 16 |
| Frecuencia de muestreo máxima | 5 GSa/s |
| Profundidad de memoria | 4 Mpuntos |
| Tamaño de pantalla | 8,5 pulgadas (WVGA) |
| Tasa de actualización de forma de onda | 1.000.000 formas de onda por segundo |
| Sensibilidad vertical | 1 mV/div a 10 V/div |
| Rango de tiempo base | 2 ns/div a 50 s/div |
| Interfaz de conectividad | USB, LAN (LXI), GPIB (opcional) |
Keysight Technologies MSOX3024T Options:
- MSOX3024T - DSOXT3MSO - MSO upgrade: Add 16 digital timing channels
- MSOX3024T - DSOX3EMBD - Embedded serial triggering and analysis (I²C, SPI)
- MSOX3024T - DSOX3COMP - Computer serial triggering and analysis (RS232/UART)
- MSOX3024T - DSOXT3SENSOR - Sensor triggering and analysis (SENT)
- MSOX3024T - DSOXT3AUTO - Automotive serial triggering and analysis (CAN/CAN-FD (CAN-FD ISO)/CAN-dbc/LIN/LIN symbolic)
- MSOX3024T - DSOXT3CXPI - CXPI serial triggering and analysis
- MSOX3024T - DSOX3FLEX - FlexRay serial triggering and analysis
- MSOX3024T - DSOX3AUDIO - Audio serial triggering and analysis (I²S)
- MSOX3024T - DSOX3AERO - MIL-STD 1553 and ARINC 429 serial triggering and analysis
- MSOX3024T - DSOXT3UPD - USB-PD serial triggering and analysis
- MSOX3024T - DSOXT3NRZ - User-definable Manchester/NRZ serial triggering and decode
- MSOX3024T - DSOX3WAVEGEN - WaveGen 20 MHz arbitrary/function generator
- MSOX3024T - DSOX3PWR - Power analysis application
- MSOX3024T - DSOXT3FRA - Frequency Response Analysis (FRA)
- MSOX3024T - DSOXT3NFC - Near field communication testing
- MSOX3024T - DSOX3MASK - Mask limit testing
- MSOX3024T - DSOX3VID - Enhanced video/TV application package
- MSOX3024T - DSOXT3APPBNDL - SW application bundle license (includes DSOX3AERO, DSOX3AUDIO, DSOXT3AUTO, DSOX3COMP, DSOX3EMBD, DSOX3FLEX, DSOX3MASK, DSOX3PWR, DSOXT3SENSOR, DSOX3VID, DSOX3WAVEGEN, DSOXT3NFC, DSOXT3CXPI, DSOXT3NRZ, DSOXT3FRA)
- MSOX3024T - DSOXT3B1T22 - License only 100 to 200 MHz bandwidth upgrade, 2 ch
- MSOX3024T - DSOXT3B1T24 - License only 100 to 200 MHz bandwidth upgrade, 4 ch
- MSOX3024T - DSOXT3B3T52 - License only 350 to 500 MHz bandwidth upgrade, 2 ch
- MSOX3024T - DSOXT3B3T54 - License only 350 to 500 MHz bandwidth upgrade, 4 ch
- MSOX3024T - DSOXT3B1T32U - Service center 100 to 350 MHz bandwidth upgrade, 2 ch
- MSOX3024T - DSOXT3B1T52U - Service center 100 to 500 MHz bandwidth upgrade, 2 ch
- MSOX3024T - DSOXT3B1T102U - Service center 100 to 1 GHz bandwidth upgrade, 2 ch
- MSOX3024T - DSOXT3B1T34U - Service center 100 to 350 MHz bandwidth upgrade, 4 ch
- MSOX3024T - DSOXT3B1T54U - Service center 100 to 500 MHz bandwidth upgrade, 4 ch
- MSOX3024T - DSOXT3B1T104U - Service center 100 to 1 GHz bandwidth upgrade, 4 ch
- MSOX3024T - DSOXT3B2T32U - Service center 200 to 350 MHz bandwidth upgrade, 2 ch
- MSOX3024T - DSOXT3B2T52U - Service center 200 to 500 MHz bandwidth upgrade, 2 ch
- MSOX3024T - DSOXT3B2T102U - Service center 200 MHz to 1 GHz bandwidth upgrade, 2 ch
- MSOX3024T - DSOXT3B2T34U - Service center 200 to 350 MHz bandwidth upgrade, 4 ch
- MSOX3024T - DSOXT3B2T54U - Service center 200 to 500 MHz bandwidth upgrade, 4 ch
- MSOX3024T - DSOXT3B2T104U - Service center 200 MHz to 1 GHz bandwidth upgrade, 4 ch
- MSOX3024T - DSOXT3B3T102U - Service center 350 MHz to 1 GHz bandwidth upgrade, 2 ch
- MSOX3024T - DSOXT3B3T104U - Service center 350 MHz to 1 GHz bandwidth upgrade, 4 ch
- MSOX3024T - DSOXT3B5T102U - Service center 500 MHz to 1 GHz bandwidth upgrade, 2 ch
- MSOX3024T - DSOXT3B5T104U - Service center 500 MHz to 1 GHz bandwidth upgrade, 4 ch
- MSOX3024T - DSOXLAN - LAN/VGA connection module
- MSOX3024T - DSOXGPIB - GPIB connection module
- MSOX3024T - D/MSOX3000T-A6J - ANSI Z540-1-1994 calibration
- MSOX3024T - D/MSOX3000T-AMG - ISO17025 compliant calibration with accreditation
| Model | MSOX3024T |
|---|
El Keysight MSOX3024T es un osciloscopio mixto de 200 MHz con 4 canales analógicos, 16 digitales, tasa de muestreo de 5 GSa/s y memoria segmentada. Cuenta con pantalla táctil capacitiva de 8,5", generador WaveGen y análisis de protocolos I²C, SPI, UART, CAN y LIN.
Ideal para ingenieros que necesitan herramientas avanzadas de depuración y capacidad de actualización.
Testwall puede suministrar el Keysight MSOX3024T usado, completamente probado. Con soporte experto y entrega global, garantizamos instrumentos confiables y de alto rendimiento. Contáctenos para servicios de calibración o reparación del Keysight MSOX3024T.
