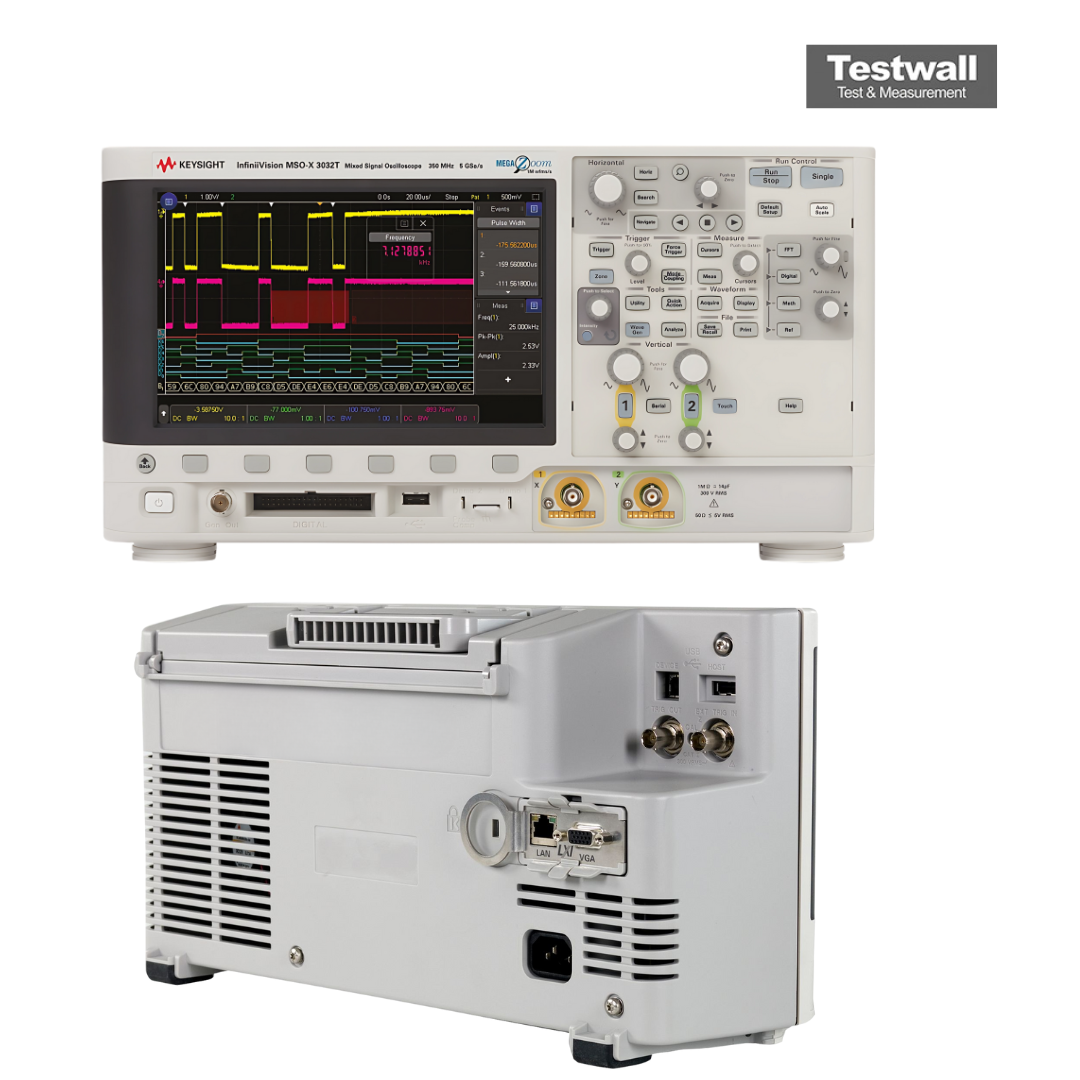

Keysight Technologies MSOX3032A
| Atributo | Valor |
|---|---|
| Ancho de banda | 300 MHz |
| Número de canales analógicos | 2 |
| Número de canales digitales | 16 |
| Frecuencia de muestreo máxima | 4 GSa/s |
| Profundidad de memoria | 4 Mpuntos |
| Tamaño de pantalla | 8,5 pulgadas WVGA |
| Tasa de actualización de forma de onda | 1.000.000 formas de onda por segundo |
| Resolución vertical | 8 bits |
| Rango de escala de tiempo | 1 ns/div a 50 s/div |
| Sensibilidad vertical | 1 mV/div a 5 V/div |
Keysight (Agilent) MSOX3032A Options:
- MSOX3032A - DSOX3MEMUP - Memory upgrade (standard 2 Mpts to 4 Mpts)
- MSOX3032A - DSOX3SGM - Segmented memory
- MSOX3032A - DSOX3MSO - MSO upgrade: add 16 digital timing channels (for 500 MHz and below models)
- MSOX3032A - DSOX3WAVEGEN - WaveGen built-in 20 MHz function/arbitrary waveform generator
- MSOX3032A - DSOXDVM - Integrated 3-digit digital voltmeter (DVM)
- MSOX3032A - DSOX3MASK - Mask limit testing
- MSOX3032A - DSOX3ADVMATH - Advanced waveform math
- MSOX3032A - DSOX3VID - Enhanced video/TV triggering and analysis
- MSOX3032A - DSOX3EMBD - Embedded serial triggering and analysis (I2C, SPI)
- MSOX3032A - DSOX3COMP - Computer serial triggering and analysis (RS232/422/485/UART)
- MSOX3032A - DSOX3AUDIO - Audio serial triggering and analysis (I2S)
- MSOX3032A - DSOX3AUTO - Automotive serial triggering and analysis (CAN, LIN)
- MSOX3032A - DSOX3FLEX - FlexRay serial triggering and analysis
- MSOX3032A - DSOX3AERO - Aerospace serial triggering and analysis (MIL-STD 1553, ARINC 429)
- MSOX3032A - DSOX3PWR - Power measurements and analysis
- MSOX3032A - DSOXEDK - Educator's oscilloscope training kit
- MSOX3032A - DSOX3BW24 - Bandwidth upgrade: 100 MHz to 200 MHz, 4 ch, License only
- MSOX3032A - DSOX3BW52 - Bandwidth upgrade: 350 MHz to 500 MHz, 2 ch, License only
- MSOX3032A - DSOX3BW54 - Bandwidth upgrade: 350 MHz to 500 MHz, 4 ch, License only
- MSOX3032A - DSOX3BW32 - Bandwidth upgrade: 100 MHz to 350 MHz, 2 ch, Service center
- MSOX3032A - DSOX3BW34 - Bandwidth upgrade: 200 MHz to 350 MHz, 4 ch, Service center
- MSOX3032A - DSOX3BW12 - Bandwidth upgrade: 500 MHz to 1 GHz, 2 ch, Service center
- MSOX3032A - DSOX3BW14 - Bandwidth upgrade: 500 MHz to 1 GHz, 4 ch, Service center
- MSOX3032A - DSOXLAN - LAN/VGA connection module
- MSOX3032A - DSOXGPIB - GPIB connection module
| Model | MSOX3032A |
|---|
El Keysight (Agilent) MSOX3032A combina un ancho de banda de 350 MHz, 2 canales analógicos y 16 digitales, pantalla WVGA de 8,5 pulgadas y memoria de 4 Mpts, ofreciendo un alto rendimiento. Con 1.000.000 formas de onda/s de tasa de actualización, revela cada detalle de la señal y permite una actualización completa.
Incluye voltímetro de 3 dígitos y contador de frecuencia de 5 dígitos, siempre visibles. La funcionalidad 5-en-1 garantiza una excelente relación calidad-precio y protección de inversión.
Testwall puede suministrar el Keysight (Agilent) MSOX3032A usado, totalmente probado. Con soporte experto y entrega global, Testwall ofrece instrumentación de alto rendimiento con fiabilidad excepcional. Contáctenos si necesita calibración o reparación del Keysight (Agilent) MSOX3032A.
