Keysight (Agilent)

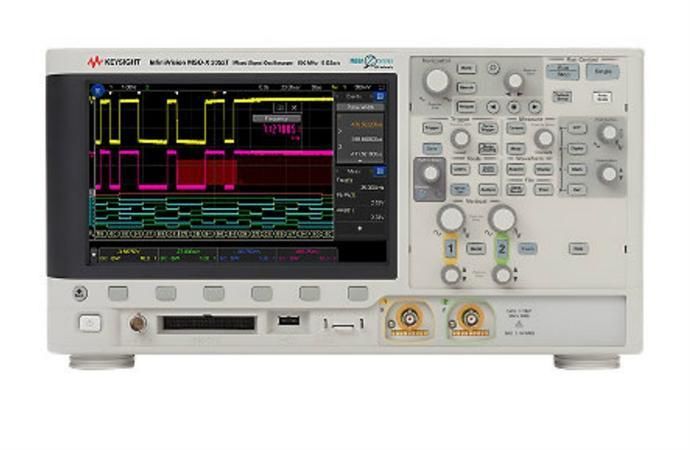

Keysight Technologies MSOX3052T
500 MHz, 2 Analog Channels, 16 Digital Channels
500 MHz Ancho de banda
2 canales Número de canales analógicos
16 canales digitales (MSO) Canales digitales
4 GSa/s Tasa de muestreo máxima
4 Mpuntos Profundidad de memoria
| Atributo | Valor |
|---|---|
| Ancho de banda | 500 MHz |
| Número de canales analógicos | 2 canales |
| Canales digitales | 16 canales digitales (MSO) |
| Tasa de muestreo máxima | 4 GSa/s |
| Profundidad de memoria | 4 Mpuntos |
| Tamaño de pantalla | 8,5 pulgadas WVGA (800 x 480 píxeles) |
| Tasa de actualización de forma de onda | 1.000.000 formas de onda por segundo |
| Rango de escala vertical | 1 mV/div a 5 V/div |
| Ancho de banda del sistema de disparo | 500 MHz |
| Conectividad | USB, LAN (LXI), puerto para módulo GPIB opcional |
Keysight (Agilent) MSOX3052T Options:
- MSOX3052T - DSOXT3MSO - MSO upgrade: add 16 digital timing channels
- MSOX3052T - DSOX3EMBD - Embedded serial triggering and analysis (I²C, SPI)
- MSOX3052T - DSOX3COMP - Computer serial triggering and analysis (RS232/UART)
- MSOX3052T - DSOXT3SENSOR - Sensor triggering and analysis (SENT)
- MSOX3052T - DSOXT3AUTO - Automotive serial triggering and analysis (CAN/CAN-FD/CAN-dbc/LIN/LIN symbolic)
- MSOX3052T - DSOX3FLEX - FlexRay serial triggering and analysis
- MSOX3052T - DSOX3AUDIO - Audio serial triggering and analysis (I²S)
- MSOX3052T - DSOX3AERO - MIL-STD 1553 and ARINC 429 serial triggering and analysis
- MSOX3052T - DSOX3WAVEGEN - WaveGen 20 MHz arbitrary/function generator
- MSOX3052T - DSOXT3DVMCTR - Integrated digital voltmeter and 8-digit counter
- MSOX3052T - DSOX3PWR - Power analysis application
- MSOX3052T - DSOX3MASK - Mask limit testing
- MSOX3052T - DSOX3VID - Enhanced video/TV application package
- MSOX3052T - DSOXEDK - Education and training kit
- MSOX3052T - DSOXT3APPBNDL - SW application bundle license (includes DSOX3AERO, DSOX3AUDIO, DSOXT3AUTO, DSOX3COMP, DSOX3EMBD, DSOX3FLEX, DSOX3MASK, DSOX3PWR, DSOXT3SENSOR, DSOX3VID, DSOX3WAVEGEN, DSOXT3DVMCTR, DSOXEDK)
- MSOX3052T - DSOXT3B1T22 - License only 100MHz to 200MHz upgrade, 2ch
- MSOX3052T - DSOXT3B3T52 - License only 350MHz to 500MHz upgrade, 2ch
- MSOX3052T - DSOXT3B1T32U - Service center 100MHz to 350MHz upgrade, 2ch
- MSOX3052T - DSOXT3B1T52U - Service center 100MHz to 500MHz upgrade, 2ch
- MSOX3052T - DSOXT3B1T102U - Service center 100MHz to 1GHz upgrade, 2ch
- MSOX3052T - DSOXT3B2T32U - Service center 200MHz to 350MHz upgrade, 2ch
- MSOX3052T - DSOXT3B2T52U - Service center 200MHz to 500MHz upgrade, 2ch
- MSOX3052T - DSOXT3B2T102U - Service center 200MHz to 1GHz upgrade, 2ch
- MSOX3052T - DSOXT3B3T102U - Service center 350MHz to 1GHz upgrade, 2ch
- MSOX3052T - DSOXT3B5T102U - Service center 500MHz to 1GHz upgrade, 2ch
- MSOX3052T - DSOXLAN - LAN/VGA connection module
- MSOX3052T - DSOXGPIB - GPIB connection module
| Model | MSOX3052T |
|---|
El Keysight (Agilent) MSOX3052T ofrece 500 MHz de ancho de banda con 2 canales analógicos y 16 digitales para análisis avanzados de señales mixtas sin hardware adicional.
Incluye decodificación de bus serie, análisis FFT y pruebas de máscara, con gran profundidad de memoria para capturas detalladas.
Testwall puede suministrar el Keysight (Agilent) MSOX3052T usado, completamente probado. Con soporte experto y entrega global, Testwall asegura instrumentos de alto rendimiento con fiabilidad y calidad de servicio inigualables. Contáctenos para calibración o reparación del Keysight (Agilent) MSOX3052T.
