Keysight (Agilent)

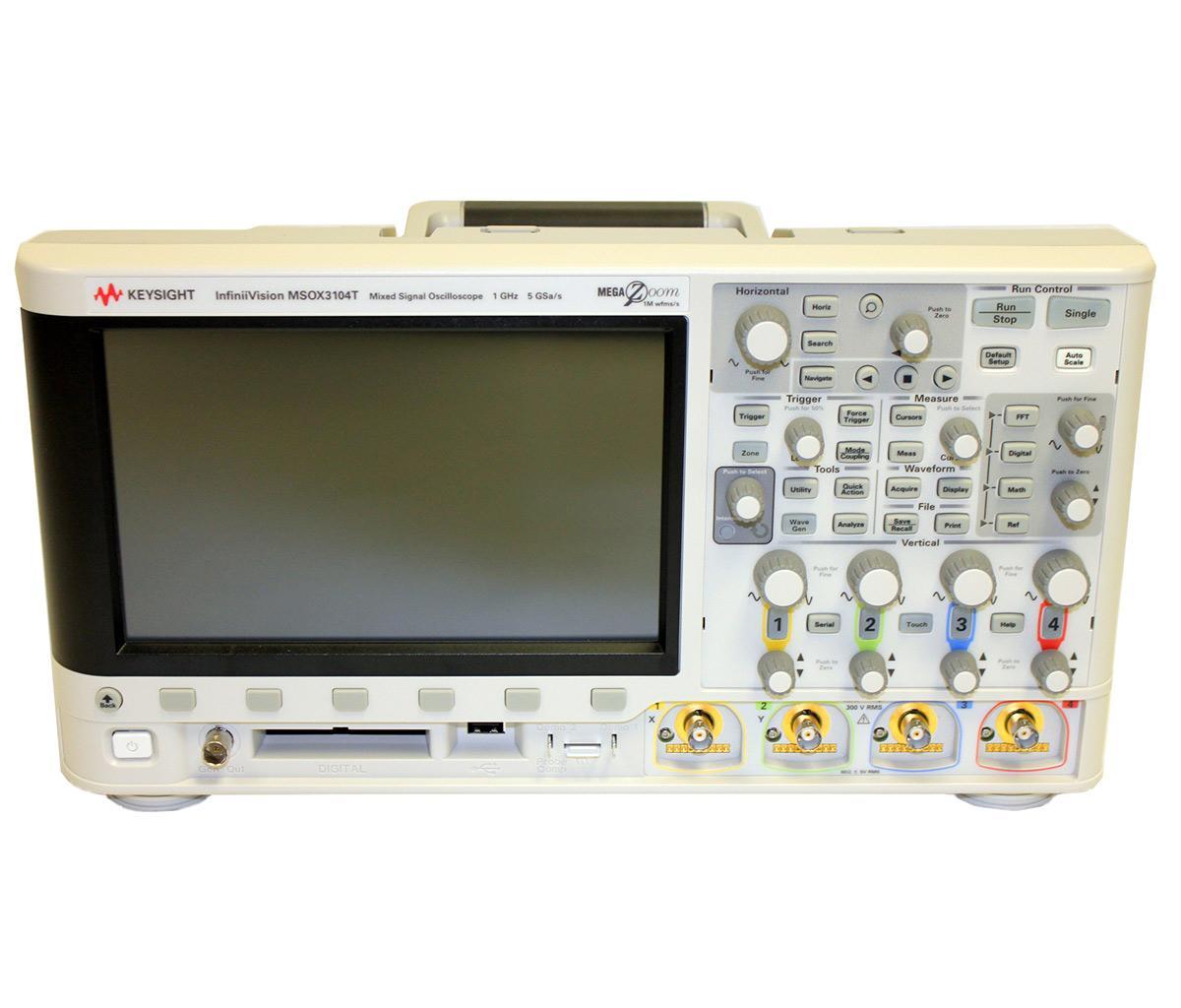

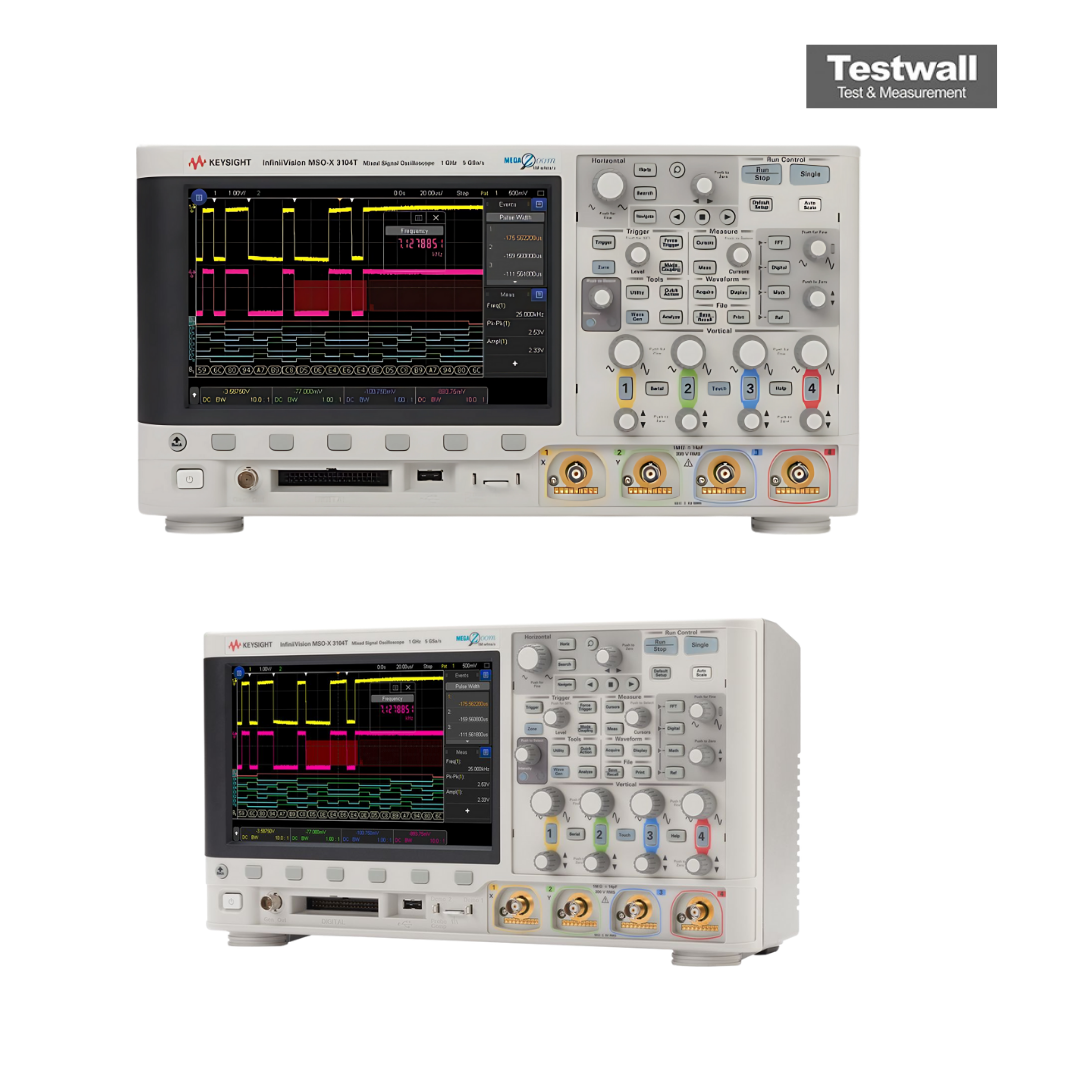

Keysight Technologies MSOX3104T
1GHz, 4+16 channel MSO with capacitive touchscreen
1 GHz Ancho de banda
4 Número de canales analógicos
16 Canales digitales
5 GSa/s Frecuencia de muestreo máxima
4 Mpuntos Profundidad de memoria
| Atributo | Valor |
|---|---|
| Ancho de banda | 1 GHz |
| Número de canales analógicos | 4 |
| Canales digitales | 16 |
| Frecuencia de muestreo máxima | 5 GSa/s |
| Profundidad de memoria | 4 Mpuntos |
| Tamaño de pantalla | 8,5 pulgadas (capacitiva táctil) |
| Tasa de actualización de forma de onda | 1.000.000 formas de onda por segundo |
| Resolución vertical | 8 bits |
| Sensibilidad vertical | 1 mV/div a 5 V/div |
| Ancho de banda del sistema de disparo | 1 GHz |
Keysight Technologies MSOX3104T Options:
- MSOX3104T - DSOXT3MSO - MSO upgrade: Add 16 digital timing channels (N2756A MSO cable delivered separately)
- MSOX3104T - DSOX3EMBD - Embedded serial triggering and analysis (I²C, SPI)
- MSOX3104T - DSOX3COMP - Computer serial triggering and analysis (RS232/UART)
- MSOX3104T - DSOXT3SENSOR - Sensor triggering and analysis (SENT)
- MSOX3104T - DSOXT3AUTO - Automotive serial triggering and analysis (CAN/CAN-FD (CAN-FD ISO)/CAN-dbc/LIN/LIN symbolic)
- MSOX3104T - DSOXT3CXPI - CXPI serial triggering and analysis
- MSOX3104T - DSOX3FLEX - FlexRay serial triggering and analysis
- MSOX3104T - DSOX3AUDIO - Audio serial triggering and analysis (I²S)
- MSOX3104T - DSOX3AERO - MIL-STD 1553 and ARINC 429 serial triggering and analysis
- MSOX3104T - DSOXT3UPD - USB-PD serial triggering and analysis
- MSOX3104T - DSOXT3NRZ - User-definable Manchester/NRZ serial triggering and decode
- MSOX3104T - DSOX3WAVEGEN - WaveGen 20 MHz arbitrary/function generator
- MSOX3104T - DSOX3PWR - Power analysis application
- MSOX3104T - DSOXT3FRA - Frequency Response Analysis (FRA)
- MSOX3104T - DSOXT3NFC - Near field communication testing
- MSOX3104T - DSOX3MASK - Mask limit testing
- MSOX3104T - DSOX3VID - Enhanced video/TV application package
- MSOX3104T - DSOXT3APPBNDL - SW application bundle license (includes DSOX3AERO, DSOX3AUDIO, DSOXT3AUTO, DSOX3COMP, DSOX3EMBD, DSOX3FLEX, DSOX3MASK, DSOX3PWR, DSOXT3SENSOR, DSOX3VID, DSOX3WAVEGEN, DSOXT3NFC, DSOXT3CXPI, DSOXT3NRZ, DSOXT3FRA)
- MSOX3104T - DSOXT3B5T102U - Service center 500 MHz to 1 GHz upgrade, 2 ch
- MSOX3104T - DSOXT3B5T104U - Service center 500 MHz to 1 GHz upgrade, 4 ch
- MSOX3104T - DSOXLAN - LAN/VGA connection module
- MSOX3104T - DSOXGPIB - GPIB connection module
- MSOX3104T - D/MSOX3000T-A6J - ANSI Z540-1-1994 calibration
- MSOX3104T - D/MSOX3000T-AMG - ISO17025 compliant calibration with accreditation
| Model | MSOX3104T |
|---|
El osciloscopio mixto Keysight (Agilent) MSOX3104T proporciona un análisis superior con 1 GHz de ancho de banda, 4 canales analógicos y 16 digitales, y resolución de hasta 12 bits. La tecnología MegaZoom IV permite una captura rápida y detallada. Incluye puertos USB integrados y sondas pasivas robustas.
Ideal para pruebas de depuración avanzadas y análisis de integridad de señales, con interfaz táctil y capacidades de análisis serie.
Testwall puede suministrar el Keysight (Agilent) MSOX3104T usado, completamente probado. Con soporte experto y entrega global, Testwall garantiza instrumentos de alto rendimiento y servicio confiable. Contáctenos para calibración o reparación del Keysight (Agilent) MSOX3104T.
