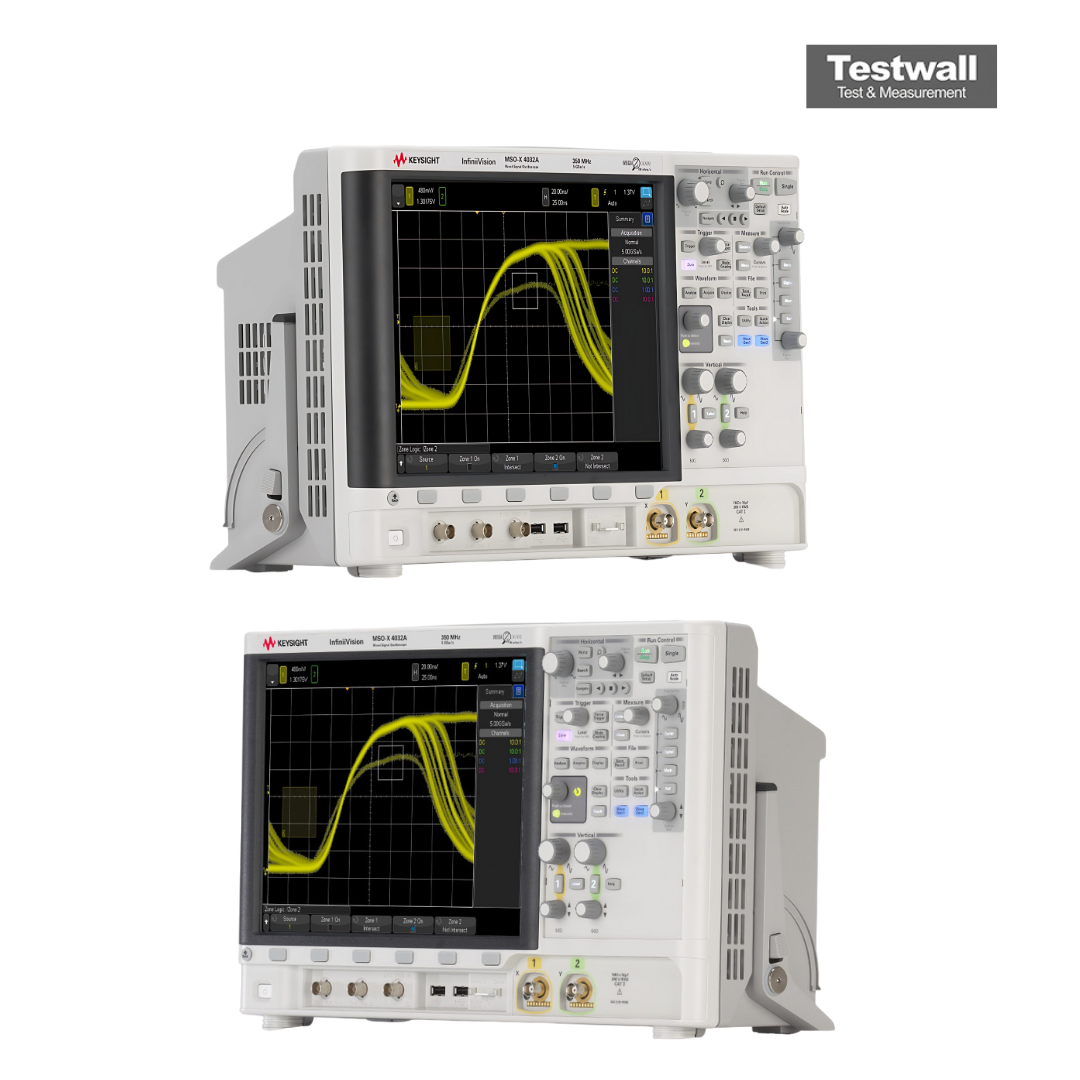

Keysight Technologies MSOX4032A
| Atributo | Valor |
|---|---|
| Ancho de banda | 350 MHz |
| Número de canales analógicos | 2 |
| Número de canales digitales | 16 |
| Frecuencia de muestreo máxima | 5 GSa/s |
| Profundidad de memoria | 4 Mpts (estándar) |
| Tamaño de pantalla | 8,5 pulgadas WVGA (800 x 480 píxeles) |
| Tasa de actualización de forma de onda | 1.000.000 formas de onda por segundo |
| Rango de escala vertical | 1 mV/div a 5 V/div |
| Impedancia de entrada | 1 MΩ en paralelo con 13 pF |
| Interfaz de conectividad | USB, LAN (LXI), GPIB (opcional) |
Keysight (Agilent) MSOX4032A Options:
- MSOX4032A - DSOX4EMBD - Embedded serial triggering and decode (I²C, SPI)
- MSOX4032A - DSOX4COMP - Computer serial triggering and decode (RS232/UART)
- MSOX4032A - DSOX4USBFL - USB 2.0 Full/Low Speed serial triggering and decode
- MSOX4032A - DSOX4USBH - USB 2.0 Hi-Speed serial triggering and decode (1 GHz and 1.5 GHz models only)
- MSOX4032A - DSOX4AUTO - Automotive serial triggering and decode (CAN/CAN-dbc/LIN)
- MSOX4032A - DSOX4FLEX - FlexRay serial triggering and decode
- MSOX4032A - DSOX4AUDIO - Audio serial triggering and decode (I²S)
- MSOX4032A - DSOX4AERO - Aerospace and defence serial triggering and decode (MIL-STD 1553, ARINC 429)
- MSOX4032A - DSOX4WAVEGEN2 - Dual-channel WaveGen 20 MHz arbitrary/function generator
- MSOX4032A - DSOXDVM - 3-digit voltmeter (DVM)
- MSOX4032A - DSOX4PWR - Power analysis application
- MSOX4032A - DSOX4MASK - Mask limit testing
- MSOX4032A - DSOX4VID - Enhanced video/TV application package
- MSOX4032A - DSOX4FPGAX - FPGA dynamic probe option for Xilinx
- MSOX4032A - DSOX4USBSQ - USB 2.0 signal quality test option
- MSOX4032A - DSOXEDK - Education training kit
- MSOX4032A - DSOXPERFMSO - 4000 X-Series oscilloscope MSO upgrade
- MSOX4032A - DSOX4B3T52U - Bandwidth upgrade 350 MHz to 500 MHz, 2 ch (License Only)
- MSOX4032A - DSOX4B2T32U - Bandwidth upgrade 200 MHz to 350 MHz, 2 ch (Service Center)
- MSOX4032A - DSOX4B2T52U - Bandwidth upgrade 200 MHz to 500 MHz, 2 ch (Service Center)
- MSOX4032A - DSOX4B2T104U - Bandwidth upgrade 200 MHz to 1 GHz, 4 ch (Service Center)
- MSOX4032A - DSOX4B2T154U - Bandwidth upgrade 200 MHz to 1.5 GHz, 4 ch (Service Center)
- MSOX4032A - DSOX4B3T104U - Bandwidth upgrade 350 MHz to 1 GHz, 4 ch (Service Center)
- MSOX4032A - DSOX4B3T154U - Bandwidth upgrade 350 MHz to 1.5 GHz, 4 ch (Service Center)
- MSOX4032A - DSOX4B5T154U - Bandwidth upgrade 500 MHz to 1.5 GHz, 4 ch (Service Center)
- MSOX4032A - N8900A - Infiniium Offline oscilloscope analysis software
- MSOX4032A - 64997A - Keysight spectrum visualizer (KSV)
- MSOX4032A - 89601B - Vector signal analyzer software (version 16 and higher)
- MSOX4032A - 33503A - BenchLink waveform builder pro and basic
| Model | MSOX4032A |
|---|
El osciloscopio Keysight (Agilent) MSOX4032A ofrece un ancho de banda de 350 MHz, 2 canales analógicos y 16 digitales, y una pantalla táctil capacitiva de 12,1 pulgadas con disparo táctil InfiniiScan Zone. Alcanza una tasa de actualización de 1.000.000 wfms/s gracias a la tecnología MegaZoom IV. Admite ampliación completa, memoria segmentada, captura profunda de 4 Mpts y análisis avanzado.
Diseñado para visualizar señales complejas, el MSOX4032A facilita la depuración con disparo mejorado e interfaz multilingüe. Incluye sondas, cable MSO y documentación.
Testwall puede suministrar el Keysight (Agilent) MSOX4032A usado, completamente probado. Con soporte experto y entrega global, Testwall garantiza instrumentos de alto rendimiento con fiabilidad y calidad de servicio inigualables. Contáctenos directamente si necesita calibración o reparación del Keysight (Agilent) MSOX4032A.
