Keysight (Agilent)

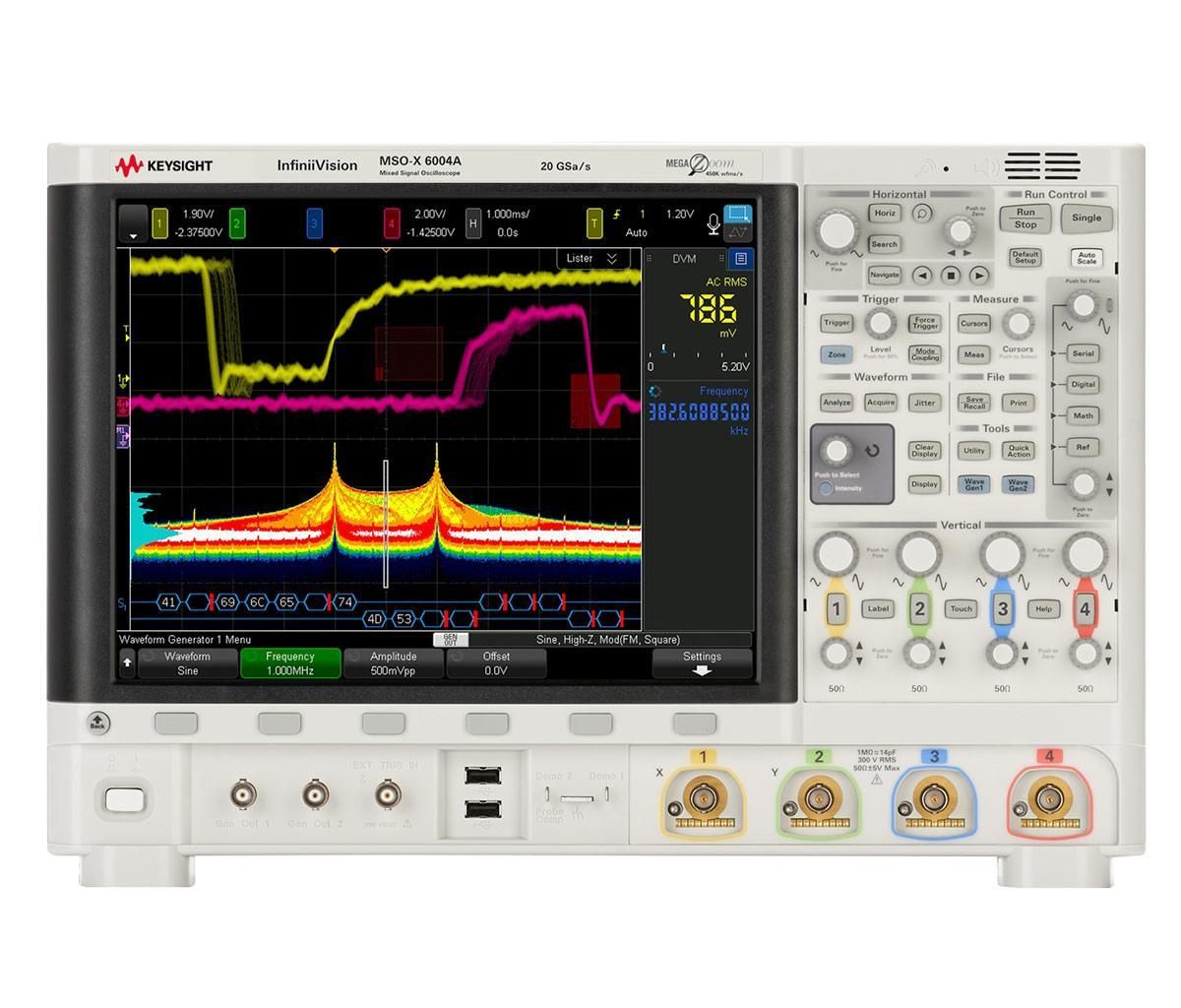

Keysight Technologies MSOX6004A
Mixed Signal Oscilloscope 6GHz, 20 GS/s, 4 Channel
1 GHz Ancho de banda
4 canales Número de canales analógicos
16 canales digitales (MSO) Canales digitales
5 GSa/s Tasa de muestreo máxima
4 Mpuntos estándar (hasta 1 Gpunto opcional) Profundidad de memoria
| Atributo | Valor |
|---|---|
| Ancho de banda | 1 GHz |
| Número de canales analógicos | 4 canales |
| Canales digitales | 16 canales digitales (MSO) |
| Tasa de muestreo máxima | 5 GSa/s |
| Profundidad de memoria | 4 Mpuntos estándar (hasta 1 Gpunto opcional) |
| Pantalla | Pantalla táctil capacitiva de 12,1 pulgadas WXGA |
| Tasa de actualización de forma de onda | Hasta 1.000.000 formas de onda por segundo |
| Resolución vertical | 8 bits (hasta 16 bits en modo de alta resolución) |
| Rango de escala de tiempo | 2 ns/div a 20 s/div |
| Conectividad e interfaces | USB, LAN (LXI), GPIB opcional, salida de pantalla DisplayPort |
Keysight Technologies MSOX6004A Options:
- MSOX6004A - DSOX6B10T254BW - 1.0 to 2.5 GHz bandwidth upgrade, 4 ch, fixed perpetual license
- MSOX6004A - DSOX6B10T404BW - 1.0 to 4.0 GHz bandwidth upgrade, 4 ch, fixed perpetual license
- MSOX6004A - DSOX6B10T604BW - 1.0 to 6.0 GHz bandwidth upgrade, 4 ch, fixed perpetual license
- MSOX6004A - DSOX6B25T404BW - 2.5 to 4.0 GHz bandwidth upgrade, 4 ch, fixed perpetual license
- MSOX6004A - DSOX6B25T604BW - 2.5 to 6.0 GHz bandwidth upgrade, 4 ch, fixed perpetual license
- MSOX6004A - DSOX6B40T604BW - 4.0 to 6.0 GHz bandwidth upgrade, 4 ch, fixed perpetual license
- MSOX6004A - DSOX6APPBNDL - Software application bundle (includes DSOX6EMBD, DSOX6COMP, DSOX6USBFL, DSOX6USBH, DSOX6AUTO, DSOX6FLEX, DSOX6AUDIO, DSOX6AERO, DSOX6JITTER, DSOX6WAVEGEN2, DSOX6PWR, DSOX6MASK, DSOX6USBSQ, DSOX6VID, DSOX6SENSOR, DSOX6CXPI, DSOX6NRZ, DSOX6FRA)
- MSOX6004A - DSOX6AERO - MIL-STD 1553 and ARINC 429 serial triggering and analysis
- MSOX6004A - DSOX6AUDIO - Audio serial triggering and analysis (I2S)
- MSOX6004A - DSOX6AUTO - Automotive serial triggering and analysis (CAN, CAN-dbc, CAN-FD, LIN)
- MSOX6004A - DSOX6COMP - Computer serial triggering and analysis (RS232/UART)
- MSOX6004A - DSOX6EMBD - Embedded serial triggering and analysis (I2C, SPI)
- MSOX6004A - DSOX6FLEX - FlexRay serial triggering and analysis
- MSOX6004A - DSOX6SENSOR - SENT (Single Edge Nibble Transmission) triggering and analysis
- MSOX6004A - DSOX6CXPI - CXPI triggering and decode
- MSOX6004A - DSOX6USBFL - USB 2.0 Full/Low Speed serial decode and triggering
- MSOX6004A - DSOX6USBH - USB 2.0 Hi-Speed serial decode and triggering
- MSOX6004A - DSOX6UPD - USB PD serial decode and triggering
- MSOX6004A - DSOX6NRZ - User-definable Manchester/NRZ triggering and decode
- MSOX6004A - DSOX6JITTER - Jitter and real time eye diagram analysis
- MSOX6004A - DSOX6MASK - Mask limit testing
- MSOX6004A - DSOX6FRA - Frequency Response Analysis (FRA)
- MSOX6004A - DSOX6PWR - Power analysis application
- MSOX6004A - DSOX6USBSQ - USB 2.0 signal quality test
- MSOX6004A - DSOX6VID - Enhanced video/TV application package
- MSOX6004A - DSOX6WAVEGEN2 - Dual channel WaveGen 20 MHz AWG
- MSOX6004A - DSOX6MSO - InfiniiVision 6000 X-Series oscilloscope MSO upgrade
- MSOX6004A - N8900A - Infiniium offline oscilloscope analysis software
- MSOX6004A - N5467B/C - User-defined Application (UDA) PC software
- MSOX6004A - BV0004B - BenchVue oscilloscopes application
| Model | MSOX6004A |
|---|
El osciloscopio mixto Keysight (Agilent) MSOX6004A proporciona ancho de banda de 6 GHz, pantalla multitáctil de 12,1″ y una tasa de actualización de 450 000 formas de onda/s, garantizando fidelidad de señal y depuración en tiempo real.
Incluye un DVM de 3 dígitos integrado, opción de análisis de jitter y bajo nivel de ruido de 210 µVrms a 1 mV/div, ideal para captar eventos poco frecuentes.
Testwall can supply the used Keysight (Agilent) MSOX6004A, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) MSOX6004A.
