Keysight (Agilent)
Keysight (Agilent) N5245B-219

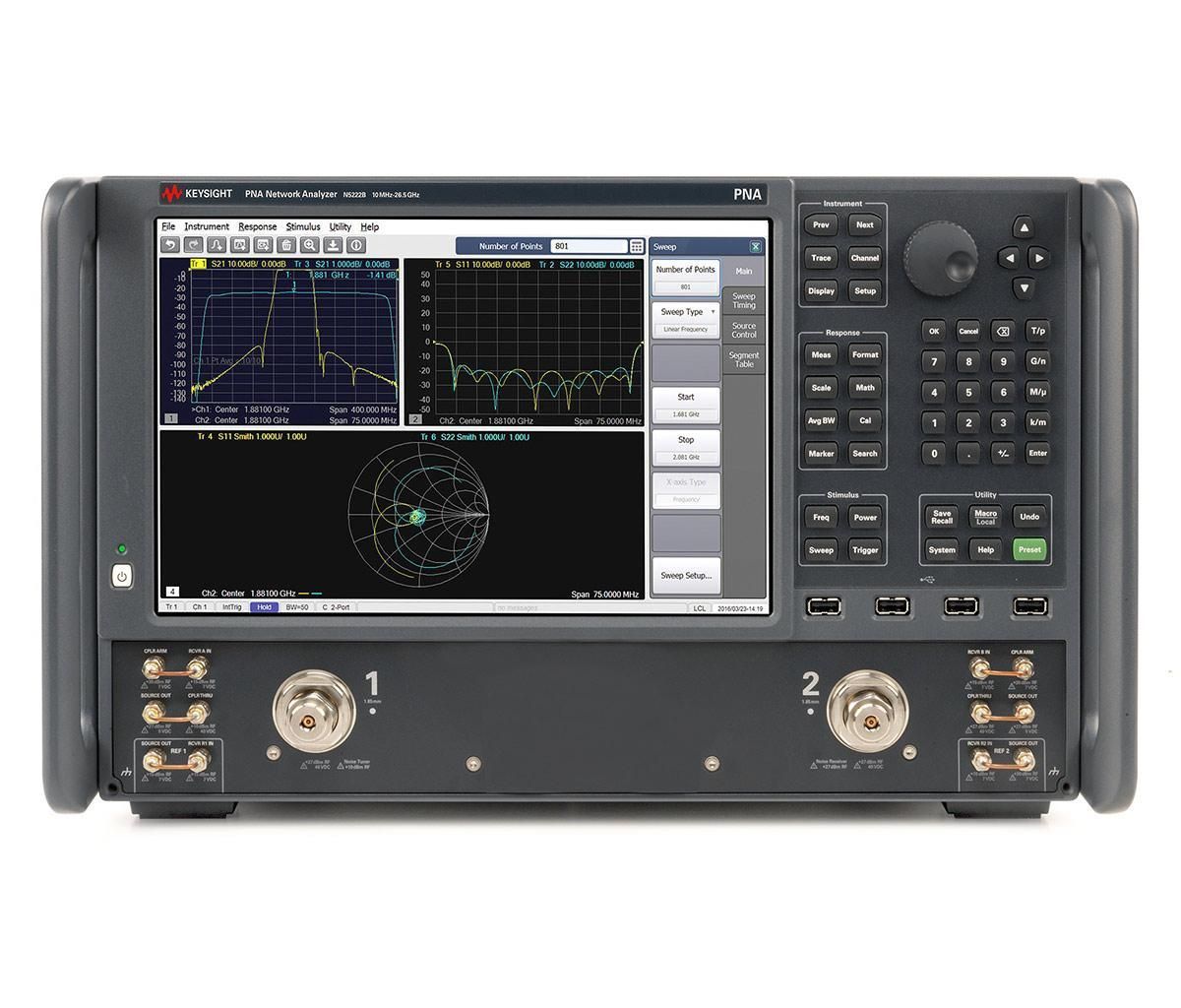

Analizador de redes PNA-X de 2 puertos, 10 MHz – 50 GHz, opción 219 (imagen orientativa)
de 10 MHz a 50 GHz Rango de frecuencia
2 puertos Número de puertos
135 dB (espec.), 142 dB (típ.) Rango dinámico
max. +13 dBm Rango de potencia de salida
Opción 219: test set configurable (bucles de acceso en el panel frontal), atenuadores escalonados de fuente (rango de potencia ampliado), atenuadores escalonados de receptor, bias tees integrados Configuración
| Atributo | Valor |
|---|---|
| Rango de frecuencia | de 10 MHz a 50 GHz |
| Número de puertos | 2 puertos |
| Rango dinámico | 135 dB (espec.), 142 dB (típ.) |
| Rango de potencia de salida | max. +13 dBm |
| Configuración | Opción 219: test set configurable (bucles de acceso en el panel frontal), atenuadores escalonados de fuente (rango de potencia ampliado), atenuadores escalonados de receptor, bias tees integrados |
| Fuentes internas | 1 |
| Impedancia | 50 Ω |
| Tipo de conector | 2,4 mm macho |
| Ancho de banda de FI | 1 Hz … 15 MHz |
| Número de puntos | max. 100.003 |
| Parámetros de medida | parámetros S, figura de ruido (opc.), compresión de ganancia, IMD, ruido de fase (opc.), RF pulsada |
| Pantalla | 12,1" LCD, 1280×800, táctil |
| Interfaces | LAN, 2× GPIB, USB, HiSLIP |
| Serie | PNA-X |
Keysight (Agilent) N5245B-219 Options:
- N5245B - 029 - Adds hardware and firmware for high-accuracy noise figure measurements (requires one of Option 22x or 42x)
- N5245B - 201 - 2-port standard test set (includes six front-panel access loops) and power range
- N5245B - 217 - 2-port standard test set (includes six front-panel access loops), power range, and source and receiver attenuators (extended power range)
- N5245B - 219 - 2-port standard test set (includes six front-panel access loops), power range, source and receiver attenuators (extended power range), and bias-tees
- N5245B - 222 - 2-port standard test set (includes six front-panel access loops), power range, source and receiver attenuators (extended power range), internal second source, a combiner, and mechanical switches to the 2-port analyzer
- N5245B - 224 - 2-port standard test set (includes six front-panel access loops), power range, source and receiver attenuators (extended power range), internal second source, a combiner, mechanical switches to the 2-port analyzer, and bias tees
- N5245B - 401 - 4-port standard test set (includes twelve front-panel access loops), power range, and an internal second source (Option 080 recommended)
- N5245B - 417 - 4-port standard test set (includes twelve front-panel access loops), power range, internal second source (Option 080 recommended), and source and receiver attenuators (extended power range)
- N5245B - 419 - 4-port standard test set (includes twelve front-panel access loops), power range, internal second source (Option 080 recommended), and source and receiver attenuators (extended power range), and bias-tees
- N5245B - 422 - 4-port standard test set (includes six front-panel access loops), power range, source and receiver attenuators (extended power range), internal second source, a combiner, and mechanical switches to the 4-port analyzer
- N5245B - 423 - 4-port standard test set (includes six front-panel access loops), power range, source and receiver attenuators (extended power range), internal second source, a combiner, mechanical switches to the 4-port analyzer, and bias tees
- N5245B - H85 - Standard configuration (N5245BS model variant)
El Keysight (Agilent) N5245B-219 es un analizador de redes vectorial de la serie PNA-X de 2 puertos que cubre de 10 MHz a 50 GHz. Configuración de la opción 219: test set configurable (bucles de acceso en el panel frontal), atenuadores escalonados de fuente (rango de potencia ampliado), atenuadores escalonados de receptor, bias tees integrados.
Testwall puede suministrar el Keysight (Agilent) N5245B-219 usado, totalmente probado. Con soporte experto y entrega global, Testwall garantiza instrumentación de alto rendimiento con una fiabilidad y calidad de servicio inigualables. Póngase en contacto con nosotros si necesita la calibración o reparación del Keysight (Agilent) N5245B-219.
