Keysight (Agilent)

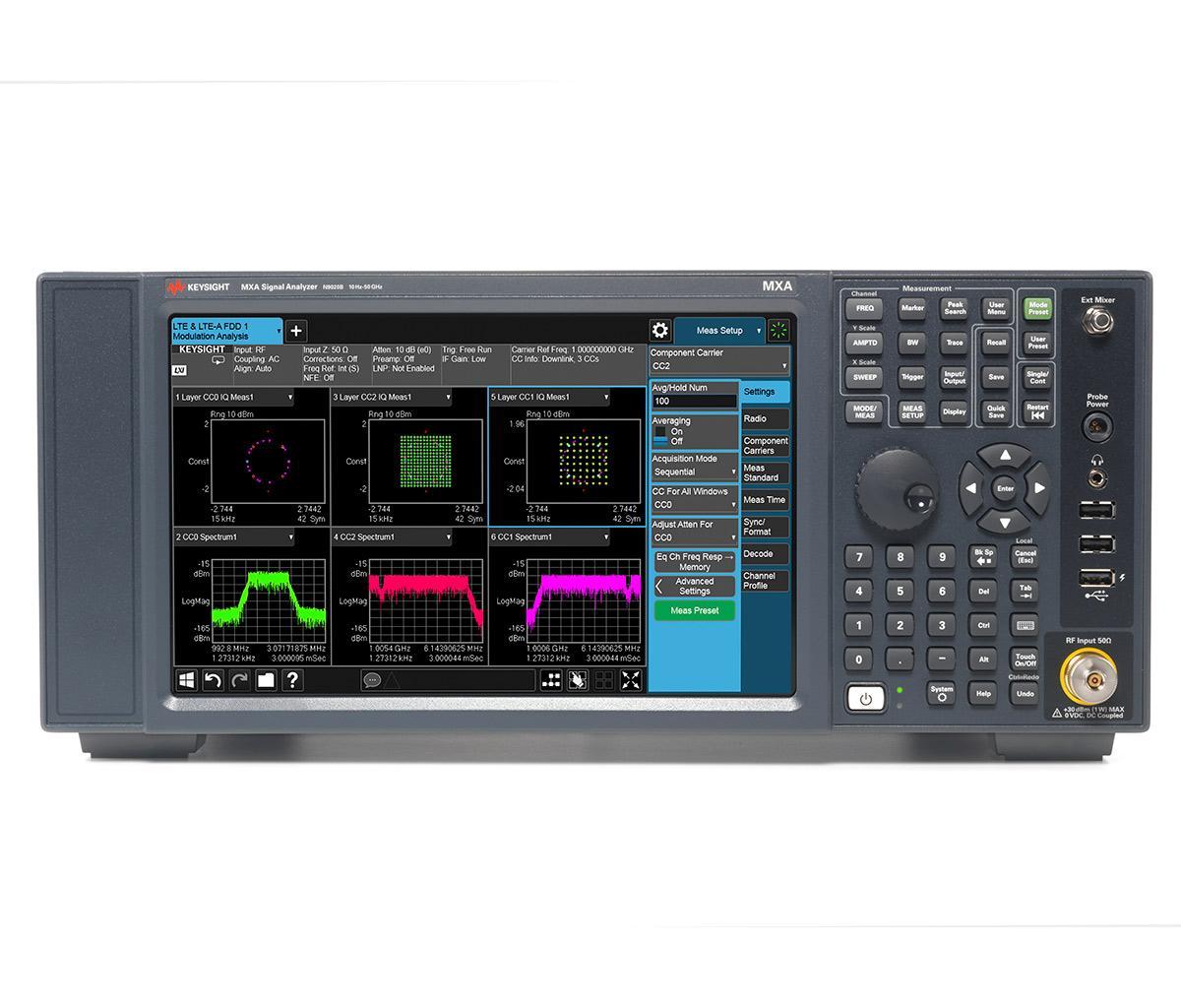

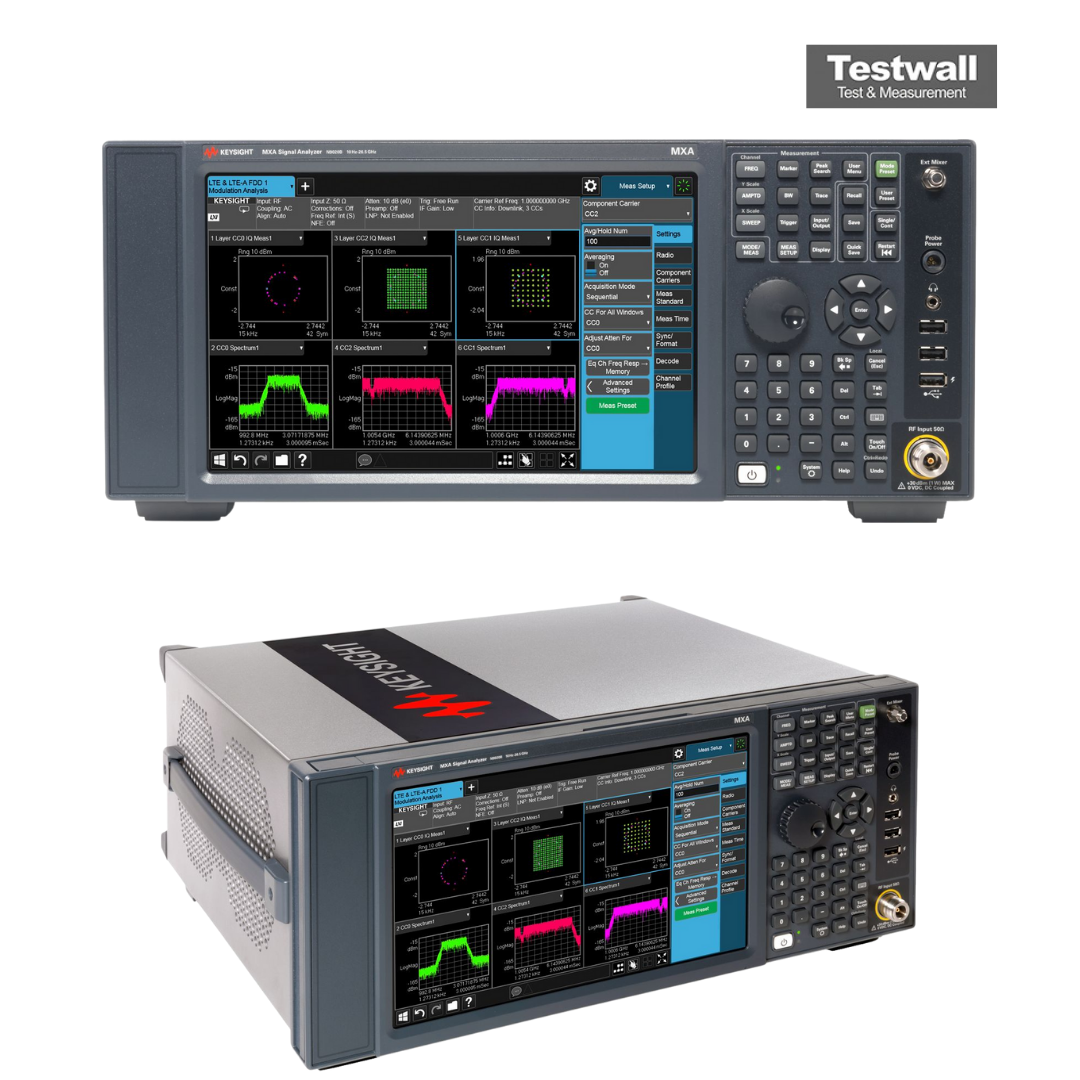

Keysight Technologies N9020B-503
3.6 GHz MXA Multi-touch Signal Analyzer, Type N (f)
3 Hz – 3,6 GHz Rango de frecuencia
-163 dBm/Hz (con preamplificador activado) Nivel de ruido promedio mostrado (DANL)
+30 dBm a -170 dBm Rango de amplitud
±0,19 dB (típico) Exactitud de nivel
1 Hz – 3 MHz (en pasos de 10 %) y 4, 5, 6, 8 MHz Ancho de banda de resolución (RBW)
| Atributo | Valor |
|---|---|
| Rango de frecuencia | 3 Hz – 3,6 GHz |
| Nivel de ruido promedio mostrado (DANL) | -163 dBm/Hz (con preamplificador activado) |
| Rango de amplitud | +30 dBm a -170 dBm |
| Exactitud de nivel | ±0,19 dB (típico) |
| Ancho de banda de resolución (RBW) | 1 Hz – 3 MHz (en pasos de 10 %) y 4, 5, 6, 8 MHz |
| Distorsión armónica de tercer orden (TOI) | +20 dBm (típico) |
| Estabilidad de frecuencia (envejecimiento del oscilador) | <1 ppm/año |
| Puertos de entrada RF | Conector de entrada RF de 50 Ω (N macho) |
| Pantalla | Pantalla táctil LCD a color de 10,1 pulgadas (1024 × 768 píxeles) |
| Interfaces de conectividad | USB, LAN (LXI), GPIB (opcional) |
Keysight Technologies N9020B-503 Options:
- N9020B-503 - P03 - Preamplifier, 100 kHz to 3.6 GHz
- N9020B-503 - P08 - Preamplifier, 100 kHz to 8.4 GHz
- N9020B-503 - P13 - Preamplifier, 100 kHz to 13.6 GHz
- N9020B-503 - P26 - Preamplifier, 100 kHz to 26.5 GHz
- N9020B-503 - PFR - Precision frequency reference; reduces frequency drift, aging rate ±1x10⁻⁷/year
- N9020B-503 - EA3 - Electronic attenuator up to 3.6 GHz; 1 dB steps, 0 to 24 dB (in addition to mechanical attenuator)
- N9020B-503 - B40 - 40 MHz analysis bandwidth
- N9020B-503 - B85 - 85 MHz analysis bandwidth
- N9020B-503 - B1A - 125 MHz analysis bandwidth
- N9020B-503 - B1X - 160 MHz analysis bandwidth
- N9020B-503 - MPB - Microwave preselector bypass
- N9020B-503 - DP2 - Digital processor with 2 GB capture memory
- N9020B-503 - BBA - I/Q baseband inputs, analog; single-ended/differential, 50 Ω/1 MΩ impedance
- N9020B-503 - EXM - External mixing; extends frequency coverage up to 1.1 THz
- N9020B-503 - FP2 - Fast power; accelerates power measurements such as ACPR
- N9020B-503 - NF2 - Noise floor extension; improves analyzer DANL performance
- N9020B-503 - RT1 - Real-time analysis up to 160 MHz BW, basic detection; includes FMT and TQT, min 17.3 μs POI
- N9020B-503 - RT2 - Real-time analysis up to 160 MHz BW, optimum detection; includes FMT and TQT, min 3.6 μs POI
- N9020B-503 - RTR - Real-time spectrum recorder and analyzer application
- N9020B-503 - FT1 - Frequency mask trigger, basic detection; detects signals as short as 17.3 μs
- N9020B-503 - FT2 - Frequency mask trigger, optimum detection; detects signals as short as 3.6 μs
- N9020B-503 - EDP - Enhanced display package; includes spectrogram, trace zoom, and zone span
- N9020B-503 - EMC - Basic EMI precompliance; CISPR 16-1-1 detectors and bandwidths
- N9020B-503 - ESC - External source control for Keysight EXG, MXG, and PSG signal generators
- N9020B-503 - SSD - Additional removable solid-state drive
- N9020B-503 - SF1 - Exclude launch program; prevents launching of Windows programs from instrument application
- N9020B-503 - SF2 - Prohibit saving results; prevents saving/recall of measurement results or user configurations
- N9020B-503 - CR3 - Second IF output; wideband IF out on Aux IF connector at rear panel
- N9020B-503 - CRP - Arbitrary IF output; IF out 10 to 75 MHz in 500 kHz steps
- N9020B-503 - YAS - Y-axis screen video output; screen video (0-1 volt open circuit) on rear panel analog out
- N9020B-503 - PRC - Portable configuration; pivoting carrying handle, rubber protective corners and end guards
- N9020B-503 - CVR - Front panel cover
- N9020B-503 - UK6 - Commercial calibration certificate with test data
- N9020B-503 - AMG - Keysight Calibration + Uncertainties + Guardbanding (accredited cal, ISO 17025A)
- N9020B-503 - A6J - ANSI Z540-1-1994 Calibration
| Model | N9020B-503 |
|---|
El Keysight (Agilent) N9020B-503 es un analizador de señales de 3,6 GHz de la serie MXA X, diseñado para aplicaciones inalámbricas y aeroespaciales. Ofrece 160 MHz de ancho de banda, análisis espectral en tiempo real, ruido de fase de -114 dBc/Hz a 10 kHz y soporte opcional para el software 89600 VSA.
Con pantalla táctil, velocidades de barrido rápidas y amplio rango dinámico, el N9020B-503 proporciona resultados precisos para aplicaciones de RF.
Testwall puede suministrar el Keysight (Agilent) N9020B-503 usado, completamente probado. Con soporte experto y entrega global, Testwall asegura instrumentación de alto rendimiento con fiabilidad inigualable. Contáctenos para calibración o reparación del Keysight (Agilent) N9020B-503.
