Keysight (Agilent)

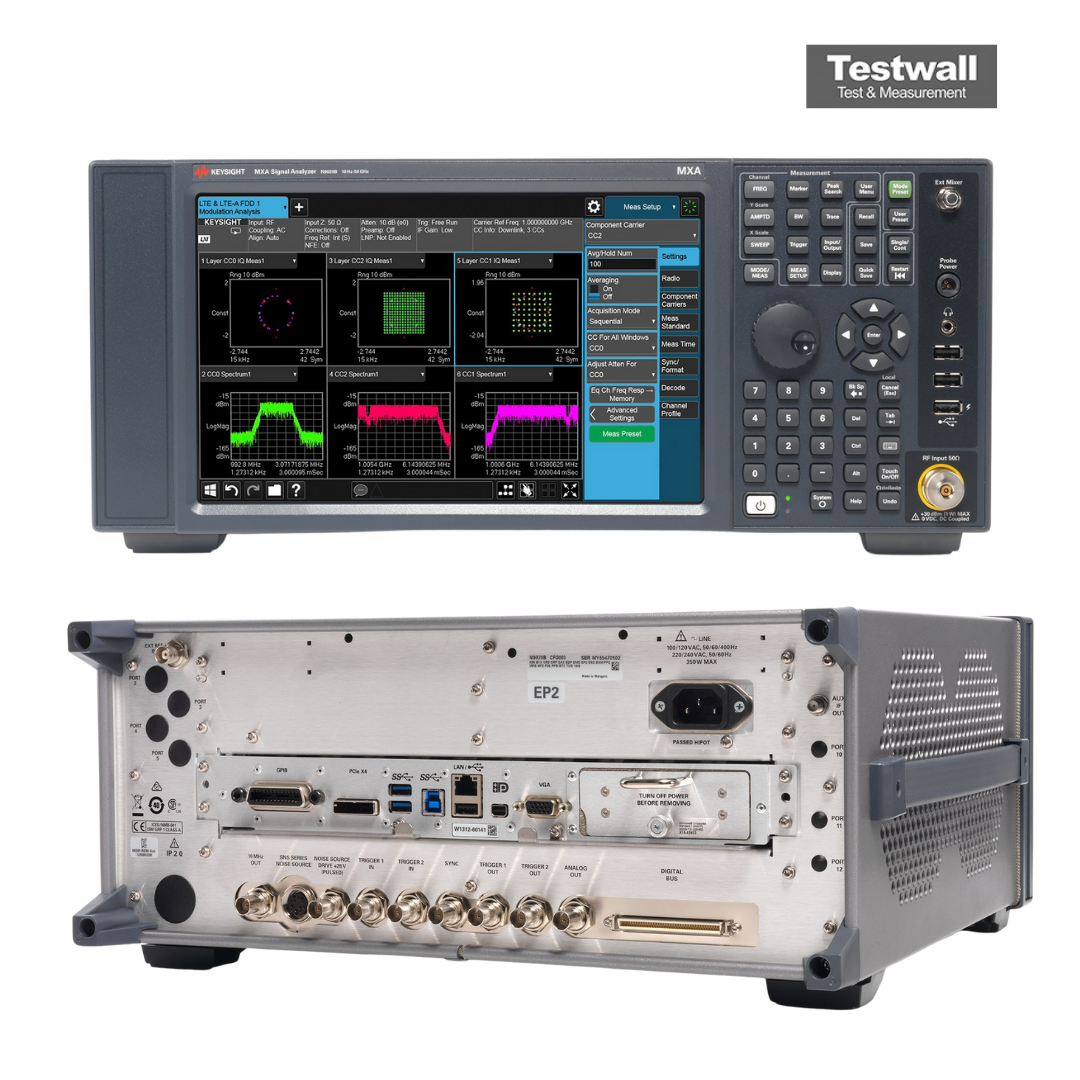

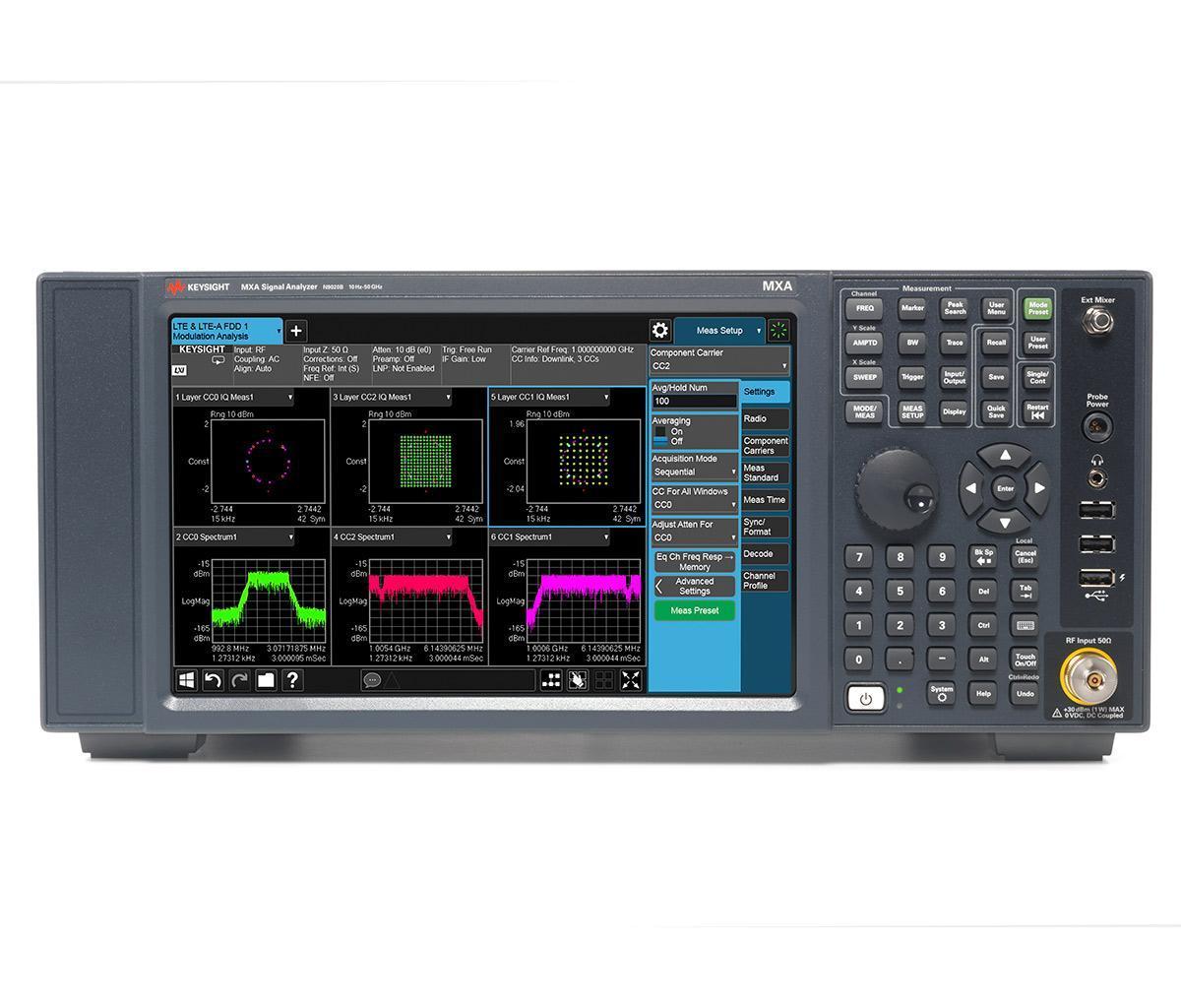

Keysight Technologies N9020B-526
26.5 GHz MXA Multi-touch Signal Analyzer, Type N (f)
10 Hz – 26,5 GHz Rango de Frecuencia
-170 dBm a +30 dBm Rango de Amplitud
hasta 510 MHz Ancho de Banda de Análisis
-163 dBm/Hz (con preamplficador activado) Nivel de Ruido Promedio Mostrado (DANL)
-108 dBc/Hz a 10 kHz de desplazamiento (a 1 GHz) Fase de Ruido
| Atributo | Valor |
|---|---|
| Rango de Frecuencia | 10 Hz – 26,5 GHz |
| Rango de Amplitud | -170 dBm a +30 dBm |
| Ancho de Banda de Análisis | hasta 510 MHz |
| Nivel de Ruido Promedio Mostrado (DANL) | -163 dBm/Hz (con preamplficador activado) |
| Fase de Ruido | -108 dBc/Hz a 10 kHz de desplazamiento (a 1 GHz) |
| Rango Dinámico | hasta 78 dB |
| Exactitud de Amplitud | ±0,19 dB (típico) |
| Interfaz y Conectividad | LAN (LXI), USB, GPIB (opcional) |
| Pantalla | Pantalla táctil a color de 12,1 pulgadas |
| Sistema Operativo | Windows 10 IoT Enterprise de 64 bits |
Keysight Technologies N9020B-526 Options:
- N9020B-526 - P03 - Preamplifier, 100 kHz to 3.6 GHz
- N9020B-526 - P08 - Preamplifier, 100 kHz to 8.4 GHz
- N9020B-526 - P13 - Preamplifier, 100 kHz to 13.6 GHz
- N9020B-526 - P26 - Preamplifier, 100 kHz to 26.5 GHz
- N9020B-526 - PFR - Precision frequency reference; reduces frequency drift, aging rate ±1x10⁻⁷/year
- N9020B-526 - EA3 - Electronic attenuator up to 3.6 GHz; 1 dB steps, 0 to 24 dB (in addition to mechanical attenuator)
- N9020B-526 - B40 - 40 MHz analysis bandwidth
- N9020B-526 - B85 - 85 MHz analysis bandwidth
- N9020B-526 - B1A - 125 MHz analysis bandwidth
- N9020B-526 - B1X - 160 MHz analysis bandwidth
- N9020B-526 - MPB - Microwave preselector bypass; required for wide analysis bandwidth measurements >3.6 GHz
- N9020B-526 - DP2 - Digital processor with 2 GB capture memory
- N9020B-526 - BBA - I/Q baseband inputs, analog; single-ended/differential, 50 Ω/1 MΩ impedance
- N9020B-526 - EXM - External mixing; extends frequency coverage up to 1.1 THz
- N9020B-526 - FP2 - Fast power; accelerates power measurements such as ACPR
- N9020B-526 - NF2 - Noise floor extension; improves analyzer's DANL performance
- N9020B-526 - RT1 - Real-time analysis up to 160 MHz BW, basic detection; includes FMT and TQT, minimum 17.3 μs POI
- N9020B-526 - RT2 - Real-time analysis up to 160 MHz BW, optimum detection; includes FMT and TQT, minimum 3.6 μs POI
- N9020B-526 - RTR - Real-time spectrum recorder and analyzer application
- N9020B-526 - FT1 - Frequency mask trigger, basic detection; detects signals as short as 17.3 μs
- N9020B-526 - FT2 - Frequency mask trigger, optimum detection; detects signals as short as 3.6 μs
- N9020B-526 - EDP - Enhanced display package; includes spectrogram, trace zoom, and zone span
- N9020B-526 - EMC - Basic EMI precompliance; CISPR 16-1-1 detectors and bandwidths
- N9020B-526 - ESC - External source control for Keysight EXG, MXG, and PSG signal generators
- N9020B-526 - SSD - Additional removable solid-state drive
- N9020B-526 - SF1 - Exclude launch program; prevents launching of Windows programs from instrument application
- N9020B-526 - SF2 - Prohibit saving results; prevents saving/recall of measurement results or user configurations
- N9020B-526 - CR3 - Second IF output; wideband IF out on Aux IF connector at rear panel
- N9020B-526 - CRP - Arbitrary IF output; IF out 10 to 75 MHz in 500 kHz steps
- N9020B-526 - YAS - Y-axis screen video output; screen video (0-1 volt open circuit) on rear panel analog out
- N9020B-526 - PRC - Portable configuration; pivoting carrying handle, rubber protective corners and end guards
- N9020B-526 - UK6 - Commercial calibration certificate with test data
- N9020B-526 - AMG - Keysight Calibration + Uncertainties + Guardbanding (accredited cal); ISO 17025A accredited
- N9020B-526 - A6J - ANSI Z540-1-1994 Calibration; ANSI Z540 compliant calibration from factory
| Model | N9020B-526 |
|---|
El analizador de señales Keysight (Agilent) N9020B-526 X-Series proporciona un análisis de señales de alta calidad con cobertura de hasta 26,5 GHz y 160 MHz de ancho de banda en tiempo real. Destaca por su alta precisión, bajo ruido de fase y gran sensibilidad, ideal para radar, 5G NR y aplicaciones satelitales.
Cuenta con una interfaz táctil, compatibilidad con VSA 89600 y mediciones opcionales como EVM y ACPR, facilitando el desarrollo técnico.
Testwall puede suministrar el Keysight (Agilent) N9020B-526 usado, completamente probado. Con soporte experto y entrega global, Testwall garantiza equipos de alto rendimiento con gran fiabilidad. Contáctenos para calibración o reparación del Keysight (Agilent) N9020B-526.
