Keysight (Agilent)

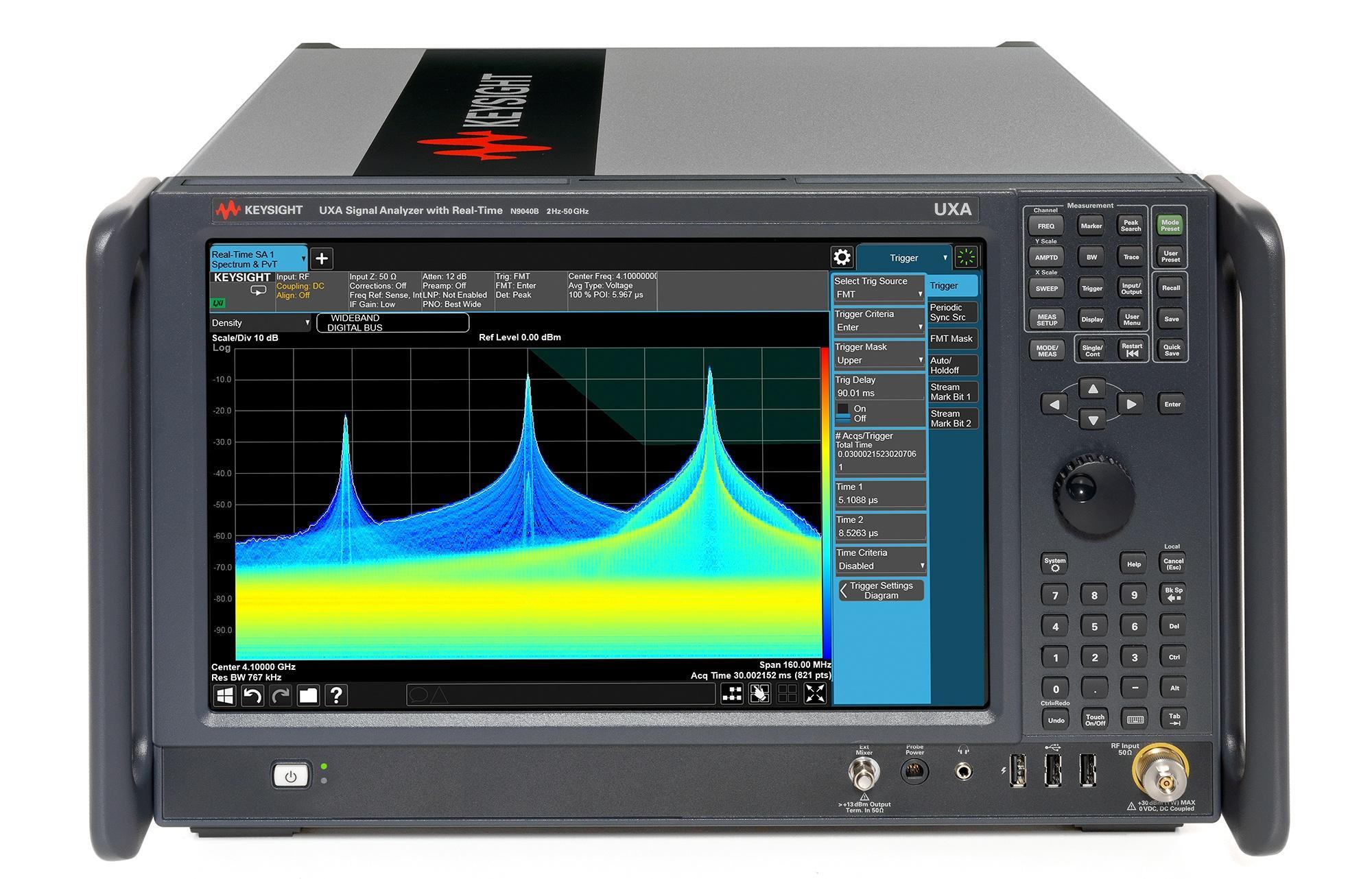

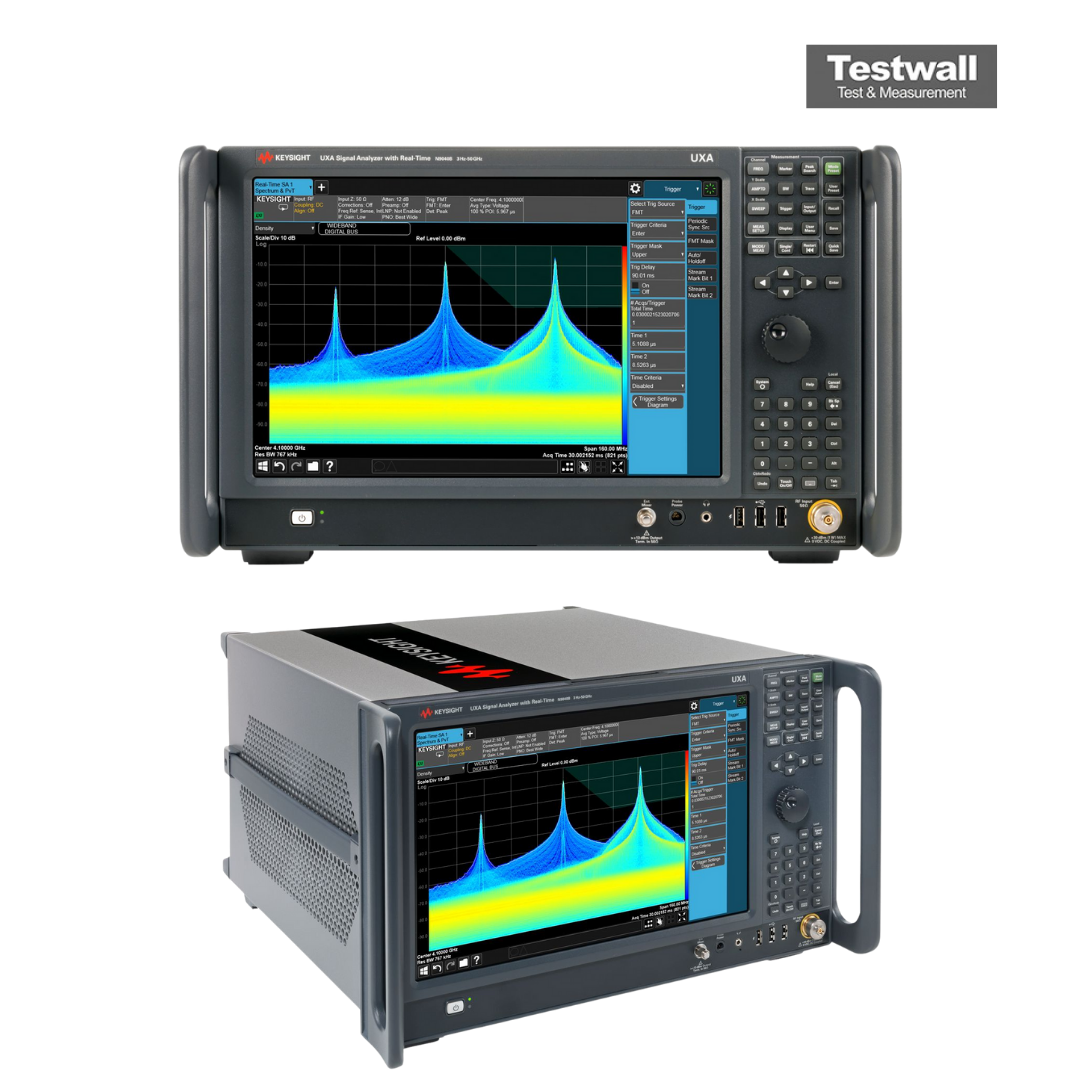

Keysight Technologies N9040B-526
26.5 GHz UXA Signal Analyzer, Type N (f)
2 Hz – 26,5 GHz Rango de frecuencia
-170 dBm/Hz a +30 dBm Rango de amplitud
-163 dBm/Hz (típico) Figura de ruido mostrada
hasta 510 MHz Ancho de banda de análisis
-170 dBm a +30 dBm Nivel de referencia
| Atributo | Valor |
|---|---|
| Rango de frecuencia | 2 Hz – 26,5 GHz |
| Rango de amplitud | -170 dBm/Hz a +30 dBm |
| Figura de ruido mostrada | -163 dBm/Hz (típico) |
| Ancho de banda de análisis | hasta 510 MHz |
| Nivel de referencia | -170 dBm a +30 dBm |
| Precisión de nivel | ±0,19 dB (típico) |
| Resolución de ancho de banda (RBW) | 1 Hz – 50 MHz |
| Rango dinámico | hasta 78 dBc (tercer orden) |
| Impedancia de entrada | 50 Ω |
| Interfaz de conectividad | LAN, USB, GPIB |
Keysight Technologies N9040B-526 Options:
- N9040B-526 - P08 - Preamplifier, 100 kHz to 8.4 GHz
- N9040B-526 - P13 - Preamplifier, 100 kHz to 13.6 GHz
- N9040B-526 - P26 - Preamplifier, 100 kHz to 26.5 GHz
- N9040B-526 - EA3 - Electronic attenuator up to 3.6 GHz; 1 dB steps, 0 to 24 dB
- N9040B-526 - B40 - 40 MHz analysis bandwidth
- N9040B-526 - B2X - 255 MHz analysis bandwidth
- N9040B-526 - B5X - 510 MHz analysis bandwidth
- N9040B-526 - C35 - APC 3.5 mm RF input connector on 26.5 GHz UXA
- N9040B-526 - FP2 - Fast power; accelerates power measurements such as ACPR; requires Option B40 or wider BW
- N9040B-526 - RT1 - Real-time analysis up to maximum available BW, basic detection; includes FMT, TQT; minimum 17.3 μs signal duration for 100% POI; requires N9040B-B2X or N9040B-B5X
- N9040B-526 - RT2 - Real-time analysis up to maximum available BW, optimum detection; includes FMT, TQT; minimum 3.517 μs signal duration for 100% POI; requires N9040B-B2X or N9040B-B5X
- N9040B-526 - RTS - Real-time I/Q data streaming; stream gap-free 16 bit I/Q data up to 255 MHz bandwidth; requires N9040B-RT1 or N9040B-RT2
- N9040B-526 - FT1 - Frequency mask trigger, basic detection; requires N9040B-B2X or N9040B-B5X
- N9040B-526 - FT2 - Frequency mask trigger, optimum detection; requires N9040B-B2X or N9040B-B5X
- N9040B-526 - EMC - Basic EMI precompliance; CISPR 16-1-1 detectors and bandwidths
- N9040B-526 - SSD - Additional removable solid-state drive (SSD)
- N9040B-526 - SF1 - Security features, exclude launch programs
- N9040B-526 - SF2 - Security features, prohibit saving results
- N9040B-526 - CRP - Arbitrary IF out; 10 to 75 MHz (in 500 kHz steps)
- N9040B-526 - ALV - Aux log video out; fast rise time video out
- N9040B-526 - YAV - Y-axis video out; screen video (0-1 volt open circuit); log video and linear video
- N9040B-526 - MSE - Mouse, USB interface
- N9040B-526 - KB2 - Compact keyboard, USB interface; US 65 keys
- N9040B-526 - DVR - USB DVD-ROM/CD-R/RW drive
- N9040B-526 - 1CM - Rack mount kit (light gray)
- N9040B-526 - 2CM - Rack mount kit (dark gray)
- N9040B-526 - 1CP - Rack mount kit with handles (light gray)
- N9040B-526 - 2CP - Rack mount kit with handles (dark gray)
- N9040B-526 - MLP - Minimum loss pad, 50 to 75 Ω (type-N to BNC); frequency range: 9 MHz to 2 GHz
- N9040B-526 - UK6 - Commercial calibration certificate with test data
- N9040B-526 - AMG - Keysight Calibration + Uncertainties + Guardbanding (accredited cal)
- N9040B-526 - A6J - ANSI Z540-1-1994 Calibration
- N9040B-526 - N9063C-1FP - Analog demodulation, fixed perpetual license
- N9040B-526 - N9063C-1TP - Analog demodulation, transportable perpetual license
- N9040B-526 - N9069C-3FP - Noise figure, fixed perpetual license (requires preamplifier)
- N9040B-526 - N9069C-3TP - Noise figure, transportable perpetual license (requires preamplifier)
- N9040B-526 - N9068C-2FP - Phase noise, fixed perpetual license
- N9040B-526 - N9068C-2TP - Phase noise, transportable perpetual license
- N9040B-526 - N9067C-1FP - Pulse, fixed perpetual license
- N9040B-526 - N9067C-1TP - Pulse, transportable perpetual license
- N9040B-526 - N9080C-1FP - LTE/LTE-Advanced FDD, fixed perpetual license
- N9040B-526 - N9080C-1TP - LTE/LTE-Advanced FDD, transportable perpetual license
- N9040B-526 - N9080C-2FP - LTE-Advanced FDD, fixed perpetual license; requires N9080C-1FP
- N9040B-526 - N9080C-2TP - LTE-Advanced FDD, transportable perpetual license; requires N9080C-1TP
- N9040B-526 - N9082C-1FP - LTE/LTE-Advanced TDD, fixed perpetual license
- N9040B-526 - N9082C-1TP - LTE/LTE-Advanced TDD, transportable perpetual license
- N9040B-526 - N9082C-2FP - LTE-Advanced TDD, fixed perpetual license; requires N9082C-1FP
- N9040B-526 - N9082C-2TP - LTE-Advanced TDD, transportable perpetual license; requires N9082C-1TP
- N9040B-526 - N9073C-1FP - W-CDMA, fixed perpetual license
- N9040B-526 - N9073C-1TP - W-CDMA, transportable perpetual license
- N9040B-526 - N9073C-2FP - HSPA measurements, fixed perpetual license; requires N9073C-1FP
- N9040B-526 - N9073C-2TP - HSPA measurements, transportable perpetual license; requires N9073C-1TP
- N9040B-526 - N9073C-3FP - HSPA+ measurements, fixed perpetual license; requires N9073C-1FP and N9073C-2FP
- N9040B-526 - N9073C-3TP - HSPA+ measurements, transportable perpetual license; requires N9073C-1TP and N9073C-2TP
- N9040B-526 - 89601B - 89600 vector signal analysis (VSA) software, transportable license
| Model | N9040B-526 |
|---|
El Keysight (Agilent) N9040B-526 UXA analizador de señales opera de 2 Hz a 26,5 GHz con hasta 1 GHz de ancho de banda en tiempo real. Ofrece análisis preciso con bajo ruido de fase y DANL, y pantalla multitáctil de 14,1".
Perfecto para pruebas 5G, satelitales, radar y EW, con mezcla externa para mmWave y soporte completo para software 89600 VSA.
Testwall puede suministrar el analizador de señales usado N9040B-526 UXA, completamente probado. Con soporte experto y entrega global, Testwall garantiza equipos de alto rendimiento. Contáctenos para calibración o reparación del N9040B-526 UXA.
