Keysight (Agilent)

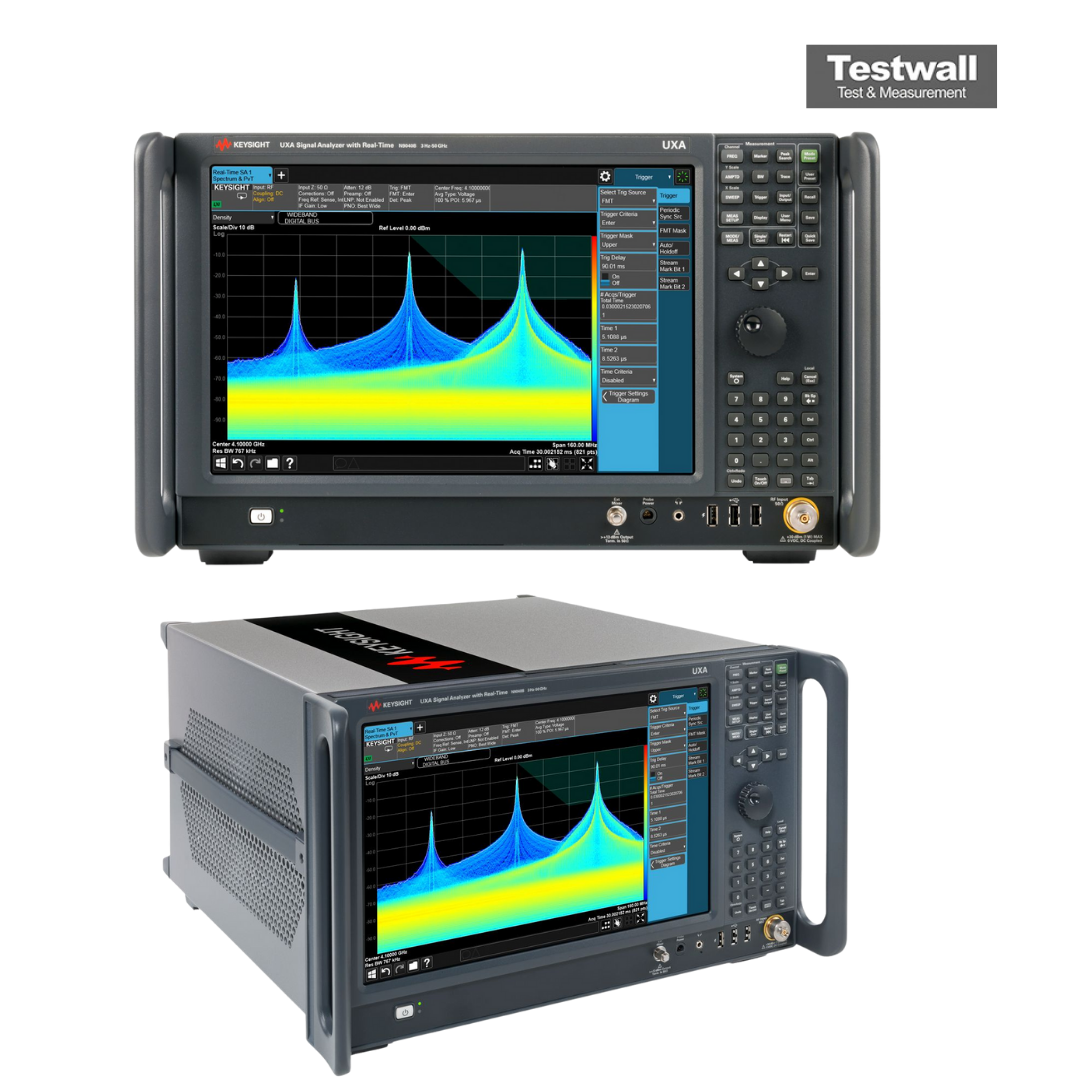

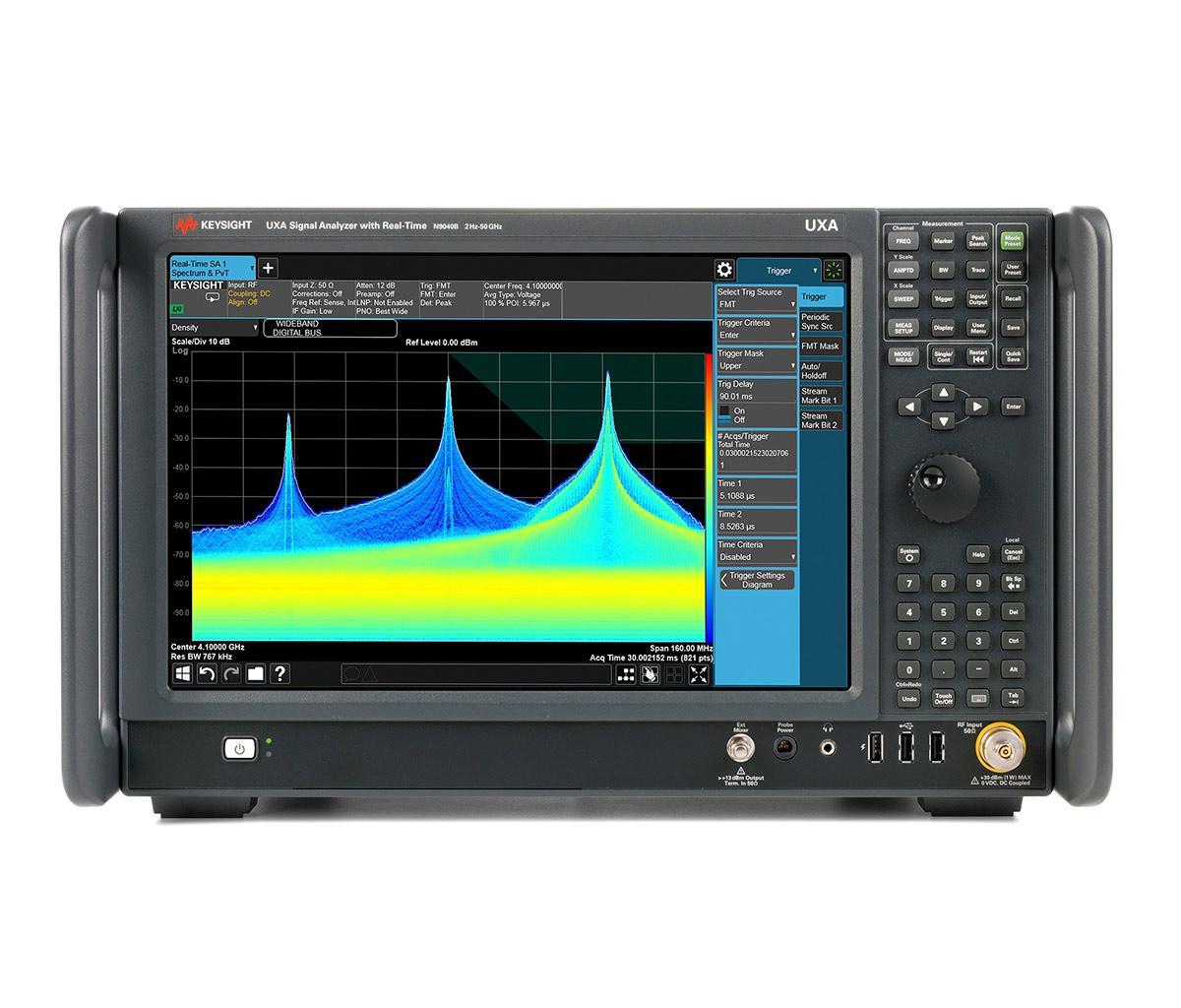

Keysight Technologies N9040B-544
44 GHz UXA Signal Analyzer, 2.4 mm (m)
3 Hz – 44 GHz Rango de frecuencia
-172 dBm/Hz (típico, con preamplificador activado) Nivel de ruido mostrado promedio (DANL)
+30 dBm a -170 dBm Rango de amplitud
±0,19 dB (típico a 1 GHz, 23 °C ± 3 °C) Precisión de amplitud
-114 dBc/Hz a 10 kHz de separación (típico a 1 GHz) Fase de ruido
| Atributo | Valor |
|---|---|
| Rango de frecuencia | 3 Hz – 44 GHz |
| Nivel de ruido mostrado promedio (DANL) | -172 dBm/Hz (típico, con preamplificador activado) |
| Rango de amplitud | +30 dBm a -170 dBm |
| Precisión de amplitud | ±0,19 dB (típico a 1 GHz, 23 °C ± 3 °C) |
| Fase de ruido | -114 dBc/Hz a 10 kHz de separación (típico a 1 GHz) |
| Ancho de banda de resolución (RBW) | 1 Hz – 8 MHz (pasos de 10 %) |
| Distorsión armónica de segundo orden (TOI) | +22 dBm (típico a 1 GHz) |
| Impedancia de entrada | 50 Ω (nominal) |
| Pantalla | Pantalla táctil LCD a color de 15,4 pulgadas (1366 × 768 píxeles) |
| Interfaces y conectividad | LAN (1000Base-T), USB 2.0, USB 3.0, GPIB (opcional), DisplayPort |
Keysight Technologies N9040B-544 Options:
- N9040B-544 - P08 - Preamplifier, 100 kHz to 8.4 GHz
- N9040B-544 - P13 - Preamplifier, 100 kHz to 13.6 GHz
- N9040B-544 - P26 - Preamplifier, 100 kHz to 26.5 GHz
- N9040B-544 - P44 - Preamplifier, 100 kHz to 44 GHz
- N9040B-544 - EA3 - Electronic attenuator up to 3.6 GHz; 1 dB steps, 0 to 24 dB
- N9040B-544 - B40 - Extends the analysis bandwidth to 40 MHz
- N9040B-544 - B2X - Extends the analysis bandwidth to 255 MHz
- N9040B-544 - B5X - Extends the analysis bandwidth to 510 MHz
- N9040B-544 - FP2 - Fast power; accelerates power measurements such as ACPR; requires Option B40 or wider BW
- N9040B-544 - RT1 - Real-time analysis up to maximum available BW, basic detection; includes FMT, TQT; minimum 17.3 μs signal duration for 100% POI with full amplitude accuracy; requires N9040B-B2X or N9040B-B5X
- N9040B-544 - RT2 - Real-time analysis up to maximum available BW, optimum detection; includes FMT, TQT; minimum 3.517 μs signal duration for 100% POI with full amplitude accuracy; requires N9040B-B2X or N9040B-B5X
- N9040B-544 - RTS - Real-time I/Q data streaming; stream gap-free 16 bit I/Q data up to 255 MHz bandwidth; requires N9040B-RT1 or N9040B-RT2
- N9040B-544 - FT1 - Frequency mask trigger, basic detection; requires N9040B-B2X or N9040B-B5X
- N9040B-544 - FT2 - Frequency mask trigger, optimum detection; requires N9040B-B2X or N9040B-B5X
- N9040B-544 - EMC - Basic EMI precompliance; perform EMI precompliance measurements with CISPR 16-1-1 detectors and bandwidths
- N9040B-544 - SSD - Additional removable solid-state drive (SSD)
- N9040B-544 - SF1 - Security features, exclude launch programs; prevents the launching of Windows programs from the instrument application
- N9040B-544 - SF2 - Security features, prohibit saving results; prevents instrument application from saving/recall of measurement results or user configurations
- N9040B-544 - CRP - Arbitrary IF out; IF out 10 to 75 MHz (in 500 kHz steps); output on Aux IF connector at rear panel
- N9040B-544 - ALV - Aux log video out; fast rise time video out; output on Aux IF connector
- N9040B-544 - YAV - Y-axis video out; screen video (0-1 volt open circuit); log video and linear video
- N9040B-544 - MSE - Mouse, USB interface
- N9040B-544 - KB2 - Compact keyboard, USB interface; US 65 keys
- N9040B-544 - DVR - USB DVD-ROM/CD-R/RW drive
- N9040B-544 - 1CM - Rack mount kit (light gray)
- N9040B-544 - 2CM - Rack mount kit (dark gray)
- N9040B-544 - 1CP - Rack mount kit with handles (light gray)
- N9040B-544 - 2CP - Rack mount kit with handles (dark gray)
- N9040B-544 - MLP - Minimum loss pad, 50 to 75 Ω (type-N to BNC); frequency range: 9 MHz to 2 GHz
- N9040B-544 - UK6 - Commercial calibration certificate with test data
- N9040B-544 - AMG - Keysight Calibration + Uncertainties + Guardbanding (accredited cal); ISO 17025A accredited calibration
- N9040B-544 - A6J - ANSI Z540-1-1994 Calibration; ANSI Z540 compliant calibration from factory
- N9040B-544 - N9063C-1FP - Analog demodulation, fixed perpetual license
- N9040B-544 - N9063C-1TP - Analog demodulation, transportable perpetual license
- N9040B-544 - N9069C-3FP - Noise figure, fixed perpetual license (requires preamplifier)
- N9040B-544 - N9069C-3TP - Noise figure, transportable perpetual license (requires preamplifier)
- N9040B-544 - N9068C-2FP - Phase noise, fixed perpetual license
- N9040B-544 - N9068C-2TP - Phase noise, transportable perpetual license
- N9040B-544 - N9067C-1FP - Pulse measurement application, fixed perpetual license
- N9040B-544 - N9067C-1TP - Pulse measurement application, transportable perpetual license
- N9040B-544 - N9080C-1FP - LTE/LTE-Advanced FDD, standard-based one-button LTE-FDD measurements, fixed perpetual license
- N9040B-544 - N9080C-1TP - LTE/LTE-Advanced FDD, standard-based one-button LTE-FDD measurements, transportable perpetual license
- N9040B-544 - N9080C-2FP - LTE-Advanced FDD measurements, fixed perpetual license; requires N9080C-1FP
- N9040B-544 - N9080C-2TP - LTE-Advanced FDD measurements, transportable perpetual license; requires N9080C-1TP
- N9040B-544 - N9082C-1FP - LTE/LTE-Advanced TDD, standard-based one-button LTE-TDD measurements, fixed perpetual license
- N9040B-544 - N9082C-1TP - LTE/LTE-Advanced TDD, standard-based one-button LTE-TDD measurements, transportable perpetual license
- N9040B-544 - N9082C-2FP - LTE-Advanced TDD measurements, fixed perpetual license; requires N9082C-1FP
- N9040B-544 - N9082C-2TP - LTE-Advanced TDD measurements, transportable perpetual license; requires N9082C-1TP
- N9040B-544 - N9073C-1FP - W-CDMA/HSPA+, standard-based one-button W-CDMA measurements, fixed perpetual license
- N9040B-544 - N9073C-1TP - W-CDMA/HSPA+, standard-based one-button W-CDMA measurements, transportable perpetual license
- N9040B-544 - N9073C-2FP - W-CDMA/HSPA+, adds HSPA measurements, fixed perpetual license; requires 1FP
- N9040B-544 - N9073C-2TP - W-CDMA/HSPA+, adds HSPA measurements, transportable perpetual license; requires 1TP
- N9040B-544 - N9073C-3FP - W-CDMA/HSPA+, adds HSPA+ measurements, fixed perpetual license; requires 1FP, 2FP
- N9040B-544 - N9073C-3TP - W-CDMA/HSPA+, adds HSPA+ measurements, transportable perpetual license; requires 1TP, 2TP
- N9040B-544 - 89601B - 89600 vector signal analysis (VSA) software, transportable perpetual license
- N9040B-544 - R-51B-001-5Z - Warranty Assurance Plan, Return-to-Keysight, 5 years
- N9040B-544 - R-51B-001-7Z - Warranty Assurance Plan, Return-to-Keysight, 7 years
- N9040B-544 - R-51B-001-10Z - Warranty Assurance Plan, Return-to-Keysight, 10 years
- N9040B-544 - R-50C-011-3 - Calibration Assurance Plan, Return-to-Keysight, 3 years
- N9040B-544 - R-50C-011-5 - Calibration Assurance Plan, Return-to-Keysight, 5 years
- N9040B-544 - R-50C-011-7 - Calibration Assurance Plan, Return-to-Keysight, 7 years
- N9040B-544 - R-50C-011-10 - Calibration Assurance Plan, Return-to-Keysight, 10 years
| Model | N9040B-544 |
|---|
El Keysight (Agilent) N9040B-544 es un analizador de señales de alto rendimiento que cubre desde 2 Hz hasta 44 GHz. Proporciona hasta 1 GHz de ancho de banda en tiempo real, excelente ruido de fase y rango dinámico sobresaliente para entornos RF complejos. Compatible con señales 5G, radar y satélite, con mezcla externa y una interfaz táctil personalizable.
Ideal para pruebas aeroespaciales, de defensa y digitales de alta velocidad, incluye firmware actualizable y capacidades de análisis avanzadas.
Testwall puede suministrar el Keysight (Agilent) N9040B-544 usado, completamente probado. Con soporte experto y entrega global, Testwall garantiza instrumentación de alto rendimiento con fiabilidad y calidad de servicio incomparables. Contáctenos para calibración o reparación del Keysight (Agilent) N9040B-544.
