Keysight (Agilent)

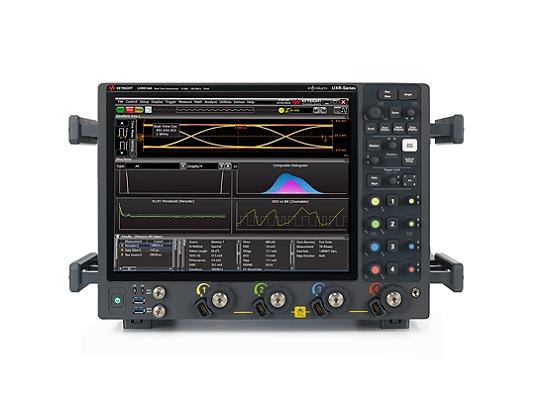

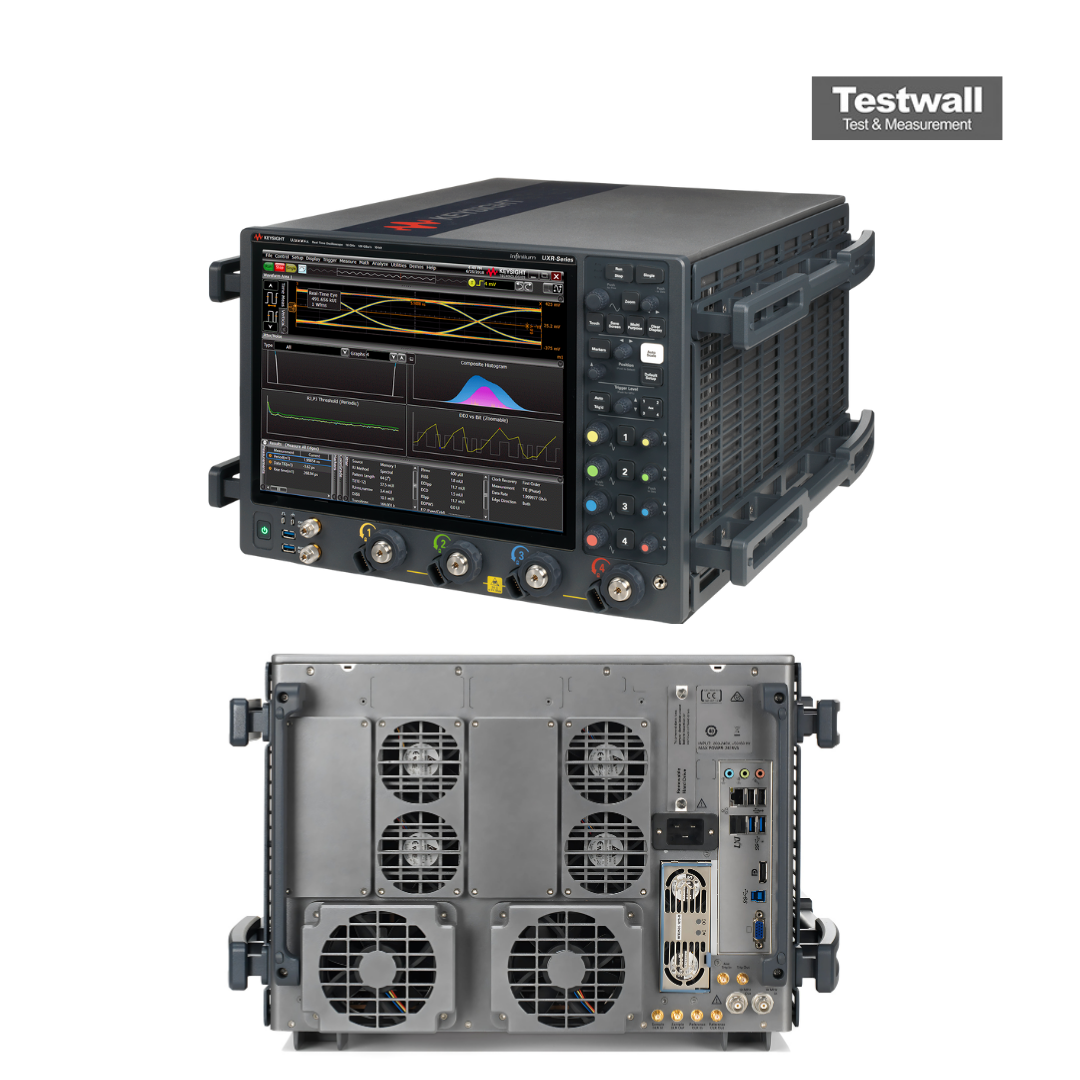

Keysight Technologies UXR0134A 13 GHz, 4 Channel Oscilloscope
13 GHz, 4-Kanal-Oszilloskop
13 GHz Ancho de banda
4 canales Número de canales
256 GSa/s Tasa de muestreo máxima
2 Gpts (por canal) Profundidad de memoria
8 bits (hasta 10 bits en modo de alta resolución) Resolución vertical
| Atributo | Valor |
|---|---|
| Ancho de banda | 13 GHz |
| Número de canales | 4 canales |
| Tasa de muestreo máxima | 256 GSa/s |
| Profundidad de memoria | 2 Gpts (por canal) |
| Resolución vertical | 8 bits (hasta 10 bits en modo de alta resolución) |
| Rango de voltaje de entrada | 25 mV/div a 1 V/div |
| Impedancia de entrada | 50 Ω |
| Base de tiempos | 2 ps/div a 20 s/div |
| Pantalla | Pantalla táctil capacitiva de 15,6 pulgadas |
| Interfaz de conectividad | USB, LAN (LXI), DisplayPort |
Keysight (Agilent) UXR0134A 13 GHz, 4 Channel Oscilloscope Options:
- UXR0134A - UXR0000-01G - 1 Gpt per channel High Performance Memory
- UXR0134A - UXR0000-02G - 2 Gpts per channel High Performance Memory
- UXR0134A - N2130A-01G - Memory upgrade from 200 Mpts to 1 Gpts per channel
- UXR0134A - N2130A-02G - Memory upgrade from 1 Gpt to 2 Gpts per channel
- UXR0134A - N2129BU-003 - Bandwidth upgrade – 4-Channel Infiniium UXR – 13 GHz to 16 GHz
- UXR0134A - N2129BU-004 - Bandwidth upgrade – 4-Channel Infiniium UXR – 16 GHz to 20 GHz
- UXR0134A - N2129BU-005 - Bandwidth upgrade – 4-Channel Infiniium UXR – 20 GHz to 25 GHz
- UXR0134A - N2129BU-006 - Bandwidth upgrade – 4-Channel Infiniium UXR – 25 GHz to 33 GHz
- UXR0134A - N2129BU-007 - Bandwidth upgrade – 4-Channel Infiniium UXR – 33 GHz to 40 GHz
- UXR0134A - D9020JITA - EZJIT Complete - Jitter and Vertical Noise Analysis Software for V/Z/UXR-Series
- UXR0134A - D9020SCNA - InfiniiScan Event Identification Software for V/Z/UXR-Series
- UXR0134A - D9020ASIA - Advanced Signal Integrity Software (EQ, InfiniiSim Adv, Crosstalk)
- UXR0134A - D9010DMBA - De-embedding Software (Precision Probe, InfiniiSim Basic)
- UXR0134A - D9010UDAA - User Defined Application Software
- UXR0134A - D9010PAMA - Pulse Amplitude Modulation PAM-N Analysis Software
- UXR0134A - D9010POWA - Power Integrity Analysis Software
- UXR0134A - D9010EXMA - External Mixer Assistant Software
- UXR0134A - D9010BSEO - Infiniium Offline - Base Software
- UXR0134A - D9010ASIO - Infiniium Offline - Adv Signal Integrity Software (InfiniiSim Adv/EQ/Crosstalk)
- UXR0134A - D9010JITO - Infiniium Offline - EZJIT Complete Software
- UXR0134A - D9010HSPO - Infiniium Offline - High Speed Protocol Software Bundle
- UXR0134A - D9010LSPO - Infiniium Offline - Low Speed Protocol Software Bundle
- UXR0134A - D9010AUTP - Automotive Protocol Decode/Trigger Software (CAN, LIN, CAN-FD, FlexRay ...)
- UXR0134A - D9010BDLP - Protocol Decode/Trigger Software Bundle (Low Speed, Auto, MIPI, Military …)
- UXR0134A - D9010EKRP - 10G/100GBASE-KR 64b/66b and Link Training Decode/Trigger Software
- UXR0134A - D9010EMBP - Embedded Protocol Decode/Trigger Software (USB2.0, 10/100 ETH, PCIe 2/1 ...)
- UXR0134A - D9010LSSP - Low Speed Protocol Decode/Trigger Software (I2C, SPI, RS232, I2S, JTAG ...)
- UXR0134A - D9010MCDP - MIPI CSI and DSI Protocol Decode/Trigger Software (C-PHY and D-PHY)
- UXR0134A - D9010MILP - Military Protocol Decode/Trigger Software (ARINC 429, MIL-STD 1553, SpaceWire)
- UXR0134A - D9010MPLP - Low Speed MIPI Protocol Decode/Trigger Software (RFFE, I3C, SPMI)
- UXR0134A - D9010MPMP - MIPI M-PHY Protocol Decode/Trigger Software (DigRF, LLI, CSI-3, UniPro, UFS, SSIC)
- UXR0134A - D9010PCIP - Advanced PCIe Protocol Decode/Trigger Software (PCIe 4/3/2/1, SATA/SAS)
- UXR0134A - D9010USBP - USB 3.x Protocol Decode/Trigger Software (USB 3.1 - 5 and 10 Gbps)
- UXR0134A - N2127A - Infiniium UXR Real-Time Oscilloscope Calibration Module, 3.5 mm
| Model | UXR0134A |
|---|
El osciloscopio Keysight (Agilent) UXR0134A ofrece hasta 13 GHz de ancho de banda en cuatro canales, con capacidad de actualización. Incorpora un ADC de 10 bits en alta definición, bajo nivel de ruido y medición de jitter precisa. Presenta el ENOB más alto de su clase por encima de 13 GHz.
Ideal para investigación y diseño avanzado, el UXR0134A permite análisis detallados con rendimiento escalable.
Testwall puede suministrar el Keysight (Agilent) UXR0134A usado, completamente probado. Con soporte experto y entrega global, Testwall ofrece instrumentos de alto rendimiento con fiabilidad y calidad inigualables. Contáctenos para calibración o reparación del Keysight (Agilent) UXR0134A.
