Keysight (Agilent)

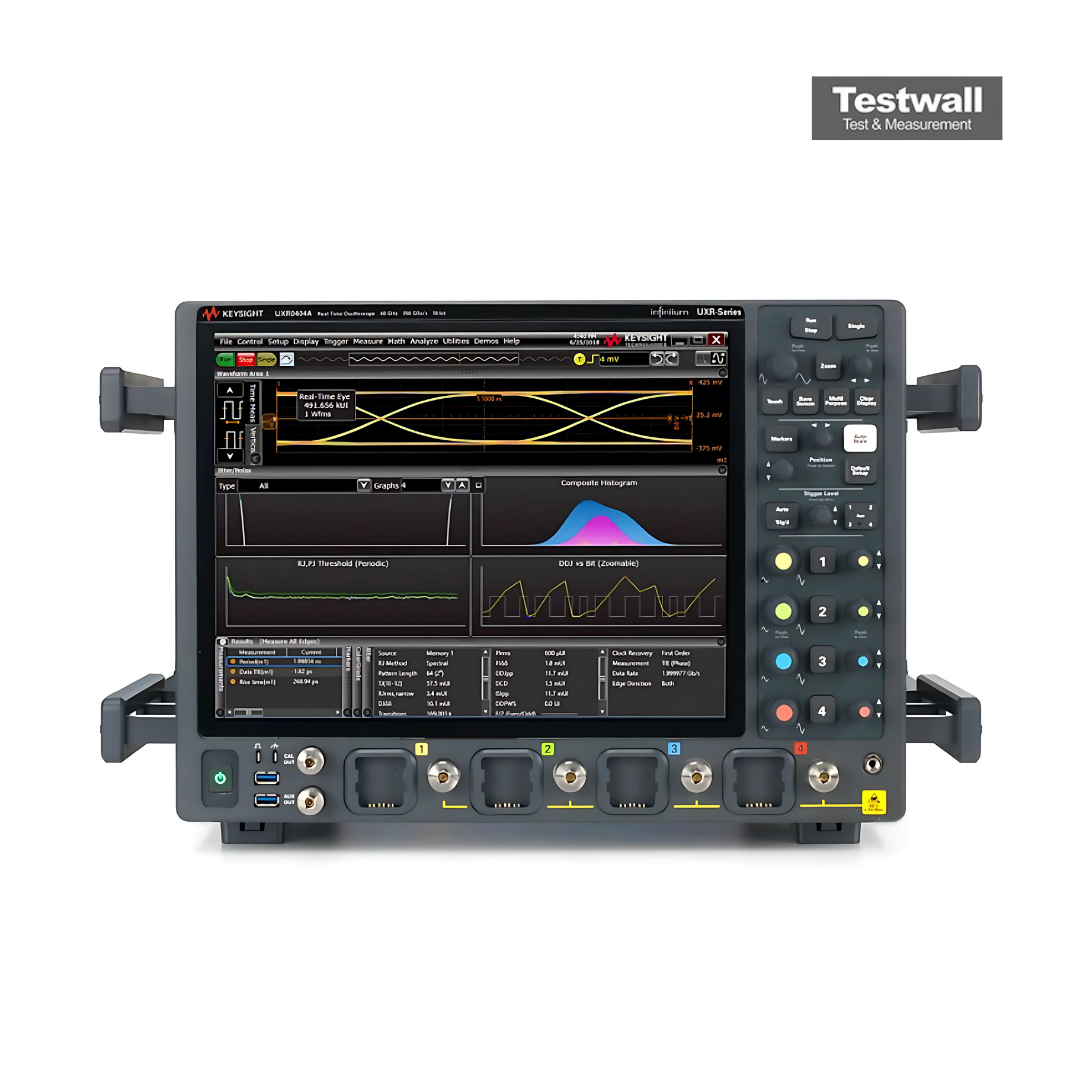

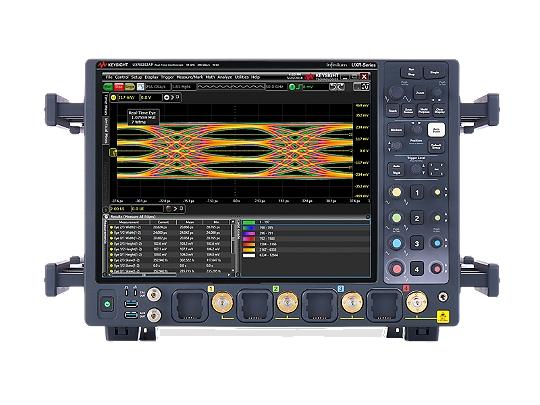

Keysight Technologies UXR0252AP
25 GHz, 2 Channel Oscilloscope
25 GHz Ancho de banda
256 GSa/s Tasa de muestreo
2 canales Número de canales
10 bits Resolución vertical
2 Gpts por canal Profundidad de memoria
| Atributo | Valor |
|---|---|
| Ancho de banda | 25 GHz |
| Tasa de muestreo | 256 GSa/s |
| Número de canales | 2 canales |
| Resolución vertical | 10 bits |
| Profundidad de memoria | 2 Gpts por canal |
| Rango de voltaje de entrada | 25 mV/div a 1 V/div |
| Impedancia de entrada | 50 Ω |
| Base de tiempos | 5 ps/div a 20 s/div |
| Pantalla | Pantalla táctil capacitiva de 15,6 pulgadas |
| Interfaz de conectividad | USB, LAN (LXI), PCIe |
Keysight (Agilent) UXR0252AP Options:
- UXR0252AP - UXR0000-01G - 1 Gpt per channel High Performance Memory
- UXR0252AP - UXR0000-02G - 2 Gpts per channel High Performance Memory
- UXR0252AP - N2130A-01G - Memory upgrade from 200 Mpts to 1 Gpts per channel
- UXR0252AP - N2130A-02G - Memory upgrade from 1 Gpt to 2 Gpts per channel
- UXR0252AP - N2125A - Infiniium UXR Real-Time Oscilloscope Calibration Module, 1.0 mm
- UXR0252AP - N2126A - Infiniium UXR Real-Time Oscilloscope Calibration Module, 1.85 mm
- UXR0252AP - N2127A - Infiniium UXR Real-Time Oscilloscope Calibration Module, 3.50 mm
- UXR0252AP - N2131A-01T - Additional removable SSD for Infiniium UXR Real-Time Oscilloscope – 960GB
- UXR0252AP - N2156A - Rack mount kit for Infiniium UXR Real-Time Oscilloscopes
- UXR0252AP - N2158A - UXR Real-Time Oscilloscope Transportation case
- UXR0252AP - N2129BU-009 - Bandwidth upgrade – 2-Channel Infiniium UXR – 50 GHz to 59 GHz
- UXR0252AP - N2129BU-010 - Bandwidth upgrade – 2-Channel Infiniium UXR – 59 GHz to 70 GHz
- UXR0252AP - N2129BU-011 - Bandwidth upgrade – 2-Channel Infiniium UXR – 70 GHz to 80 GHz
- UXR0252AP - N2129BU-012 - Bandwidth upgrade – 2-Channel Infiniium UXR – 80 GHz to 100 GHz
- UXR0252AP - N2129BU-013 - Bandwidth upgrade – 2-Channel Infiniium UXR – 100 GHz to 110 GHz
- UXR0252AP - D9010DMBA - De-embedding Software (Precision Probe, InfiniiSim Basic)
- UXR0252AP - D9020JITA - EZJIT Complete - Jitter and Vertical Noise Analysis Software for V/Z/UXR-Series
- UXR0252AP - D9020SCNA - InfiniiScan Event Identification Software for V/Z/UXR-Series
- UXR0252AP - D9020ASIA - Advanced Signal Integrity Software (EQ, InfiniiSim Adv, Crosstalk)
- UXR0252AP - D9010UDAA - User Defined Application Software
- UXR0252AP - D9010PAMA - Pulse Amplitude Modulation PAM-N Analysis Software
- UXR0252AP - D9010POWA - Power Integrity Analysis Software
- UXR0252AP - D9010EXMA - External Mixer Assistant Software
- UXR0252AP - D9010BSEO - Infiniium Offline - Base Software
- UXR0252AP - D9010ASIO - Infiniium Offline - Adv Signal Integrity Software (InfiniiSim Adv/EQ/Crosstalk)
- UXR0252AP - D9010JITO - Infiniium Offline - EZJIT Complete Software
- UXR0252AP - D9010HSPO - Infiniium Offline - High Speed Protocol Software Bundle
- UXR0252AP - D9010LSPO - Infiniium Offline - Low Speed Protocol Software Bundle
- UXR0252AP - D9010AUTP - Automotive Protocol Decode/Trigger Software (CAN, LIN, CAN-FD, FlexRay ...)
- UXR0252AP - D9010BDLP - Protocol Decode/Trigger Software Bundle (Low Speed, Auto, MIPI, Military …)
- UXR0252AP - D9010EKRP - 10G/100GBASE-KR 64b/66b and Link Training Decode/Trigger Software
- UXR0252AP - D9010EMBP - Embedded Protocol Decode/Trigger Software (USB2.0, 10/100 ETH, PCIe 2/1 ...)
- UXR0252AP - D9010LSSP - Low Speed Protocol Decode/Trigger Software (I2C, SPI, RS232, I2S, JTAG ...)
- UXR0252AP - D9010MCDP - MIPI CSI and DSI Protocol Decode/Trigger Software (C-PHY and D-PHY)
- UXR0252AP - D9010MILP - Military Protocol Decode/Trigger Software (ARINC 429, MIL-STD 1553, SpaceWire)
- UXR0252AP - D9010MPLP - Low Speed MIPI Protocol Decode/Trigger Software (RFFE, I3C, SPMI)
- UXR0252AP - D9010MPMP - MIPI M-PHY Protocol Decode/Trigger Software (DigRF, LLI, CSI-3, UniPro, UFS, SSIC)
- UXR0252AP - D9010PCIP - Advanced PCIe Protocol Decode/Trigger Software (PCIe 4/3/2/1, SATA/SAS)
- UXR0252AP - D9010USBP - USB 3.x Protocol Decode/Trigger Software (USB 3.1 - 5 and 10 Gbps)
| Model | UXR0252AP |
|---|
El Keysight (Agilent) UXR0252AP ofrece un ancho de banda de 25 GHz con dos canales de ancho completo y ADC de 10 bits. Muestreo de 256 GSa/s en todos los canales y hasta 2 Gpts de memoria. Incluye módulo de calibración opcional, SDA de alta velocidad, recuperación de reloj y funciones definidas por el usuario.
Ideal para análisis de señales de alta velocidad, el UXR0252AP es actualizable hasta 110 GHz.
Testwall puede suministrar el Keysight (Agilent) UXR0252AP usado, completamente probado. Con soporte experto y entrega global, Testwall garantiza instrumentos de alto rendimiento con una fiabilidad y calidad de servicio incomparables. Contáctenos para calibración o reparación del Keysight (Agilent) UXR0252AP.
