Keysight (Agilent)

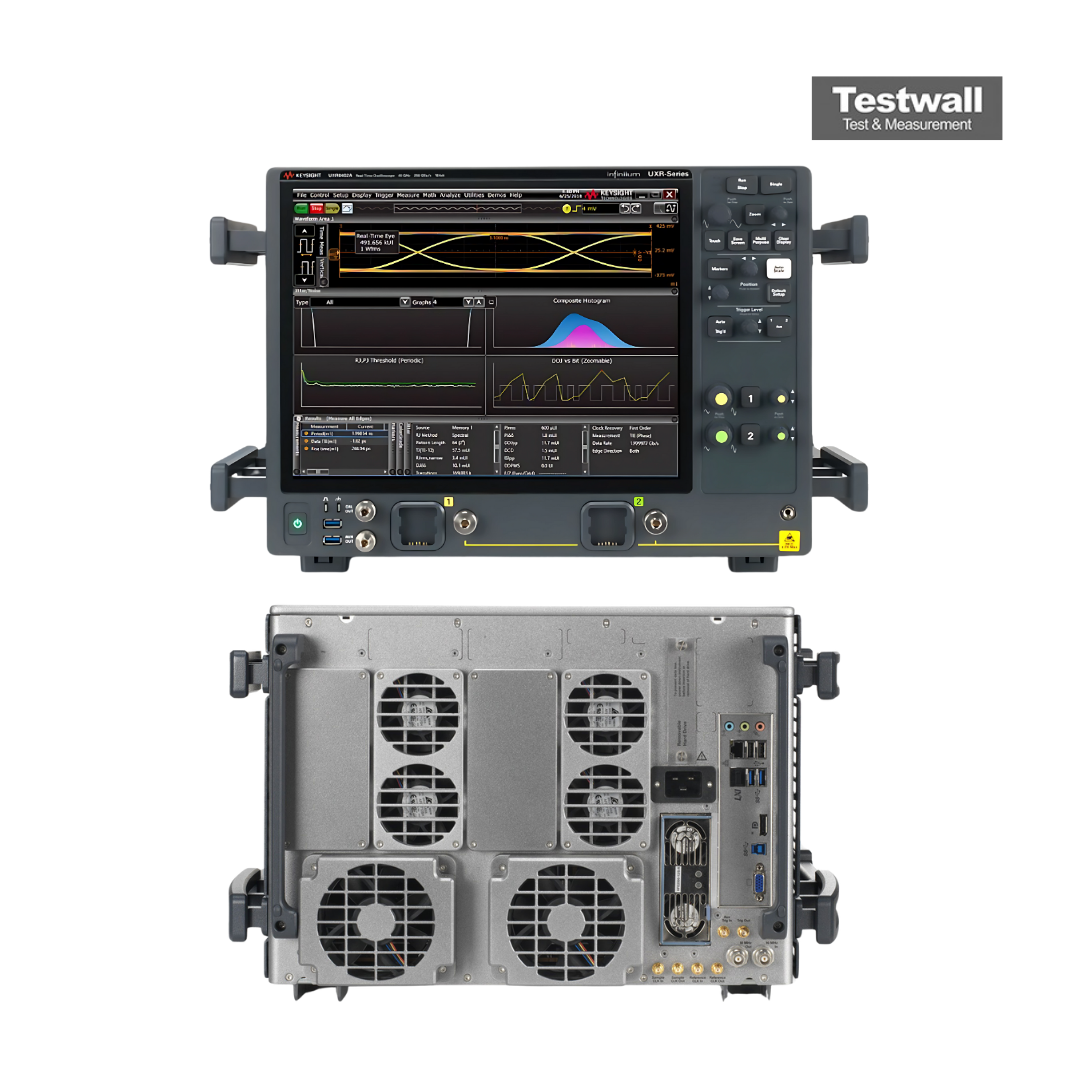

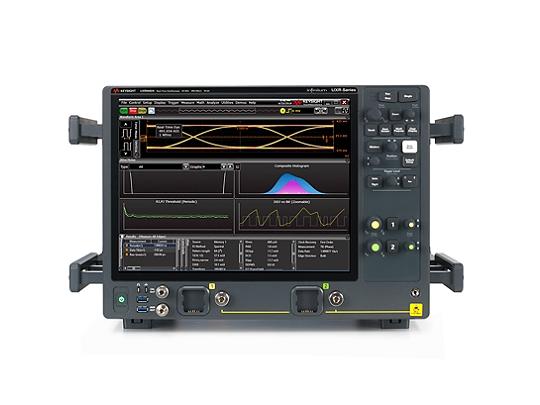

Keysight Technologies UXR0402A
40 GHz, 2 Channel Oscilloscope
40 GHz Ancho de banda
2 canales Número de canales
256 GSa/s Tasa de muestreo
10 bits Resolución vertical
2 Gpts por canal Profundidad de memoria
| Atributo | Valor |
|---|---|
| Ancho de banda | 40 GHz |
| Número de canales | 2 canales |
| Tasa de muestreo | 256 GSa/s |
| Resolución vertical | 10 bits |
| Profundidad de memoria | 2 Gpts por canal |
| Ruido de piso (Noise Floor) | 42 µVrms (típico) |
| Rango de voltaje de entrada | 50 mV/div a 1 V/div |
| Impedancia de entrada | 50 Ω |
| Rango de temperatura de funcionamiento | 0 °C a 40 °C |
| Interfaz de conectividad | USB, LAN (LXI), PCIe |
Keysight (Agilent) UXR0402A Options:
- UXR0402A - UXR0000-01G - 1 Gpt per channel High Performance Memory
- UXR0402A - UXR0000-02G - 2 Gpts per channel High Performance Memory
- UXR0402A - N2130A-01G - Memory upgrade from 200 Mpts to 1 Gpts per channel
- UXR0402A - N2130A-02G - Memory upgrade from 1 Gpt to 2 Gpts per channel
- UXR0402A - N2129BU-014 - Bandwidth upgrade – 4-Channel Infiniium UXR – 40 GHz to 50 GHz
- UXR0402A - N2129BU-015 - Bandwidth upgrade – 4-Channel Infiniium UXR – 50 GHz to 59 GHz
- UXR0402A - N2129BU-016 - Bandwidth upgrade – 4-Channel Infiniium UXR – 59 GHz to 70 GHz
- UXR0402A - N2129BU-017 - Bandwidth upgrade – 4-Channel Infiniium UXR – 70 GHz to 80 GHz
- UXR0402A - N2129BU-018 - Bandwidth upgrade – 4-Channel Infiniium UXR – 80 GHz to 100 GHz
- UXR0402A - N2129BU-019 - Bandwidth upgrade – 4-Channel Infiniium UXR – 100 GHz to 110 GHz
- UXR0402A - N2125A - Infiniium UXR Real-Time Oscilloscope Calibration Module, 1 mm
- UXR0402A - N2126A - Infiniium UXR Real-Time Oscilloscope Calibration Module, 1.85 mm
- UXR0402A - N2127A - Infiniium UXR Real-Time Oscilloscope Calibration Module, 3.50 mm
- UXR0402A - N2131A-01T - Additional removable SSD for Infiniium UXR Real-Time Oscilloscope – 960GB
- UXR0402A - N2156A - Rack mount kit for Infiniium UXR Real-Time Oscilloscopes
- UXR0402A - N2158A - UXR Real-Time Oscilloscope Transportation case
- UXR0402A - D9010DMBA - De-embedding Software (Precision Probe, InfiniiSim Basic)
- UXR0402A - D9020JITA - EZJIT Complete - Jitter and Vertical Noise Analysis Software for V/Z/UXR-Series
- UXR0402A - D9020SCNA - InfiniiScan Event Identification Software for V/Z/UXR-Series
- UXR0402A - D9020ASIA - Advanced Signal Integrity Software (EQ, InfiniiSim Adv, Crosstalk)
- UXR0402A - D9010UDAA - User Defined Application Software
- UXR0402A - D9010PAMA - Pulse Amplitude Modulation PAM-N Analysis Software
- UXR0402A - D9010POWA - Power Integrity Analysis Software
- UXR0402A - D9010EXMA - External Mixer Assistant Software
- UXR0402A - D9010BSEO - Infiniium Offline - Base Software
- UXR0402A - D9010ASIO - Infiniium Offline - Adv Signal Integrity Software (InfiniiSim Adv/EQ/Crosstalk)
- UXR0402A - D9010JITO - Infiniium Offline - EZJIT Complete Software
- UXR0402A - D9010HSPO - Infiniium Offline - High Speed Protocol Software Bundle
- UXR0402A - D9010LSPO - Infiniium Offline - Low Speed Protocol Software Bundle
- UXR0402A - D9010AUTP - Automotive Protocol Decode/Trigger Software (CAN, LIN, CAN-FD, FlexRay ...)
- UXR0402A - D9010BDLP - Protocol Decode/Trigger Software Bundle (Low Speed, Auto, MIPI, Military …)
- UXR0402A - D9010EKRP - 10G/100GBASE-KR 64b/66b and Link Training Decode/Trigger Software
- UXR0402A - D9010EMBP - Embedded Protocol Decode/Trigger Software (USB2.0, 10/100 ETH, PCIe 2/1 ...)
- UXR0402A - D9010LSSP - Low Speed Protocol Decode/Trigger Software (I2C, SPI, RS232, I2S, JTAG ...)
- UXR0402A - D9010MCDP - MIPI CSI and DSI Protocol Decode/Trigger Software (C-PHY and D-PHY)
- UXR0402A - D9010MILP - Military Protocol Decode/Trigger Software (ARINC 429, MIL-STD 1553, SpaceWire)
- UXR0402A - D9010MPLP - Low Speed MIPI Protocol Decode/Trigger Software (RFFE, I3C, SPMI)
- UXR0402A - D9010MPMP - MIPI M-PHY Protocol Decode/Trigger Software (DigRF, LLI, CSI-3, UniPro, UFS, SSIC)
- UXR0402A - D9010PCIP - Advanced PCIe Protocol Decode/Trigger Software (PCIe 4/3/2/1, SATA/SAS)
- UXR0402A - D9010USBP - USB 3.x Protocol Decode/Trigger Software (USB 3.1 - 5 and 10 Gbps)
| Model | UXR0402A |
|---|
El Keysight (Agilent) UXR0402A ofrece un impresionante ancho de banda de 5 a 110 GHz, bajo ruido, alto ENOB y resolución vertical de 10 bits para una visualización precisa de señales. Incluye herramientas completas de sondeo y análisis para aplicaciones avanzadas.
Ideal para el análisis mmWave de banda ancha, el UXR0402A ofrece un rendimiento EVM comparable a los mejores analizadores de señales y admite mediciones en dominio de tiempo, frecuencia y ruido de fase en una plataforma totalmente actualizable.
Testwall puede suministrar el Keysight (Agilent) UXR0402A usado, completamente probado. Con soporte experto y entrega global, Testwall garantiza instrumentación de alto rendimiento con fiabilidad y calidad de servicio incomparables. Contáctenos directamente si necesita calibración o reparación del Keysight (Agilent) UXR0402A.
