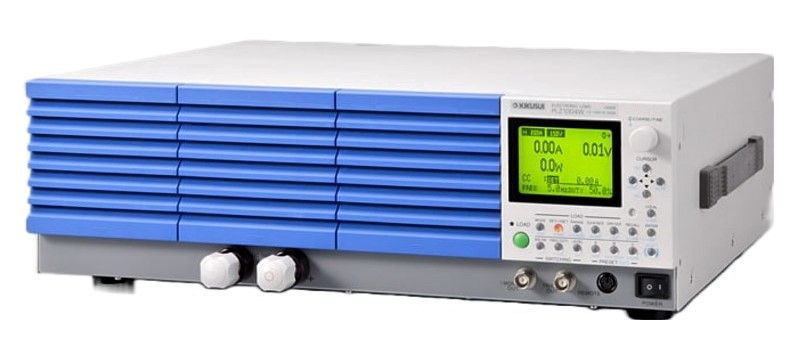

Kikusui PLZ1004WH
| Atributo | Valor |
|---|---|
| Voltaje máximo de entrada | 150 V |
| Corriente máxima de entrada | 240 A |
| Potencia máxima | 1000 W |
| Resistencia mínima de entrada | 0,04 Ω |
| Modos de operación | CC, CV, CR, CP |
| Interfaz de comunicación | USB, RS-232C, GP-IB (opcional) |
| Tensión de alimentación | 100/200 V CA, 50/60 Hz |
| Dimensiones (An x Al x Pr) | 213 mm x 88 mm x 451 mm |
| Peso | Aproximadamente 9 kg |
| Temperatura de operación | 0 °C a 40 °C |
Kikusui PLZ1004WH Options:
- PLZ1004WH - PLZ2004WHB - Booster unit (exclusively for PLZ1004WH, 100 A / 2000 W, up to 4 units connectable for 9 kW/450 A)
- PLZ1004WH - PC01-PLZ-4W - Parallel operation cable (for connecting same-model units in parallel)
- PLZ1004WH - PC02-PLZ-4W - Parallel operation cable (for connecting main unit and booster)
- PLZ1004WH - Wavy for PLZ-4W - Sequence creation and control software (Windows 7/Windows 8)
| Model | PLZ1004WH |
|---|
KIKUSUI PLZ1004WH DC Electronic Load
The Kikusui PLZ1004WH DC Electronic Load is a multifunctional system designed to offer the highest levels of reliability and safety. The electronic load contains a stable and high performance current-control circuit that enables high-speed load simulations with maximum operating voltage of 650V. In addition, its CPU control feature works to improve operability and multifunctional capability. The high-precision cur settings provide you with sufficient resolution. The PLZ1004WH comes standard with GPIB, RS232C, and USB communication functions, that can be easily incorporated into a wide range of test and inspection systems.
The Kikusui PLZ1004WH can be used to evaluate EV and HEV in-vehicle chargers, DC/ DC converters, and battery cells; evaluate power supplies for high-voltage DC electric supply systems; perform PFC tests on European and other three-phase 400 V system input power supplies; and evaluate and test high-voltage parts related to such equipment. The PLZ1004WH is equipped with six operation modes: constant current, constant resistance, constant voltage, constant power, constant cur + constant voltage, and constant resistance + constant voltage modes. The front panel is the common design in all of PLZ-4W Series. Since operability is uniform, tests can be set up quickly and easily.
Specifications for the KIKUSUI PLZ1004WH DC Electronic Load Include:
| Voltage Range | 5 to 650V |
| Cur Range | 50A |
| Total Power | 1000W |
| Min Operating Voltage | 50mV |
