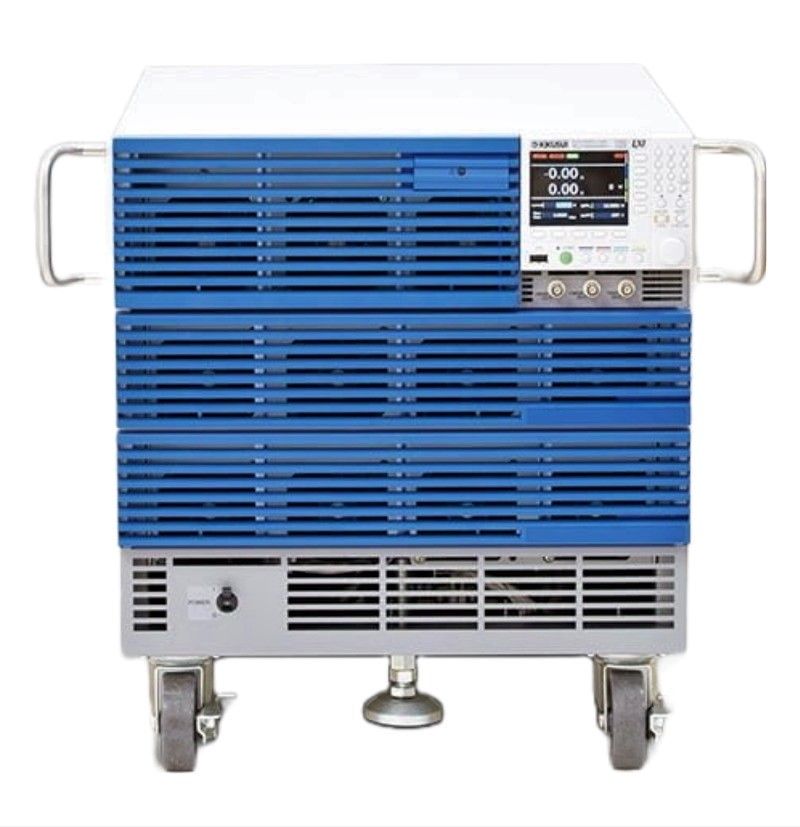

Kikusui PLZ12005WH
| Atributo | Valor |
|---|---|
| Potencia máxima | 12000 W |
| Voltaje máximo de entrada | 800 V |
| Corriente máxima | 240 A |
| Número de canales | 1 |
| Modos de operación | CC, CV, CR, CP |
| Interfaz de comunicación | USB, RS-232, GP-IB (opcional) |
| Tensión de alimentación | 200/208 V CA, trifásico |
| Dimensiones (An x Al x Pr) | 426 mm x 177 mm x 600 mm |
| Peso | Aproximadamente 30 kg |
| Rango de temperatura de funcionamiento | 0 °C a 40 °C |
Kikusui PLZ12005WH Options:
- PLZ12005WH - PIA5100 - GPIB Converter (converts RS232C or USB to GPIB, enabling connection of a remote controller using GPIB)
- PLZ12005WH - PC02-PLZ-5W - Parallel Operation Signal Cable Kit (one cable required for each slave/booster unit, cable length: 1m)
- PLZ12005WH - KRB9 - Rack Mount Bracket for EIA inch racks
- PLZ12005WH - KRB400-PCR-LE - Rack Mount Bracket for JIS millimeter racks
| Model | PLZ12005WH |
|---|
KIKUSUI PLZ12005WH High Power DC Electronic Load
Thanks to the highly power dense design of the Kikusui PLZ12005WH, this electronic load can sink up to 20kW of power in a single unit. Load simulation can be achieved faster than ever before thanks to the reliable, high speed design of the PLZ5WH cur control circuits. Accurate cur measures can be made with extremely high setting resolution. A color LCD display allows for highly visible, user-friendly front panel operation. RS232C, USB, and LAN digital interfaces are included as standard for simple integration into any system.
The Kikusui PLZ12005WH boasts a 20 uS rise time, easily satisfying the critical needs of power supply evaluation tests demanding a fast transient response. In ARB mode arbitrary I-V characteristics can be set by entering multiple I-V points (voltage and cur value set points). 3 to 100 points can be registered and the spaces between all points are automatically linearly interpolated. The sine function alternates the cur sinusoidally. This is ideal for superimposed ripple testing for high capacity power supplies and batteries. The PLZ12005WH can be controlled and monitored with an external device. The external control terminals are isolated from the load input terminals.
Specifications for the KIKUSUI PLZ12005WH High Power DC Electronic Load Include:
| Voltage | 10 to 800V |
| Current | 0 to 240A |
| Power | 12kW |
| Rise Time | 20 μs |
