Kikusui PLZ2005WH2
| Atributo | Valor |
|---|---|
| Potencia máxima | 2000 W |
| Tensión máxima | 800 V |
| Corriente máxima | 240 A |
| Resistencia mínima | 0,04 Ω |
| Modos de operación | CC, CV, CR, CP |
| Interfaz de comunicación | USB, GP-IB (IEEE 488), RS-232C |
| Tensión de alimentación | 100 - 240 V CA, 50/60 Hz |
| Dimensiones (An x Al x Pr) | 426 mm x 177 mm x 600 mm |
| Peso | Aproximadamente 30 kg |
| Temperatura de funcionamiento | 0 °C a 40 °C |
Kikusui PLZ2005WH2 Options:
- PLZ2005WH2 - GPIB - GPIB Interface Option (via PIA5100 GPIB Converter)
- PLZ2005WH2 - PC01-PLZ-5W - Parallel Operation Signal Cable (approx. 30 cm)
- PLZ2005WH2 - PC02-PLZ-5W - Parallel Operation Signal Cable (approx. 1 m)
- PLZ2005WH2 - KRB3-TOS - Rack Mount Bracket for EIA inch racks
- PLZ2005WH2 - KRB150-TOS - Rack Mount Bracket for JIS millimeter racks
- PLZ2005WH2 - SD033-PLZ-5WH2 - Wavy for PLZ-5WH2 Sequence Creation and Control Software
| Model | PLZ2005WH2 |
|---|

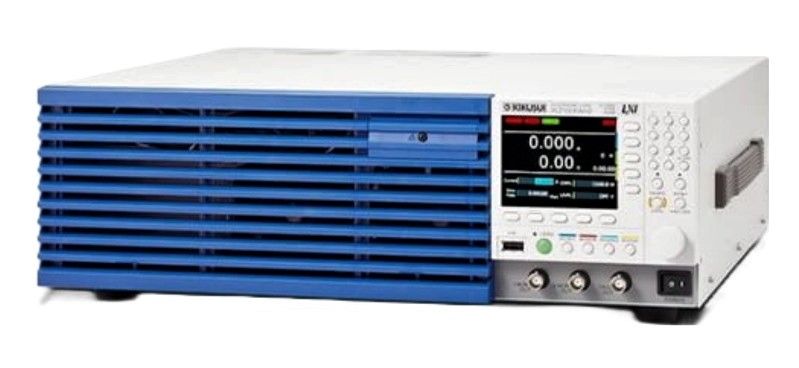

KIKUSUI PLZ2005WH2 DC Electronic Load
The Kikusui PLZ-2005WH2 high power DC electronic load is where durable, reliable ingenuity meets multifunctional and high power design. Load simulation can be achieved faster than ever before thanks to the reliable, high speed design of the PLZ-2005WH cur control circuits. Accurate cur measures can be made with extremely high setting resolution. A color LCD display allows for highly visible, user-friendly front panel operation. RS232C, USB, and LAN digital interfaces are included as standard for simple integration into any system.
There are five operation modes are available on the Kikusui PLZ-2005WH2: Constant cur (CC), Constant resistance (CR), Constant voltage (CV), Constant power (CP), and Arbitrary I-V characteristics (ARB) mode. In ARB mode, arbitrary I-V characteristics can be set by registering multiple I-V characteristic points (pairs of voltage and cur values). Three up to 100 points can be registered, and the space between two points is linearly interpolated. The Kikusui PLZ-2005WH2 series boasts a 20 μs rise time, easily satisfying the critical needs of power supply evaluation tests demanding a fast transient response.
Specifications for the KIKUSUI PLZ2005WH2 DC Electronic Load Include:
| Operating Voltage | 10V to 1000V |
| Max Current | 40A |
| Total Power | 2000W |
| Rise Time | 20 μs |
