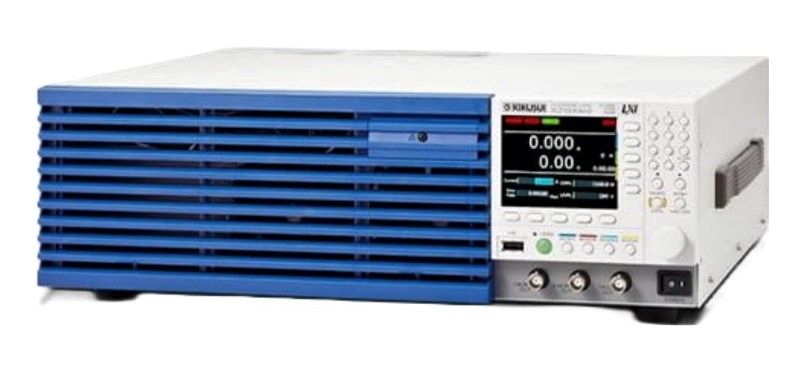

Kikusui PLZ4005WH2
| Atributo | Valor |
|---|---|
| Tensión máxima | 800 V |
| Corriente máxima | 120 A |
| Potencia máxima | 4000 W |
| Resistencia mínima | 0,04 Ω |
| Modos de operación | CC, CV, CR, CP |
| Interfaz de comunicación | USB, RS-232C, GP-IB (opcional) |
| Tensión de alimentación | 100/200 V CA, 50/60 Hz |
| Dimensiones (An x Al x Pr) | 430 x 177 x 600 mm |
| Peso | Aproximadamente 30 kg |
| Temperatura de funcionamiento | 0 °C a 40 °C |
Kikusui PLZ4005WH2 Options:
- PLZ4005WH2 - PIA5100 - GPIB Converter (converts RS232C or USB to GPIB for remote controller connection)
- PLZ4005WH2 - PC01-PLZ-5W - Parallel Operation Signal Cable (approx. 30 cm, one required per slave/booster unit)
- PLZ4005WH2 - PC02-PLZ-5W - Parallel Operation Signal Cable (approx. 1 m, one required per slave/booster unit)
- PLZ4005WH2 - KRB3-TOS - Rack Mount Bracket for EIA inch racks
- PLZ4005WH2 - KRB150-TOS - Rack Mount Bracket for JIS millimeter racks
- PLZ4005WH2 - SD033-PLZ-5WH2 - Wavy for PLZ-5WH2 Sequence Creation and Control Software
| Model | PLZ4005WH2 |
|---|
KIKUSUI PLZ4005WH2 DC Electronic Load
The Kikusui PLZ-4005WH2 high power DC electronic load is where durable, reliable ingenuity meets multifunctional and high power design. Load simulation can be achieved faster than ever before thanks to the reliable, high speed design of the PLZ-4005WH cur control circuits. Accurate cur measures can be made with extremely high setting resolution. A color LCD display allows for highly visible, user-friendly front panel operation. RS232C, USB, and LAN digital interfaces are included as standard for simple integration into any system.
There are five operation modes are available on the Kikusui PLZ-4005WH2: Constant cur (CC), Constant resistance (CR), Constant voltage (CV), Constant power (CP), and Arbitrary I-V characteristics (ARB) mode. In ARB mode, arbitrary I-V characteristics can be set by registering multiple I-V characteristic points (pairs of voltage and cur values). Three up to 100 points can be registered, and the space between two points is linearly interpolated. The Kikusui PLZ-4005WH2 series boasts a 20 μs rise time, easily satisfying the critical needs of power supply evaluation tests demanding a fast transient response.
Specifications for the KIKUSUI PLZ4005WH2 DC Electronic Load Include:
| Operating Voltage | 10V to 1000V |
| Max Current | 80A |
| Total Power | 4000W |
| Rise Time | 20 μs |
