Kikusui PXB20K-1000
| Atributo | Valor |
|---|---|
| Potencia máxima de salida | 20.000 W (20 kW) |
| Tensión de salida máxima | 1.000 V |
| Corriente de salida máxima | 40 A |
| Número de canales | 1 canal |
| Interfaz de comunicación | USB, LAN (LXI), RS-232C, GPIB (opcional) |
| Modo de operación | Fuente de alimentación regenerativa bidireccional (carga y fuente) |
| Tensión de entrada (CA) | 200 V CA trifásico (±10%) |
| Factor de potencia de entrada | 0,99 o superior |
| Eficiencia | 90% o superior |
| Dimensiones (An × Al × Pr) | 426 mm × 132 mm × 600 mm (3U) |
| Model | PXB20K-1000 |
|---|

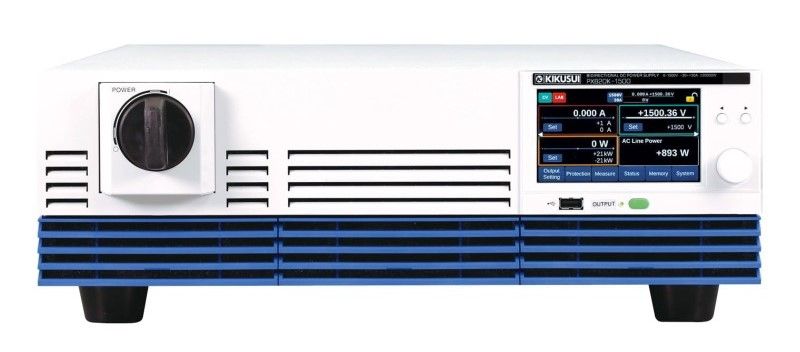

KIKUSUI PXB20K-1000 Bi-Directional DC Power Supply
The Kikusui PXB20K-1000 Bi-Directional DC Power Supply offers a compact and efficient solution by condensing a 20 kW large-capacity output into a 3U-size chassis. This versatile power supply is not only capable of handling high voltage of 1000V but also excels in bidirectional operation, providing both power and regeneration functionalities in a single unit. This innovation creates a new power supply test environment suitable for electrical and electronic equipment with increasingly higher power requirements. With a range of analog, digital, and communication interfaces, it caters to diverse needs at various stages of research, development, and manufacturing, making it a cutting-edge choice for supporting advanced technologies.
The Kikusui PXB20K-1000 Bi-Directional DC Power Supply ensures stable operation even with capacitive loads, thanks to its adjustable slew rate and response settings. With the ability to operate up to 10 units in parallel, totaling 200 kW, it provides a high-capacity system for demanding tasks. It offers various operating modes, such as constant voltage (CV), constant cur (CC), and constant power (CP), and supports preset operations with up to 30 programs and 10,000 steps. Additionally, the PXB20K-1000 includes features like SEAM mode, external device control via the EXT CONT connector, and the capability to simulate internal resistance of rechargeable batteries and other devices.
Specifications for the KIKUSUI PXB20K-1000 Bi-Directional DC Power Supply Include:
| Voltage | 1000 V |
| Current | 60 A |
| Power | 20 kW |
| Ripple Noise | 500 mV |
