Magna Power MTD300-833
| Atributo | Valor |
|---|---|
| Voltaje de salida | 300 V |
| Corriente de salida | 833 A |
| Potencia máxima | 250 kW |
| Tipo de fuente de alimentación | Fuente de alimentación de CC programable |
| Regulación de voltaje | 0,05% + 0,05% del fondo de escala |
| Regulación de corriente | 0,1% + 0,1% del fondo de escala |
| Interfaz de control | Analógica, RS-232, GPIB, Ethernet (opcional) |
| Tensión de entrada (CA) | 208/480 V trifásico, 50/60 Hz |
| Refrigeración | Refrigeración forzada por aire |
| Dimensiones (An x Al x Pr) | Formato rack 19 pulgadas, múltiples unidades de rack |
Magna Power MTD300-833 Options:
- MTD300-833 - +BD - Blocking Diode: Internally heat-sunk protection diode on the positive output terminal, protects output from reverse voltage up to 1200 Vdc
- MTD300-833 - +ISO - High Isolation Output: Enables higher voltage output isolation rating of ±6000 Vdc maximum output voltage to ground
- MTD300-833 - +HS - High Slew Rate Output: Reduced output capacitance and lower loss bleed resistors for faster voltage transitions (4 ms voltage, 8 ms current, 0 to 63%)
- MTD300-833 - +GPIB - IEEE-488 GPIB Communications: General purpose digital interface for instrument control, up to 15 devices per bus, data rates up to 1 Mbyte/sec
- MTD300-833 - +LXI - LXI TCP/IP Ethernet Communications: LXI Standard (Class C) version 1.4 certified, includes embedded web-server for remote browser-based control and monitoring
| Model | MTD300-833 |
|---|

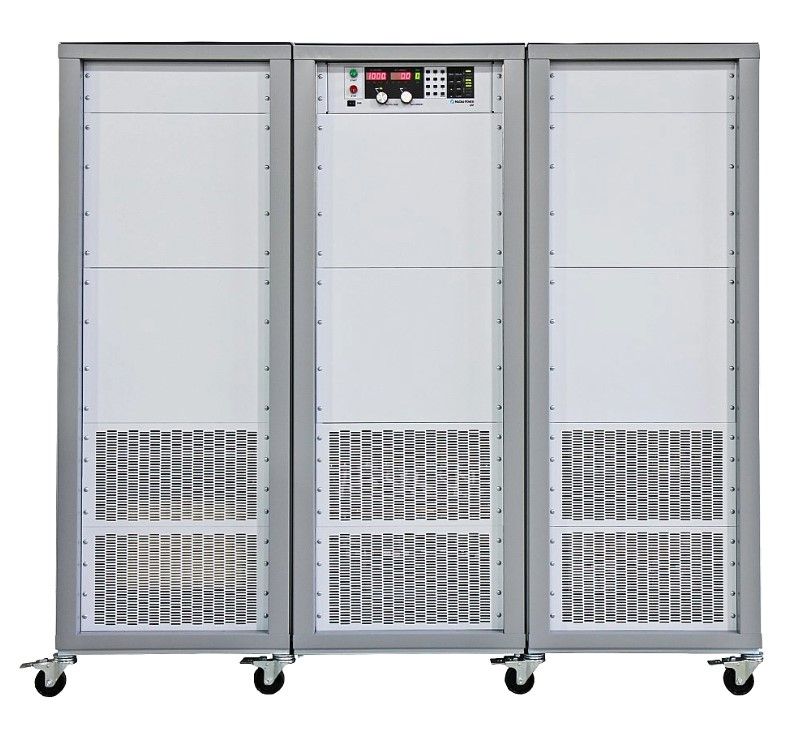

MAGNA-POWER MTD300-833 Programmable DC Power Supply
The Magna-Power MTD300-833 Programmable DC Power Supply is a high-power programmable power supply known for its reliability and advanced technology. This unit, offering individual power output of 250 kW, utilizing current-fed power processing technology and high-frequency IGBT-based components. The MTD300-833 is among the largest standard switch-mode power supply available, which reduces the number of switching components compared to smaller modules. Multi-megawatt scaling is achieved using the UID47 device for master-slave control.
The Magna-Power MTD300-833 unit includes an input AC breaker rated for full power to enhance safety. The 250 kW modules come with an embedded 12-pulse harmonic neutralizer for low total harmonic distortion, and additional 24-pulse and 48-pulse neutralizers are available. The MTD300-833 offers various features, including remote programming, high accuracy measurements, master-slave functionality, and remote sensing. The MTD300-833's front panel provides a digital display and various control options, including modulation for non-linear power profiles. Magna-Power's Harmonic Neutralizers help reduce harmonic components, ensuring power quality. They offer 12-pulse, 18-pulse, 24-pulse, or 48-pulse waveforms to suit diffe applications, with the aim of minimizing harmonic-related issues and meeting IEEE 519 standards.
Specifications for the MAGNA-POWER MTD300-833 Programmable DC Power Supply Include:
| Total Power | 250 kW |
| Max Voltage | 300 V |
| Max Current | 833 A |
| Efficiency | 90 % to 92% |
