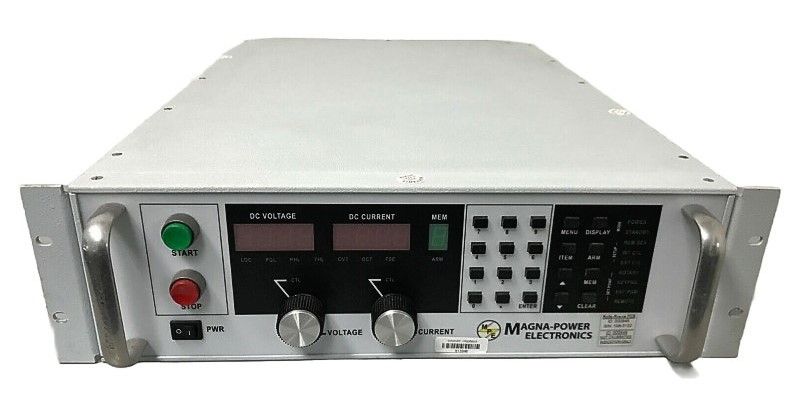

Magna Power PQD600-5
| Atributo | Valor |
|---|---|
| Tensión de salida | 600 V |
| Corriente de salida | 5 A |
| Potencia máxima | 3000 W |
| Tensión de entrada | 208/240 V CA monofásico |
| Regulación de tensión | 0,05% + 0,05% de la escala completa |
| Regulación de corriente | 0,05% + 0,05% de la escala completa |
| Interfaz de programación | RS-232, RS-485, GPIB, Ethernet (opcional) |
| Modo de operación | Fuente de tensión constante / Fuente de corriente constante |
| Factor de forma | Montaje en rack 3U |
| Rango de temperatura de operación | 0 °C a 50 °C |
Magna Power PQD600-5 Options:
- PQD600-5 - 240SP - Input Voltage 240 Vac, Single Phase
- PQD600-5 - 208 - Input Voltage 208 Vac, 50-400 Hz, 3-Phase
- PQD600-5 - 240 - Input Voltage 240 Vac, 50-400 Hz, 3-Phase
- PQD600-5 - 380 - Input Voltage 380 Vac, 50-400 Hz, 3-Phase
- PQD600-5 - 415 - Input Voltage 415 Vac, 50-400 Hz, 3-Phase
- PQD600-5 - 440 - Input Voltage 440 Vac, 50-400 Hz, 3-Phase
- PQD600-5 - 480 - Input Voltage 480 Vac, 50-400 Hz, 3-Phase
- PQD600-5 - IEEE-488 - Optional IEEE-488 Interface
- PQD600-5 - Ethernet - Optional Ethernet Interface
- PQD600-5 - USB - Optional USB Interface
- PQD600-5 - EMI - Optional EMI Filter
- PQD600-5 - Water Cooling - Optional Water Cooling
- PQD600-5 - Custom - Custom Output Voltage
| Model | PQD600-5 |
|---|
MAGNA-POWER PQD600-5 DC Power Supply
Magna-Power Electronics' PQ SERIES III DC power supplies combines the best of dc power processing with multiprocessor embedded control. A combination of high and medium frequency power processing technologies improves response, shrinks package size, and reduces cost. The Magna-Power PQD600-5 DC power supplies are cur fed and are more tolerant to abusive loads than conventional switching power supplies. The power supply can be programmed to have its control functions accessible from the front panel, rear connector, or through RS232 communications. Sensing can be established at the output terminal of the power supply or through a rear terminal block for sensing at the load.
The Magna-Power PQD600-5 DC power supplies are designed to operate at rated load 24 hours per day. Standard air cooled units are equipped with variable speed, load dependent blowers to maintain comfortable margins for removing heat from sensitive power semiconductors. Variable speed operation maximizes fan life and a minimizes external environmental hazards. The remote interface Software is shipped with PQ SERIES III power supplies. The software provides the user with a quick method to operate a Magna-Power Electronics' power supply under computer control. The PQD600-5 DC power supplies have one-hundred memory states available to program voltage, current, over voltage trip, over cur trip, and time period. Set points can be auto sequenced with time or external triggering. Special programming codes allow repeating to create a power function generator. The first 10 memory states are displayed on the front panel to simplify programming tasks
Specifications for the MAGNA-POWER PQD600-5 DC Power Supply Include:
| Voltage Range | 0 - 600V |
| Cur Range | 0 - 5A |
| Power | 3300W |
| Ripple | 250mV (rms) |
