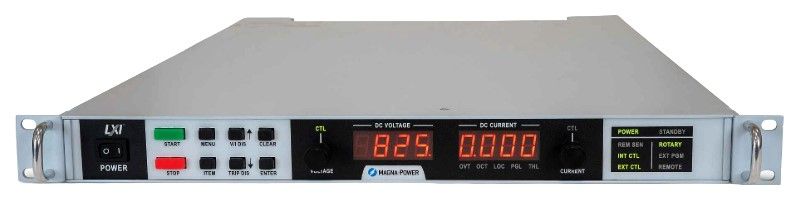

Magna Power SL1000-1.5
| Atributo | Valor |
|---|---|
| Tensión de salida | 1000 V |
| Corriente de salida | 1,5 A |
| Potencia máxima | 1500 W |
| Tipo de fuente de alimentación | Fuente de alimentación programable CC |
| Interfaz de control | Analógica, RS-232, RS-485, Ethernet (opcional) |
| Regulación de línea y carga | 0,02% o 20 mV (el mayor de ambos) |
| Rizado y ruido | 0,05% o 500 mV (el mayor de ambos) |
| Temperatura de operación | 0 °C a 50 °C |
| Tensión de entrada | 208/240 V CA, monofásico o trifásico |
| Factor de forma | Montaje en rack 3U |
Magna Power SL1000-1.5 Options:
- SL1000-1.5 - +HS - High Slew Rate Output
- SL1000-1.5 - +GPIB - IEEE-488 GPIB Communications
- SL1000-1.5 - +LXI - LXI TCP/IP Ethernet Communications
- SL1000-1.5 - +RUG - Ruggedized
| Model | SL1000-1.5 |
|---|
Magna-Power SL1000-1.5 Programmable DC Power Supply
The Magna-Power SL1000-1.5 Programmable DC Power Supply is known for it's compact size, high efficiency, and reliability. It features programmable voltage, current, and protection settings along with high accuracy measurements. The SL1000-1.5 offers 1.5 kW of power in a 1U form factor, saving valuable rack space. It converts AC power to DC power efficiently, reducing heat generation and improving energy savings. Magna-Power SL1000-1.5 Programmable DC Power Supply is suitable for a wide range of applications due to it's flexible output capabilities.
Magna-Power SL1000-1.5 Programmable DC Power Supply supports master-slaving strategy helps to ensures no degradation in performance as units are added in parallel or series by providing gate drive signals directly from the master to the slave units. This eliminates the noise susceptibility when sending analog control references over long distances. The SL1000-1.5 utilizes high-frequency IGBT- and MOSFET-based power processing in a current-fed topology which enhances control and system protection, ensuring self-protection of the power supply. Magna-Power SL1000-1.5 Programmable DC Power Supply includes RS232 communication interface standard with optional LXI TCP/IP Ethernet (+LXI) and IEEE-488 GPIB (+GPIB) options.
Specifications for the Magna-Power SL1000-1.5 Programmable DC Power Supply Include:
| Max Voltage (Vdc) | 1000 V |
| Max Cur (Adc) | 1.5 A |
| Power | 1500W |
| Efficiency | 95% |
