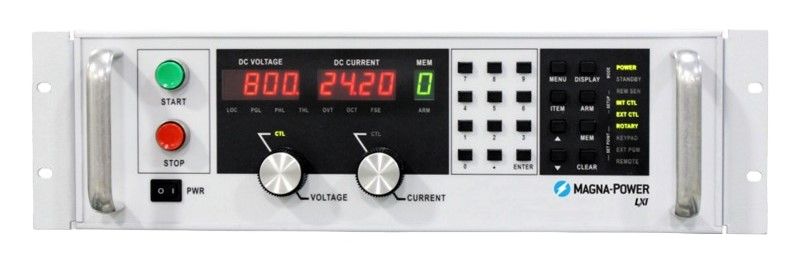

Magna Power TSD125-120
| Atributo | Valor |
|---|---|
| Tensión de salida | 125 V |
| Corriente de salida | 120 A |
| Potencia máxima | 15 000 W |
| Tipo de fuente de alimentación | Fuente de alimentación CC programable |
| Interfaces de control | Analógica, RS-232, RS-485, Ethernet, GPIB (opcional) |
| Tensión de entrada (CA) | 208 V / 240 V trifásico |
| Regulación de tensión | 0,05 % del valor máximo |
| Regulación de corriente | 0,1 % del valor máximo |
| Temperatura de funcionamiento | 0 °C a 50 °C |
| Factor de forma | Montaje en bastidor (rack), 3U |
Magna Power TSD125-120 Options:
- TSD125-120 - SP - 208/240 Vac Single-Phase Input (5 kW Only)
- TSD125-120 - CAB1 - Cabinet and Integration (32" x 24" x 31.5", 12U)
- TSD125-120 - CAB2 - Cabinet and Integration (51.5" x 24" x 31.5", 24U)
- TSD125-120 - CAB3 - Cabinet and Integration (67" x 24" x 31.5", 30U)
- TSD125-120 - CAB4 - Cabinet and Integration (75" x 24" x 31.5", 36U)
- TSD125-120 - +ISO - High Isolation Output
- TSD125-120 - +HS - High Slew Rate Output
- TSD125-120 - +GPIB - IEEE-488 GPIB Interface
- TSD125-120 - +LXI - LXI TCP/IP Ethernet Interface
- TSD125-120 - PPPE - Photovoltaic Power Profile Emulation
- TSD125-120 - RS485 - RS-485 Converter
- TSD125-120 - UID - UID47: Universal Interface Device
- TSD125-120 - USB - USB Edgeport Converter
- TSD125-120 - +WC - Water Cooling
| Model | TSD125-120 |
|---|
MAGNA-POWER TSD125-120 DC Power Supply
Magna-Power Electronics TSD125-120 provides a wide voltage and cur range while still maintaining among the highest power density rack-mount packaging. The TSD125-120 covers voltages up to 125 Vdc (floating) and cur levels up to 120 Adc. All TS Series power supplies come standard with isolated 37-pin external I/O, RS232, Remote Interface Software, IVI drivers for integration into a variety of programming environments. The D Version front panel adds a 10-key digital front panel entry, memory sequencing, and modulation capabilities for non-linear output profile emulation.
All TS Series Magna-Power DC power supplies come with a dedicated National Instruments LabVIEW driver, Interchangeable Virtual Instrument (IVI) driver, and support for a wide range of Standard Commands for Programmable Instrumentation (SCPI). Magna-Power Electronics programmable DC power supplies are designed to be as versatile and expandable as possible. A variety of options are available allowing the product to deviate from its standard specifications.
Specifications for the MAGNA-POWER TSD125-120 DC Power Supply Include:
| Voltage | 125V |
| Current | 120A |
| Power | 15 kW |
| Efficiency | ‰¥ 86% at full load |
