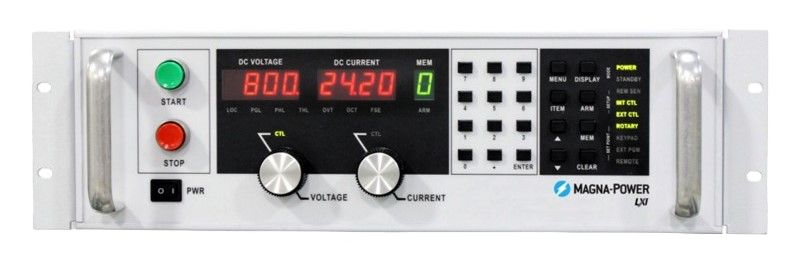

Magna Power TSD80-125
| Atributo | Valor |
|---|---|
| Tensión de salida | 80 V |
| Corriente de salida | 125 A |
| Potencia máxima | 10.000 W |
| Tipo de fuente de alimentación | Fuente de alimentación programable DC |
| Regulación de tensión | 0,02% + 20 mV |
| Regulación de corriente | 0,02% + 25 mA |
| Interfaz de control | Analógica, RS-232, GPIB, Ethernet (opcionales) |
| Tensión de entrada (alimentación) | 208/240 V AC, trifásico |
| Refrigeración | Refrigeración por aire forzado |
| Dimensiones (U de rack) | 3U |
Magna Power TSD80-125 Options:
- TSD80-125 - +BD - Blocking Diode: Internally heat-sunk protection diode on the positive output terminal, protects output from reverse voltage up to 1200 Vdc
- TSD80-125 - +ISO - High Isolation Output: Enables higher voltage output isolation rating of ±(3000 Vdc + Vo/2) for models rated 250 Vdc to 1000 Vdc
- TSD80-125 - +HS - High Slew Rate Output: Reduces output capacitance for faster voltage transitions (4 ms voltage slew, 8 ms current slew from 0 to 63%)
- TSD80-125 - +GPIB - IEEE-488 GPIB Communications: Adds IEEE-488 GPIB digital interface for instrument control and monitoring
- TSD80-125 - +LXI - LXI TCP/IP Ethernet Communications: Adds LXI Class C certified TCP/IP Ethernet interface with embedded web-server
- TSD80-125 - +WC - Water Cooling: Replaces standard air cooling with water cooling via chill plates and integrated central heat exchanger (1/4" NPT male connections)
| Model | TSD80-125 |
|---|
MAGNA-POWER TSD80-125 DC Power Supply
The Magna-Power TSD80-125 DC Power Supply is a versatile and high-power solution for various applications. This power supply covers voltages up to 80 Vdc (floating) and cur levels up to 125 Adc. The TSD80-125 DC power supply utilizes a robust power conversion topology based on high-frequency IGBT-based power processing in current-fed topology, providing enhanced control, self-protection, and stability under fault conditions. In addition to their impressive power capabilities, the Magna-Power TSD80-125 DC power supply offers advanced programming features, including high accuracy programming and measurement, simultaneous measurement interfaces, and SCPI remote programming API compatibility.
The Magna-Power TSD80-125 DC Power Supply is designed with safety in mind, incorporating an AC mechanical contactor with in-rush limiter and extensive diagnostic functions to protect both the unit and the system. The TSD80-125 DC power supply supports high-performance plug and play master-slaving, enabling easy expansion of power capabilities by adding additional units. With various options available, these power supplies can be tailored to suit specific application requirements. The Magna-Power TSD80-125 DC Power Supply comes with isolated 37-pin external I/O, RS232, Remote Interface Software, and IVI drivers for easy integration into various programming environments. All MagnaDC power supplies come standard with an IVI driver and an NI LabVIEW driver featuring a full set of VIs.
Specifications for the MAGNA-POWER TSD80-125 DC Power Supply Include:
| Voltage | 80V |
| Current | 125A |
| Power | 10 kW |
| Efficiency | ‰¥ 90% at full load |
