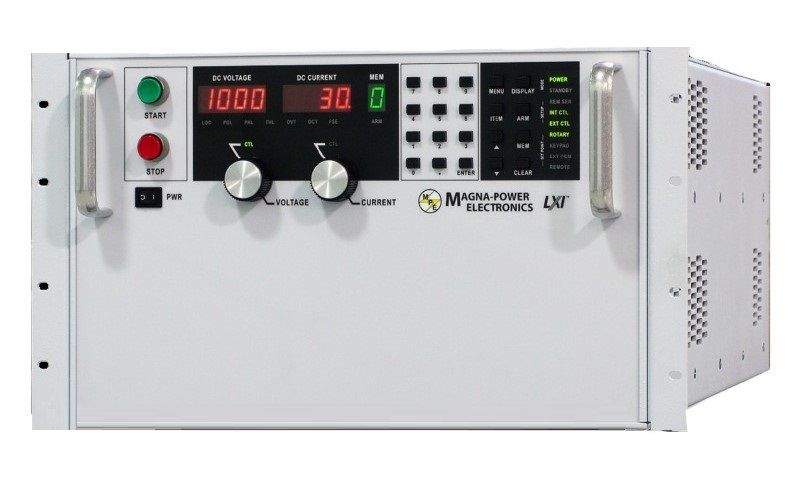

Magna Power TSD800-30
| Atributo | Valor |
|---|---|
| Tensión de salida | 800 V |
| Corriente de salida | 30 A |
| Potencia máxima | 24.000 W |
| Regulación de tensión | 0,02% + 20 mV |
| Regulación de corriente | 0,02% + 6 mA |
| Tensión de entrada | 208/240 V CA trifásico |
| Interfaz de comunicación | RS-232, RS-485, Ethernet, GPIB (opcional) |
| Dimensiones (An x Al x Pr) | 482,6 x 132,1 x 711,2 mm (3U) |
| Temperatura de funcionamiento | 0 °C a 50 °C |
| Certificaciones | CE, UL |
Magna Power TSD800-30 Options:
- TSD800-30 - SP - 208/240 Vac Single-Phase Input (5 kW Only)
- TSD800-30 - CAB1 - Cabinet and Integration (32" x 24" x 31.5", 12U)
- TSD800-30 - CAB2 - Cabinet and Integration (51.5" x 24" x 31.5", 24U)
- TSD800-30 - CAB3 - Cabinet and Integration (67" x 24" x 31.5", 30U)
- TSD800-30 - CAB4 - Cabinet and Integration (75" x 24" x 31.5", 36U)
- TSD800-30 - +ISO - High Isolation Output
- TSD800-30 - +HS - High Slew Rate Output
- TSD800-30 - +GPIB - IEEE-488 GPIB Interface
- TSD800-30 - +LXI - LXI TCP/IP Ethernet Interface
- TSD800-30 - PPPE - Photovoltaic Power Profile Emulation
- TSD800-30 - RS485 - RS-485 Converter
- TSD800-30 - UID47 - Universal Interface Device
- TSD800-30 - USB - USB Edgeport Converter
- TSD800-30 - +WC - Water Cooling
| Model | TSD800-30 |
|---|
MAGNA-POWER TSD800-30 DC Power Supply
Magna-Power Electronics TSD800-30 provides a wide voltage and cur range while still maintaining among the highest power density rack-mount packaging. The TSD800-30 covers voltages up to 800 Vdc (floating) and cur levels up to 30 Adc. All TS Series power supplies come standard with isolated 37-pin external I/O, RS232, Remote Interface Software, IVI drivers for integration into a variety of programming environments. The D Version front panel adds a 10-key digital front panel entry, memory sequencing, and modulation capabilities for non-linear output profile emulation.
All TS Series Magna-Power DC power supplies come with a dedicated National Instruments LabVIEW driver, Interchangeable Virtual Instrument (IVI) driver, and support for a wide range of Standard Commands for Programmable Instrumentation (SCPI). Magna-Power Electronics programmable DC power supplies are designed to be as versatile and expandable as possible. A variety of options are available allowing the product to deviate from its standard specifications.
Specifications for the MAGNA-POWER TSD800-30 DC Power Supply Include:
| Voltage | 800V |
| Current | 30A |
| Power | 25 kW |
| Efficiency | ‰¥ 86% at full load |
