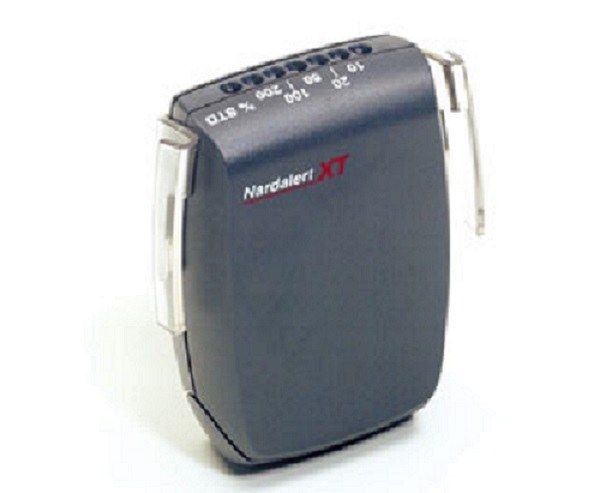

Narda Nardalert XT (D8862)
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 100 GHz |
| Frequency Sensitivity | +3/-1 dB |
| Sensors | Tri-sensor E-field: diode surface-area, diode dipole, thermocouple |
| Indicators | 5 LEDs at 10, 20, 50, 100, 200% of standard |
| Alarms | Alarm 1 default 50% (10-100% in 5% steps); Alarm 2 default 200%; vibrator |
| Overload | 3000% of standard (CW); 32 dB above standard (peak) |
| ELF Immunity | 6,000 V/m |
| Battery | 1 x AA alkaline; 800 h with LEDs and alarms off |
| Operating Temperature | -10 to +55 °C |
| Dimensions / Weight | 105 x 76 x 35 mm; 157 g |
Narda Nardalert XT (D8862) Options:
- Interface kit - PC interface for adjusting thresholds and settings
- Remote vibrator - External vibrating alarm
- Earphone - Audio alarm earphone
- Soft case - Soft case with belt clip, or for climber's harness
The Narda Nardalert XT D8862 is a body-worn personal RF monitor that warns the wearer when field levels rise above set thresholds. Its tri-sensor design (diode surface-area, diode dipole and thermocouple E-field sensors) covers 100 kHz to 100 GHz, so it handles multi-signal communications and combined communications/radar environments. The frequency response is shaped to the occupational exposure standard of the chosen version.
Five high-intensity LEDs (visible in sunlight), two audio alarms and an internal vibrator give the warnings. The 8862 series is the version without the 8860's continuous data logging; settings are changed with the optional interface kit.
Testwall can supply the used Narda Nardalert XT (D8862), fully tested, with a 12-month warranty and delivery across Europe. Calibration can be arranged on request before shipping. Please contact us if you need calibration or repair of the Narda Nardalert XT (D8862).
