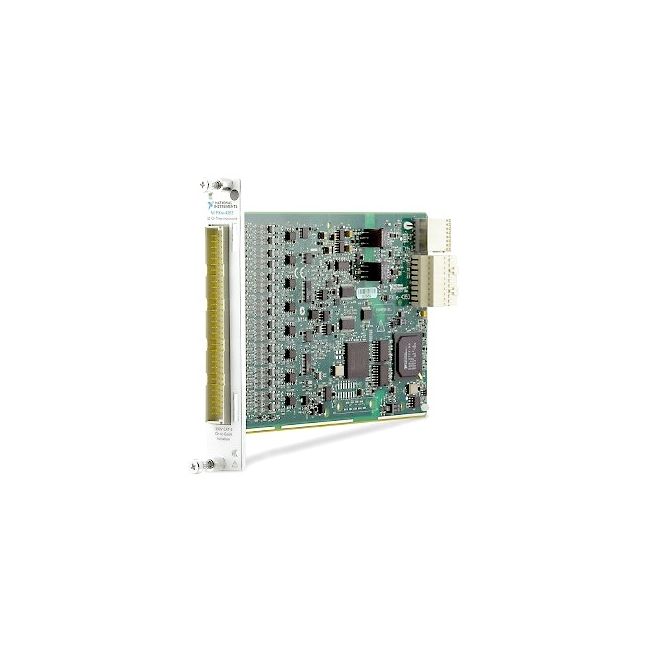

National Instrument PXIe-4353
| Fabricante | National Instruments |
| Modelo | PXIe-4353 |
| Producto | 32-Channel, 24-Bit, Thermocouple Input Module |
| Tipo | 1157 |
SKU
988772
The National Instruments PXIe-4353 is a high-accuracy, 32-channel thermocouple input module for PXI Express temperature-measurement systems. It combines 24-bit data acquisition and integrated signal conditioning to support reliable, scalable temperature monitoring in automated test, research, industrial, and environmental applications.
ni
+1
Designed for demanding multi-point measurements, the PXIe-4353 supports up to 32 thermocouple inputs, with eight cold-junction-compensation channels located close to the terminal connections when used with the appropriate NI terminal block. Two autozero channels provide offset compensation, while open-thermocouple detection helps identify disconnected or faulty sensors.
docs-be.ni
+1
The module uses three 24-bit delta-sigma ADCs and provides measurement rates of up to 90 S/s across all channels, with a ±80 mV voltage measurement range. Its 300 V bank isolation provides added flexibility when measuring thermocouples installed across distributed equipment or electrically noisy industrial environments.
docs-be.ni
+1
Suitable for use in PXI Express systems, the NI PXIe-4353 is an excellent choice for applications including thermal characterization, component and product validation, battery and environmental testing, process monitoring, and high-channel-count temperature data logging.
More Information
| Model | PXIe-4353 |
|---|
