Pacific Power 3300AFX
| Atributo | Valor |
|---|---|
| Potencia de salida | 3300 VA |
| Tensión de salida | 0 - 300 V AC (monofásico/trifásico) |
| Frecuencia de salida | 45 Hz - 500 Hz |
| Distorsión armónica total (THD) | Menos del 0,5% a plena carga |
| Tensión de entrada | 208 V / 230 V AC, monofásico |
| Número de fases de salida | Monofásico o trifásico seleccionable |
| Regulación de tensión | ±0,1% de la tensión programada |
| Interfaz de control | Panel frontal con pantalla digital y control remoto GPIB/RS-232 |
| Dimensiones (An x Al x Pr) | 483 mm x 133 mm x 508 mm (formato rack 3U) |
| Peso | Aproximadamente 27 kg |
| Model | 3300AFX |
|---|
RENT PACIFIC POWER 3300AFX

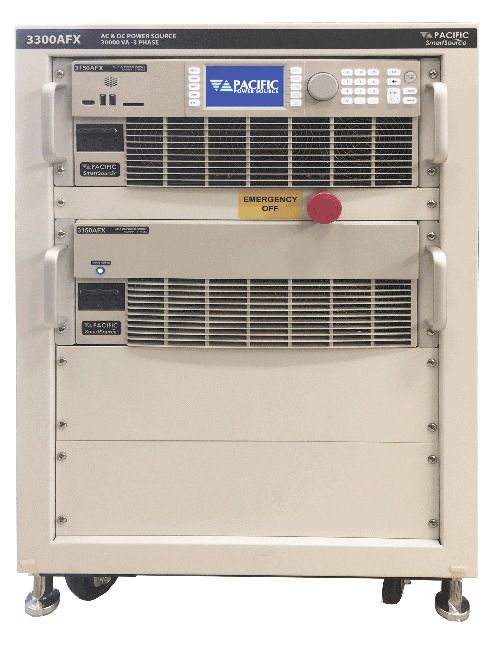

The Pacific Power 3300AFX Power Supply is a high power, single, split and three phase, AC, DC and AC+DC output capable Power Source. Using a modern user interface for ease of use, the 3300AFX and the other models inthe series are cost effective and fully programmable for both basic frequency conversion and advanced AC power line or DC power disturbance test applications.
Great attention has been placed on energy efficiency, ease of installation, and maximum power per cubic inch of rack space. Control and operational features provide a high degree of application versatility and ease of use for the test engineer. Applications range from simple, manually controlled frequency conversion to harmonic immunity testing and sophisticated transient simulation.
The 3300AFX is currently the highest density AC Source in the smallest possible package.
With the PPS 3300AFX, power conversion is achieved by digitally controlled, high frequency pulse width modulation, resulting in cool, quiet and efficient operation.
Key features of the Pacific Power 3300AFX AC Power Source include:
- AC Output, DC Output, AC+DC Output
- DC, 15 to 1,200 Hz Frequency Range
- Single, Constant Power mode 300V L-N/520V L-L/425Vdc voltage range offers wider operating range
- Precision True-RMS metering of Volts, Amps, Power, VA, Power Factor and Crest Factor
- Compatible with UPC Studio graphical user interface
- 1, 2 or 3 Phase Switch Selectable Output from front panel or bus command
- Sine, Square, Triangle, THD and Arbitrary waveforms
- Available in 208-240V or 380-480V 3 Phase AC input with Active PFC
- 99 stored programs for both static and dynamic Transient Testing
- Continuous Self Calibration (CSC)
- Precision Voltage Programming €“ 0.02% with CSC engaged in AC and DC modes
- Power Levels to 60 kVA
- Standard RS-232, USB and Ethernet Interface with SCPI compatibility
- LXI Compliant LAN/Ethernet with embedded web server
- IVI Instruments drivers
- CE (EMC/Safety) and Nemko (Safety) Marks
Specifications of the 3300AFX include:
- Rated Power: 30000VA
- Output Form: 1,2,3 Ø
- Output Volts - Max: 300VAC (L-N) and 425VDC
- Output Amps/Phs: 83.3A AC and 41.7A DC
- Input Power Form: 3Ø
Optional Test Standards Available:
Avionics:
- ABD0100.1.8 - Airbus A380, AC & DC Power Groups
- ABD0100.1.8.1 - Airbus A350, AC & DC Power Groups
- AMD24C - Airbus A400M, AC & DC Power Groups
- Boeing 787B3-0147 - B787, AC & DC Power Groups
- MIL-STD704 - US DoD, AC & DC Power Groups
- RTCA-DO160 Section B, AC & DC Power Groups
Other Optional Test Standards:
- IEC Test Suite - Includes IEC 61000-4-11, IEC 61000-4-14, IEC 61000-4-27, IEC 61000-4-28, IEC 61000-4-29p and IEC 61000-4-34
- MIL-STD 1399-300B - US DoD, Ship board Power, AC Power Groups
Applications for the PPS 3300AFX include:
AC or DC Test Power
The AFX Series Power Source is equipped with several powerful Digital Signal Processors to create a fully integrated test system. It supplies a variety of power conditions to the device under test and meters all output performance parameters.
AC+DC Test Power
Special test requirements such the application of a DC offset on an AC line or AC ripple on a DC supply output are supported by selecting the AC+DC Mode of operation.
Frequency/Voltage Conversion
The AFX Series is an excellent source of stable AC voltage over the frequency range of 15 to 1,200 Hz. The output frequency is accurate to 0.01%.
Phase Conversion
With the ability to provide singe, split and three-phase outputs, the AFX Series is the perfect choice to provide 1 Phase to 2 or 3 Phase or 3 Phase to 1 Phase conversion.
