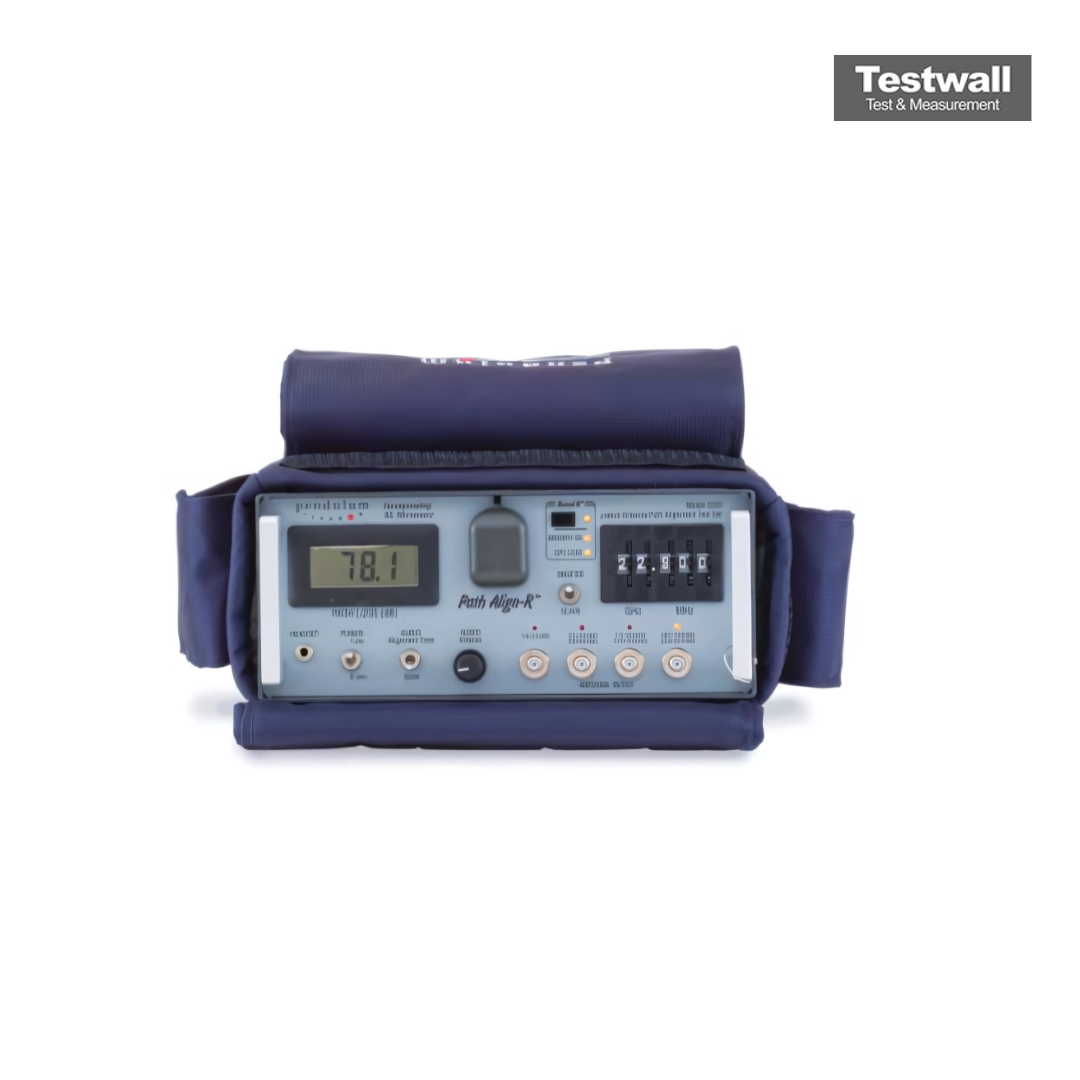

Pendulum 2200 & 2240 Path Align-R Antenna Path Alignment Test Set
0,1 MHz – 2,5 GHz Rango de frecuencia
80 dB Rango dinámico
±1 dB Precisión de medición
50 Ω Impedancia
N-Type hembra Conector RF
| Atributo | Valor |
|---|---|
| Rango de frecuencia | 0,1 MHz – 2,5 GHz |
| Rango dinámico | 80 dB |
| Precisión de medición | ±1 dB |
| Impedancia | 50 Ω |
| Conector RF | N-Type hembra |
| Fuente de alimentación | Batería recargable de NiMH / Adaptador de CA |
| Autonomía de la batería | Hasta 8 horas de uso continuo |
| Temperatura de funcionamiento | -10 °C a +55 °C |
| Dimensiones | 240 mm x 110 mm x 50 mm |
| Peso | Aproximadamente 1,2 kg |
Pendulum 2200 & 2240 Path Align-R Antenna Path Alignment Test Set Options:
- 2200 - Opt 01 - 1.8-2.5 GHz frequency band
- 2200 - Opt 02 - 5.8-6.6 GHz frequency band
- 2200 - Opt 03 - 11.0-12.0 GHz frequency band
- 2200 - Opt 04 - 18.1-19.4 GHz frequency band
- 2240 - Opt 01 - 1.8-2.5 GHz frequency band
- 2240 - Opt 02 - 3.5-5.0 & 5.8-6.6 GHz frequency band
- 2240 - Opt 03 - 7.5-10.0 & 11.0-12.0 GHz frequency band
- 2240 - Opt 04 - 15 & 18.1-19.4 & 22.0-23.5 GHz frequency band
- 2241 - Opt 01 - 1.8-2.5 GHz frequency band
- 2241 - Opt 02 - 3.5-5.0 & 5.8-6.6 GHz frequency band
- 2241 - Opt 03 - 7.5-10.0 & 11.0-12.0 GHz frequency band
- 2241 - Opt 04 - 15 & 18.1-19.4 & 22.0-23.5 GHz frequency band
| Model | 2200 |
|---|
- Portable, battery-powered, lightweight for field applications
- Full duplex voice communication during path alignment over link
- Variable alignment tone varies with received signal strength
- Four tuneable operating frequency bands
- Data logger with embedded GPS receiver for recording date/time, position, and path-loss data
- Accurately document antenna alignment with Log View-R software, included
- Two unit set, includes weather resistant backpack, headsets, battery and more
