PowerSight PK4564 Options:
- PK4564 - PK4564-PRO - Everything in the PK4564, plus Mini Line-to-DC Converter, USB Communications Cable, and USB Bluetooth Adapter
- PK4564 - PK4564-PRO+ - Everything in the PK4564-PRO, plus Weatherproof Carrying & Operating Case (substituted for Hard Shell Carrying Case) and 2-Year Deluxe Warranty instead of 1-Year
- PK4564 - LDCm - Mini Line-to-DC Converter (included in PRO and PRO+; optional add-on)
- PK4564 - USB-COMM - USB Communications Cable (included in PRO and PRO+)
- PK4564 - BT-USB - USB Bluetooth Adapter (included in PRO and PRO+)
- PK4564 - DC600 - DC Current Measurement Probe (optional accessory)
- PK4564 - DC2000 - DC Current Measurement Probe (optional accessory)
- PK4564 - 5kV - Medium Voltage Probe for Direct Connect to Medium Voltage (optional accessory)
- PK4564 - 15kV - Medium Voltage Probe for Direct Connect to Medium Voltage (optional accessory)
- PK4564 - Wi-Fi - Wi-Fi Wireless Communications (optional upgrade; Bluetooth standard)
| Model | PK4564 |
|---|

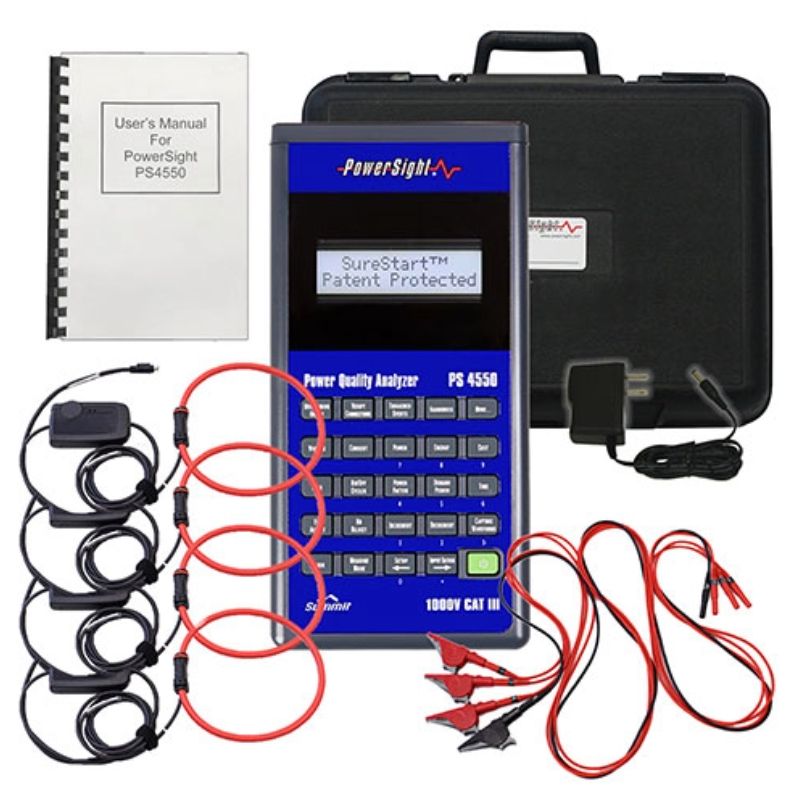

PowerSight PK4564 Power Quality Analyzer System
The PowerSight PK4564 Power Quality Analyzer System is a robust, all-in-one solution for in-depth power quality analysis. PowerSight PK4564 includes PS4550 Power Quality Analyzer, four eFX6000 flexible cur probes, and our CAS3 hard-shell carrying case. It is designed for comprehensive power quality studies, energy audits, load studies, harmonic analysis, and many more. Wide-range flexible cur probes allow to get into tight and confined spaces, wrap around large conductors, and measure almost any AC circuit.
PowerSight PK4564 Power Quality Analyzer System captures power quality events in multiple ways to view and record swells, dips (sags), inrush, high speed transients, etc of both voltage and current. All inputs are sampled continuously and simultaneously so nothing is missed. Advanced PowerSight Manager software improves efficiency and eliminates sources of error at each stage of the monitoring process. CAT IV safety rating and wireless remote control via Bluetooth for even greater safety. PowerSight PK4564 Power Quality Analyzer System supports SD memory card for redundant storage and essentially unlimited logging capacity.
Specifications for the PowerSight PK4564 Power Quality Analyzer System Include:
| Voltage measurement range | 1 €“ 1,000V steady state (Direct) |
| Cur measurement range | 1 €“ 6,000A AC (Direct) |
| Power measurement range | 1 €“ 18 megawatts (Direct) |
| Sampling Rate | 8 microseconds for Voltage and Current |
