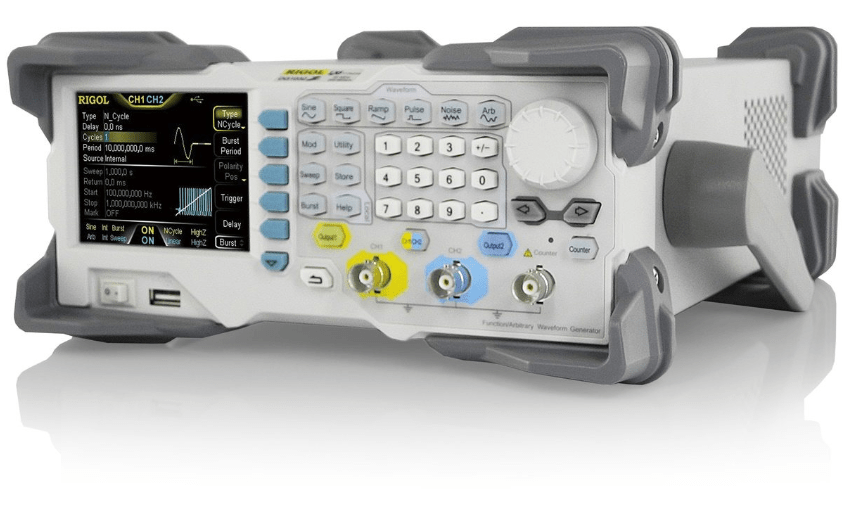

Rigol DG1022Z
High quality two channel function / arbitrary waveform generator with 25 MHz bandwidth, 200 MSa/s and 2 Mpts memory (up to 16Mpts as option).
2 canales independientes Número de canales
25 MHz Frecuencia máxima
200 MSa/s Frecuencia de muestreo
8 puntos a 8 Mpuntos Longitud de onda arbitraria
14 bits Resolución vertical (DAC)
| Atributo | Valor |
|---|---|
| Número de canales | 2 canales independientes |
| Frecuencia máxima | 25 MHz |
| Frecuencia de muestreo | 200 MSa/s |
| Longitud de onda arbitraria | 8 puntos a 8 Mpuntos |
| Resolución vertical (DAC) | 14 bits |
| Formas de onda estándar | Senoidal, cuadrada, rampa, pulso, ruido, DC y 160 formas de onda integradas |
| Resolución de frecuencia | 1 µHz |
| Amplitud de salida | 1 mVpp a 10 Vpp (en carga de 50 Ω) |
| Interfaz de comunicación | USB Host, USB Device (USBTMC), LAN (LXI Core) |
| Pantalla | Pantalla TFT a color de 3,5 pulgadas con resolución 320 × 240 |
| Model | DG1022Z |
|---|
The Rigol DG1022Z is a 2 channel Function / Arbitrary Waveform Generator to create high quality signals up to 25 MHz (Sine) with very low jitter (200 ps) and the new SiFi (SIgnal FIdelity) technology. Beside the two analog outputs, the device includes an USB-Host- and an USB-device interface.
The Rigol Function-generators have a sophisticated and easy to use interface and offer multiple functions for all tasks. The menu navigation is very intuitive and all functions and parameters are easy to locate thanks to the graphical interface.
The devices have a filesystem for the storage of waveforms in the internal memory or on USB sticks.
The integrated helpfunction will show descriptions of single functions and step-by-step instructions for often used tasks.
