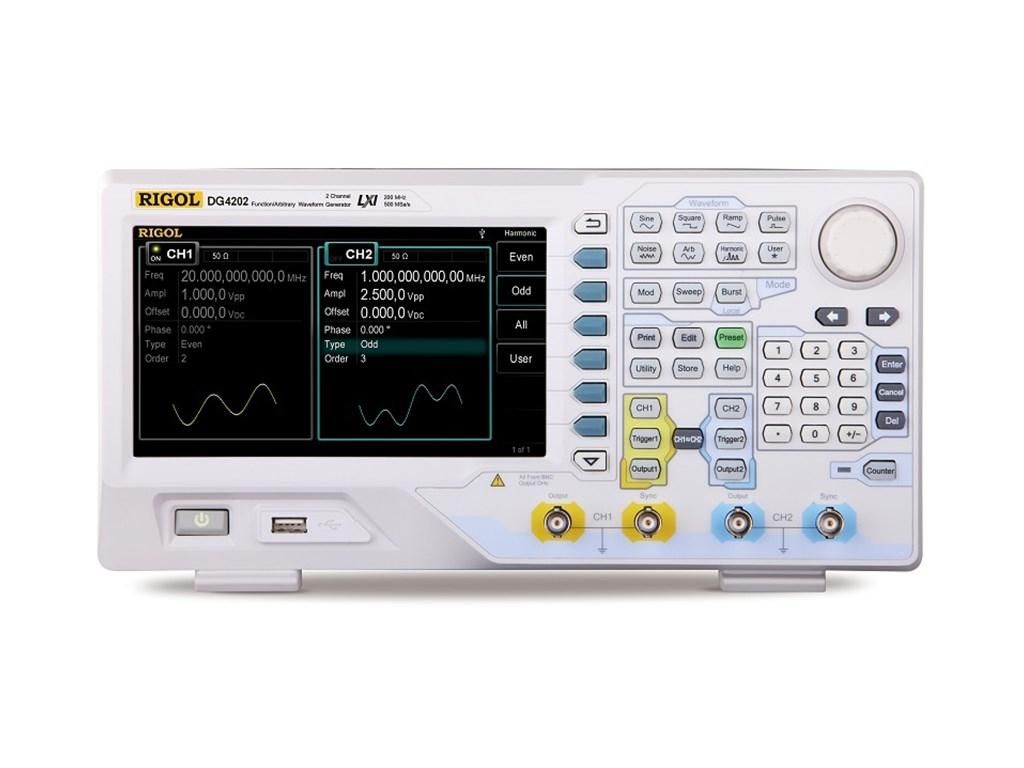

Rigol DG4202
High quality two channel function / arbitrary waveform generator with 200 MHz bandwidth, 500 MSa/s and 16 kpts memory.
200 MHz Frecuencia máxima de salida
2 canales independientes Número de canales
1 µHz Resolución de frecuencia
1 mVpp a 20 Vpp (en carga de 50 Ω) Amplitud de salida
16 bits Resolución vertical (DAC)
| Atributo | Valor |
|---|---|
| Frecuencia máxima de salida | 200 MHz |
| Número de canales | 2 canales independientes |
| Resolución de frecuencia | 1 µHz |
| Amplitud de salida | 1 mVpp a 20 Vpp (en carga de 50 Ω) |
| Resolución vertical (DAC) | 16 bits |
| Longitud de memoria de forma de onda arbitraria | 16 Mpts por canal |
| Tasa de muestreo | 500 MSa/s |
| Formas de onda estándar | Senoidal, cuadrada, rampa, pulso, ruido, DC y más de 160 formas de onda integradas |
| Pantalla | Pantalla táctil TFT-LCD de 4,3 pulgadas a color |
| Interfaces de conectividad | USB Host, USB Device, LAN (LXI) |
| Model | DG4202 |
|---|
The Rigol DG4202 is two channel function / arbitary waveform generator to create high quality signals up to 200 MHz (Sine). Beside the analog output, the device includes an USB-Host- and an USB-device and a LAN interface.
The Rigol Function-generators have a sophisticated and easy to use interface and offer multiple functions for all tasks. The menu navigation is very intuitive and all functions and parameters are easy to locate thanks to the graphical interface.
Special Features
- Filesystem and USB Stick Support The devices have a filesystem for the storage of waveforms in the internal memory or on USB sticks.
- Integrated Helpsystem The integrated helpfunction will show descriptions of single functions and step-by-step instructions for often used tasks.
