Rigol DL3021
| Atributo | Valor |
|---|---|
| Voltaje máximo de entrada | 150 V |
| Corriente máxima | 30 A |
| Potencia máxima | 200 W |
| Rango de resistencia mínima | 0,05 Ω |
| Modos de operación | CC, CV, CR, CP |
| Precisión de voltaje | 0,05% + 0,05% del fondo de escala |
| Precisión de corriente | 0,05% + 0,05% del fondo de escala |
| Interfaz de comunicación | USB, LAN (LXI), RS-232 |
| Pantalla | Pantalla TFT-LCD a color de 3,5 pulgadas |
| Dimensiones (An x Al x Pr) | 214,5 mm x 88,2 mm x 354,9 mm |
Rigol DL3021 Options:
- DL3021 - LAN-DL3 - LAN Interface
- DL3021 - DIGITALIO-DL3 - Digital I/O Option
- DL3021 - HIRES-DL3 - Readback Resolution
- DL3021 - FREQ-DL3 - High Frequency Option
- DL3021 - SLEWRATE-DL3 - High Slew Rate Option
| Model | DL3021 |
|---|

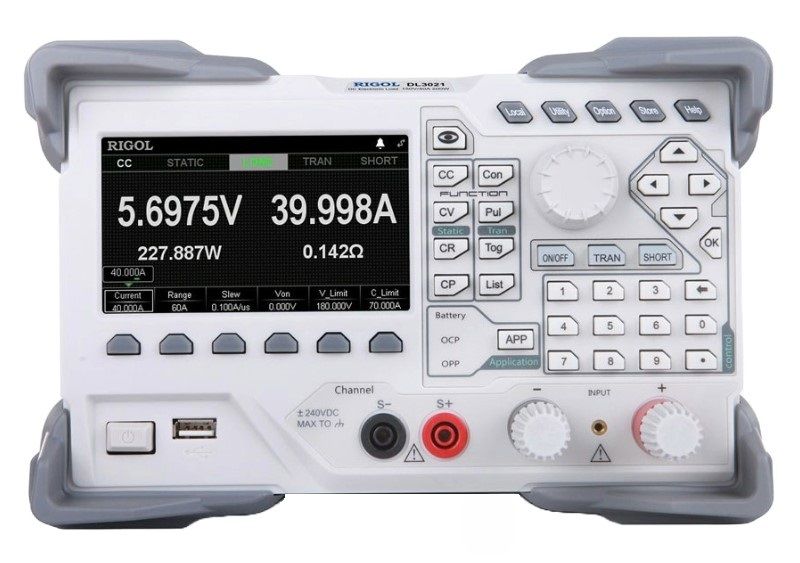

Rigol DL3021 Single channel DC Electronic Load
Rigol DL3021 Single channel DC Electronic Load is a cost-effective programmable DC electronic load with high performance. With a user-friendly interface and superb performance specifications, DL3000 provides various interfaces for remote communication to meet your diversified test requirements. It can be widely used in various industries, such as automotive electronics, fuel cells, and etc. Featuring 4.3-inch TFT LCD, Rigol DL3021 is capable of displaying multiple parameters and
states simultaneously.
Rigol DL3021 Single channel DC Electronic Load features transient test function which enables the load to periodically switch between two set levels. It can be used to test the transient characteristics of the DUT and the highest frequency can be set to 30 kHz. You can generate complex sequences by editing the setting value for each step, the dwell time, and slew rate to meet the complex test demands. Also you can set the actual transition time from one setting to another by changing the cur rising speed. Rigol DL3021 Single channel DC Electronic Load provides the waveform display function and supports operations for pausing the waveform, enlarging and narrowing the waveform, and capturing the waveform. Therefore, you can dynamically observe the trend of parameters changes.
Specifications for the Rigol DL3021 Single channel DC Electronic Load Include:
| Total Power | 200 W |
| Max Current | 40 A |
| Max Cur Slew Rate | 2.5 A/μs Standard, 3 A/μs Optional |
| Max Continuous Mode Frequency | 15 kHz Standard, 30 kHz Optional |
