Rigol

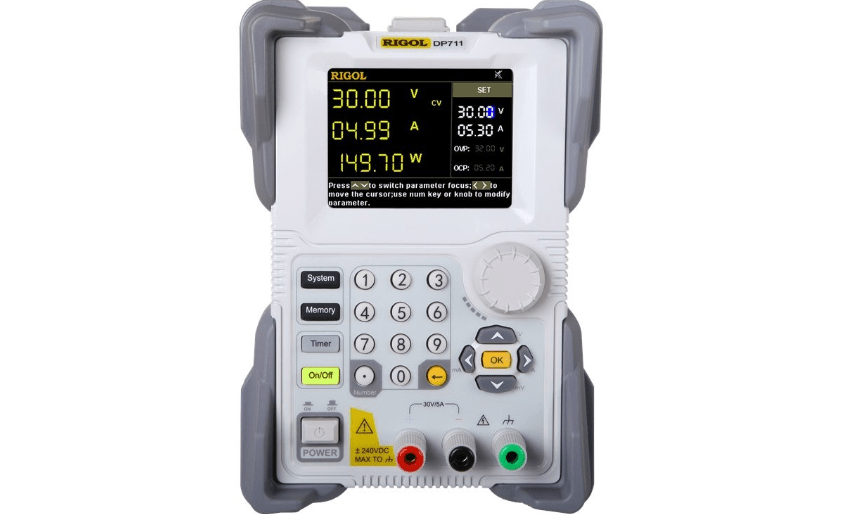

Rigol DP711
High quality programmable DC power supply with one output channel (+30 V/5 A, max 150 W).
1 canal Número de canales
0 V a 30 V Tensión de salida
0 A a 5 A Corriente de salida
150 W Potencia máxima de salida
1 mV Resolución de tensión
| Atributo | Valor |
|---|---|
| Número de canales | 1 canal |
| Tensión de salida | 0 V a 30 V |
| Corriente de salida | 0 A a 5 A |
| Potencia máxima de salida | 150 W |
| Resolución de tensión | 1 mV |
| Resolución de corriente | 1 mA |
| Regulación de línea (tensión) | ≤ 0,01% + 3 mV |
| Regulación de carga (tensión) | ≤ 0,01% + 3 mV |
| Interfaz de comunicación | USB Device |
| Tensión de alimentación | 100 V a 240 V CA, 50/60 Hz |
| Model | DP711 |
|---|
The Rigol DP711 is a very high quality programmable laboratory power supply with one DC output (30 V/5 A) and a maximum power output of 150 W. Like all Rigol devices, the power supply features a very well constructed and easy to use interface, which also offers comprehensive ease-of-use functions, such as programmable voltage curves. The menu has an intuitive structure. The Rigol DP711 features a relative large (8.9 cm / 3.5") and easy to read TFT display. A timer control can be used to set the output signal to different values in up to 2048 groups.
| Model-Overview | DP711 | DP712 |
|---|---|---|
| Voltage / Current | +30 V / 5 A | +50 V / 3 A |
| I/O Interfaces | RS-232 | RS-232 |
| Display | 8,9 cm TFT | 8,9 cm TFT |
