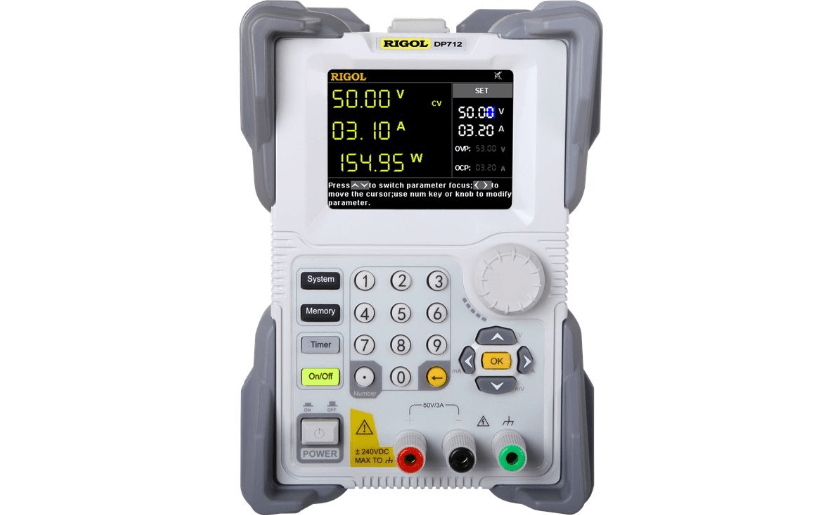

Rigol DP712
High quality programmable DC power supply with one output channel (+50 V/3 A, max 150 W).
1 canal Número de canales
0 V a 50 V Tensión de salida
0 A a 3 A Corriente de salida
150 W Potencia máxima de salida
1 mV Resolución de tensión
| Atributo | Valor |
|---|---|
| Número de canales | 1 canal |
| Tensión de salida | 0 V a 50 V |
| Corriente de salida | 0 A a 3 A |
| Potencia máxima de salida | 150 W |
| Resolución de tensión | 1 mV |
| Resolución de corriente | 1 mA |
| Rizado y ruido (tensión) | ≤ 350 μVrms (5 Hz a 1 MHz) |
| Interfaz de comunicación | USB Device (USBTMC) |
| Tensión de alimentación | 100 V a 240 V CA, 50/60 Hz |
| Dimensiones (An × Al × Pr) | 212,9 mm × 88,2 mm × 356,2 mm |
| Model | DP712 |
|---|
The Rigol DP712 is a very high quality programmable laboratory power supply with one DC output (50 V/3 A) and a maximum power output of 150 W. Like all Rigol devices, the power supply features a very well constructed and easy to use interface, which also offers comprehensive ease-of-use functions, such as programmable voltage curves. The menu has an intuitive structure. The Rigol DP712 features a relative large (8.9 cm / 3.5") and easy to read TFT display. A timer control can be used to set the output signal to different values in up to 2048 groups.
| Model-Overview | DP711 | DP712 |
|---|---|---|
| Voltage / Current | +30 V / 5 A | +50 V / 3 A |
| I/O Interfaces | RS-232 | RS-232 |
| Display | 8,9 cm TFT | 8,9 cm TFT |
