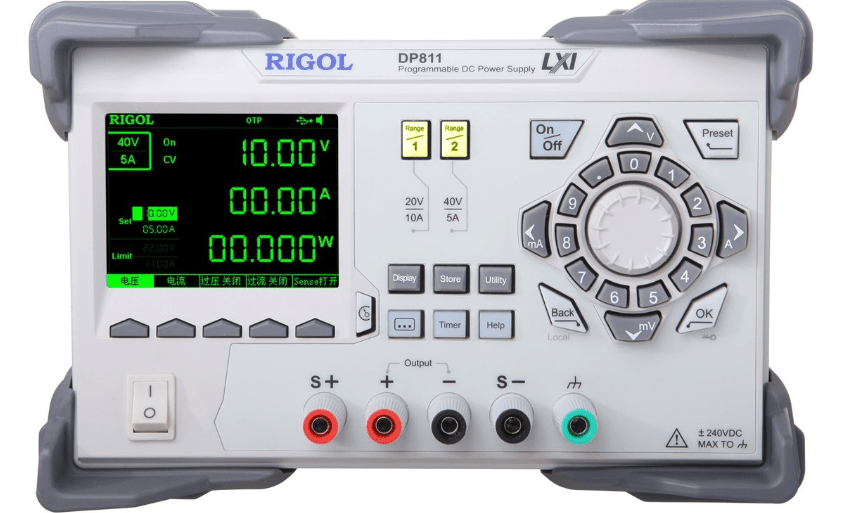

Rigol DP811
High quality programmable DC power supply with one output channel (+20 V/10 A or +40 V/5 A, DC switchable, max 200 W).
0 V a 20 V Voltaje de salida
0 A a 10 A Corriente de salida
100 W Potencia máxima
1 canal Número de canales
1 mV Resolución de voltaje
| Atributo | Valor |
|---|---|
| Voltaje de salida | 0 V a 20 V |
| Corriente de salida | 0 A a 10 A |
| Potencia máxima | 100 W |
| Número de canales | 1 canal |
| Resolución de voltaje | 1 mV |
| Resolución de corriente | 1 mA |
| Interfaces de comunicación | USB, LAN (LXI) |
| Pantalla | Pantalla LCD a color de 4,3 pulgadas |
| Precisión de voltaje | ±(0,05% + 10 mV) |
| Precisión de corriente | ±(0,15% + 10 mA) |
| Model | DP811 |
|---|
The Rigol DP811 is a very high quality programmable laboratory power supply with a switchable output (20 V/10 A or 40 V/5 A) and a maximum power output of 200 W.
Like all Rigol devices, the power supply features a very well constructed and easy to use interface, which also offers comprehensive ease-of-use functions, such as programmable voltage curves. The menu has an intuitive structure.
The Rigol DP811 features a relative large (8.9 cm / 3.5") and easy to read TFT monochrome display. In addition to the normal digital displays for voltage, current, and power, these values can also be displayed as signal curves. A timer control can be used to set the output signal to different values in up to 2048 steps.
