Rigol
Rigol DP831
High quality programmable DC power supply with three output channels (+8 V / 5 A, +30 V / 2 A, -30 V / 2 A, DC, max 160 W).
3 canales Número de Canales
160 W Potencia Total Máxima
8 V / 5 A Canal 1 - Tensión/Corriente
30 V / 2 A Canal 2 - Tensión/Corriente
-30 V / 2 A Canal 3 - Tensión/Corriente
| Atributo | Valor |
|---|---|
| Número de Canales | 3 canales |
| Potencia Total Máxima | 160 W |
| Canal 1 - Tensión/Corriente | 8 V / 5 A |
| Canal 2 - Tensión/Corriente | 30 V / 2 A |
| Canal 3 - Tensión/Corriente | -30 V / 2 A |
| Resolución de Tensión | 1 mV |
| Resolución de Corriente | 1 mA |
| Interfaces de Comunicación | USB, RS232, LAN (LXI) |
| Pantalla | Pantalla a color de 3,5 pulgadas |
| Protecciones | Protección contra sobretensión (OVP), sobrecorriente (OCP) y sobrepotencia (OPP) |
| Model | DP831 |
|---|

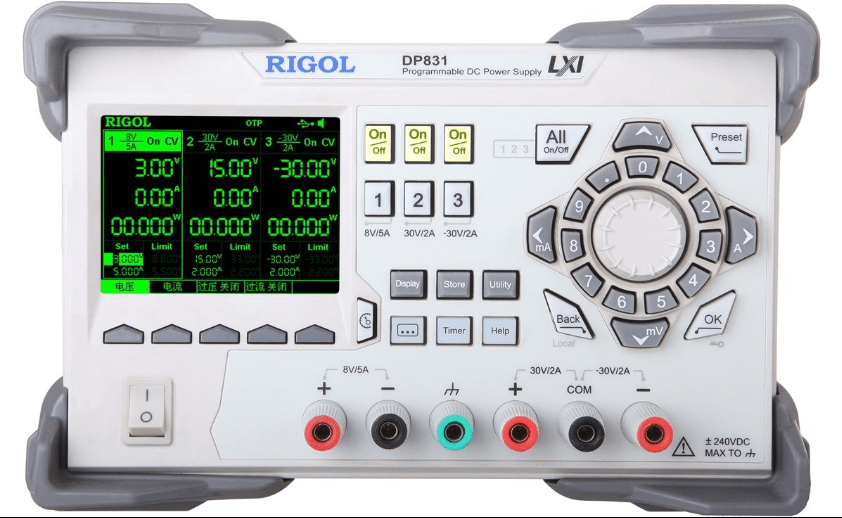

The Rigol DP831 is a very high quality programmable laboratory power supply with three switchable outputs (+8 V/5 A, +30 V/2 A and -30 V/2 A) and a maximum power output of 160 W.
Like all Rigol devices, the power supply features a very well constructed and easy to use interface, which also offers comprehensive ease-of-use functions, such as programmable voltage curves. The menu has an intuitive structure.
The Rigol DP831 features a relative large (8.9 cm / 3.5") and easy to read TFT monochrome display. In addition to the normal digital displays for voltage, current, and power, these values can also be displayed as signal curves. A timer control can be used to set the output signal to different values in up to 2048 steps.
| Quick comparision | DP811?/?DP811A | DP821?/?DP821A | DP831?/?DP831A | DP832?/?DP832A |
|---|---|---|---|---|
| Voltage / Current CH1 | 0 - +20 V / 0 - 10 A oder 0 - +40 V / 0 - 5 A | 0 - +60 V / 0 - 1 A | 0 - +8 V / 0 - 5 A | 0 - +30 V / 0 - 3 A |
| Voltage / Current CH2 | 0 - +8 V / 0 - 10 A | 0 - +30 V / 0 - 2 A | 0 - +30 V / 0 - 3 A | |
| Voltage / Current CH3 | 0 - -30 V / 0 - 2 A | 0 - +5 V / 0 - 3 A | ||
| I/O Ports | USB device, USB Host |
| A-Models | Basic Models | |
|---|---|---|
| Voltage Resolution | 1 mV | 10 mV (1 mV with High-Resolution Option) |
| LAN, RS232 and Digital IO Ports | Included | Option |
| Online Monitoring & Analysis Function | Included | Option |
| Display |
