Rigol

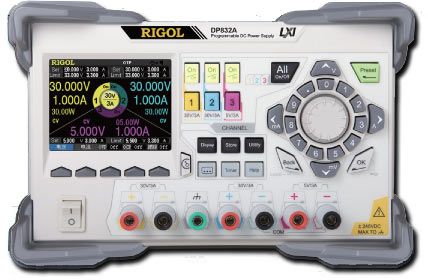

Rigol DP832A
Triple Output, 195 Watt Power Supply
3 canales Número de canales de salida
30 V (CH1 y CH2), 5 V (CH3) Tensión de salida máxima
3 A (CH1 y CH2), 3 A (CH3) Corriente de salida máxima
195 W Potencia total máxima
1 mV Resolución de tensión
| Atributo | Valor |
|---|---|
| Número de canales de salida | 3 canales |
| Tensión de salida máxima | 30 V (CH1 y CH2), 5 V (CH3) |
| Corriente de salida máxima | 3 A (CH1 y CH2), 3 A (CH3) |
| Potencia total máxima | 195 W |
| Resolución de tensión | 1 mV |
| Resolución de corriente | 1 mA |
| Rizado y ruido (tensión) | ≤ 1 mVrms (modo CV) |
| Interfaces de comunicación | USB, LAN (LXI), RS232 |
| Pantalla | Pantalla TFT a color de 4,3 pulgadas |
| Tensión de alimentación | 100 V – 240 V CA, 50/60 Hz |
| Model | DP832A |
|---|
The DP800 Series Power Supplies combine the ability to source, analyze, and coordinate over time in a powerful new package. The DP832A has two 30 V channels and one 5 V channel all capable of 3 Amps. With one channel isolated users can reconfigure instruments into any number of systems or applications. Built in V, A, and W measurements make power monitoring easy, but additional wave tracking, timing, and analysis features means there are even more ways to use the supplies. New digital triggering between instruments also makes it possible to reliably combine and connect supplies together. Intuitive to use for everything from education labs to the R & D bench, the DP800 family of power supplies provide incredible value for any application.
