Rigol

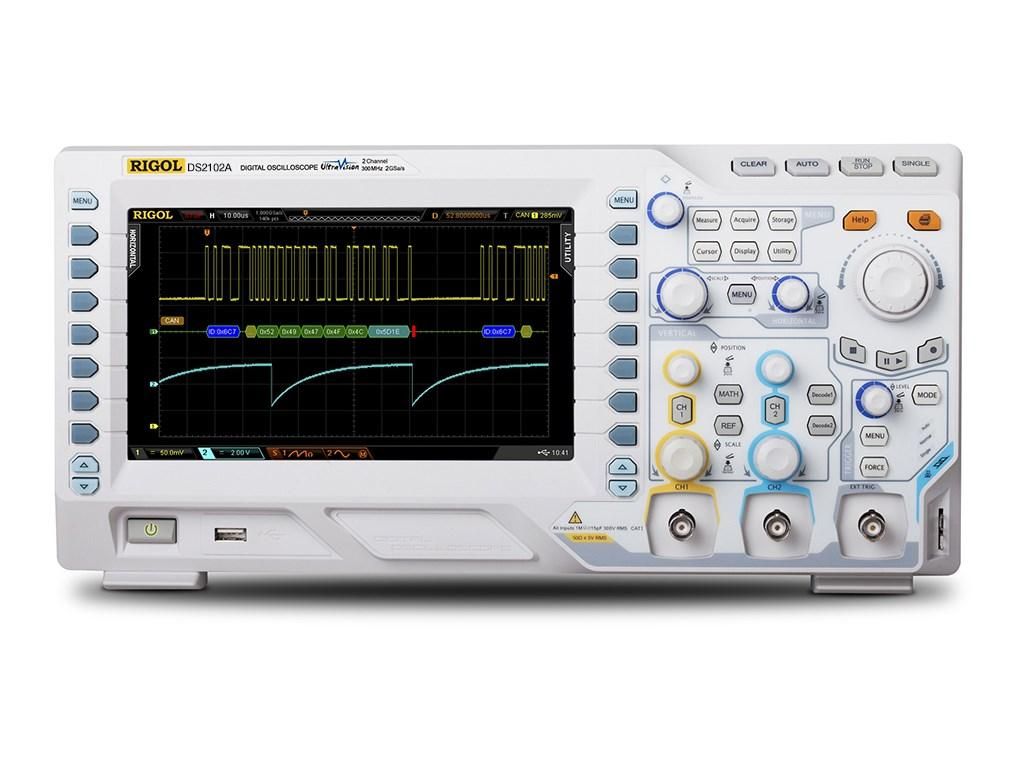

Rigol DS2102A
High quality 2 channel DSO with 100 MHz bandwidth, 2 GSa/s and 14 Mpts memory depth.
100 MHz Ancho de banda
2 canales analógicos Número de canales
2 GSa/s Frecuencia de muestreo
56 Mpts Profundidad de memoria
8 bits Resolución vertical
| Atributo | Valor |
|---|---|
| Ancho de banda | 100 MHz |
| Número de canales | 2 canales analógicos |
| Frecuencia de muestreo | 2 GSa/s |
| Profundidad de memoria | 56 Mpts |
| Resolución vertical | 8 bits |
| Tamaño de pantalla | 8 pulgadas TFT LCD |
| Resolución de pantalla | 800 x 480 píxeles |
| Rango de escala vertical | 1 mV/div a 10 V/div |
| Base de tiempos | 1 ns/div a 1000 s/div |
| Interfaz de comunicación | USB Host, USB Device, LAN (LXI), Aux |
| Model | DS2102A |
|---|
The Rigol DS2102A is a very high quality two channel digital storage oscilloscope. It features a real-time sample rate of up to 2 GSa/s and a bandwidth of 100 MHz.
The Rigol oscilloscopes are equipped with well designed and easy to use controls offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages.
This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals. The DS2072A has a refresh rate of up to 50.000 wfms/s, enabling users to capture instantaneous signals, as well as abnormal signals more quickly. It also helps to enhance the waveform capturing ability and to expedite a circuit debug course. The quality of the Rigol oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.
The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals. The signal curves, the FFT display, and other functions can be shown simultaneously on the display.
