Rigol

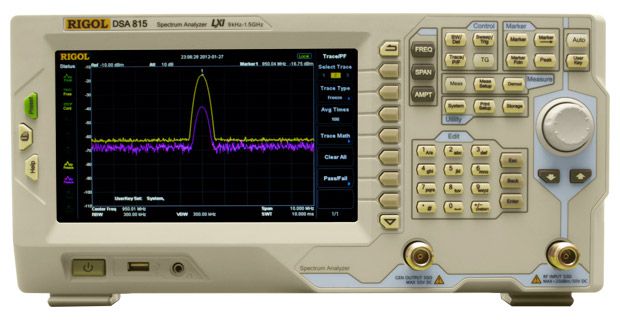

Rigol DSA815-TG
1.5 GHz Spectrum Analyzer
9 kHz – 1,5 GHz Rango de Frecuencia
Incorporado, 9 kHz – 1,5 GHz Generador de Seguimiento
-161 dBm/Hz (típico, con preamplificador activado) Nivel de Ruido Promedio Mostrado (DANL)
-160 dBm a +20 dBm Rango de Amplitud
100 Hz – 1 MHz (en pasos de 1-3-10) Ancho de Banda de Resolución (RBW)
| Atributo | Valor |
|---|---|
| Rango de Frecuencia | 9 kHz – 1,5 GHz |
| Generador de Seguimiento | Incorporado, 9 kHz – 1,5 GHz |
| Nivel de Ruido Promedio Mostrado (DANL) | -161 dBm/Hz (típico, con preamplificador activado) |
| Rango de Amplitud | -160 dBm a +20 dBm |
| Ancho de Banda de Resolución (RBW) | 100 Hz – 1 MHz (en pasos de 1-3-10) |
| Fase de Ruido | -80 dBc/Hz @ 10 kHz de separación (típico) |
| Preamplificador Interno | Sí, incorporado (0 – 1,5 GHz) |
| Pantalla | LCD TFT de 8 pulgadas, resolución 800 × 480 píxeles |
| Puertos de Conectividad | USB Host, USB Device, LAN (Ethernet), VGA |
| Dimensiones y Peso | 399 mm × 197 mm × 111 mm, aproximadamente 4,3 kg |
| Model | DSA815-TG |
|---|
Rigol's new DSA815 spectrum analyzer redefines the product category by setting new standards for performance and price. The DSA815 features a unique widescreen display, compact design and easy-to-use interface and operations, making it ideal for benchtop or field apps in RF and wireless testing and production. The new spectrum analyzer offers the ability to measure smaller signals using our digital IF filter, which allows for smaller bandwidth settings and reduces displayed noise levels. The DSA815 also distinguishes between signals with a frequency difference as little as 100 Hz. ? The DSA815 includes a wide range of standard functions including AM/FM demodulation and a preamplifier. In addition, Rigol offers great options including an EMI filter and quasi-peak detector kit and a 1.5 GHz tracking generator. So before your next compliance test, check out the DSA815... save one trip to the compliance lab and it pays for itself!
