Rigol

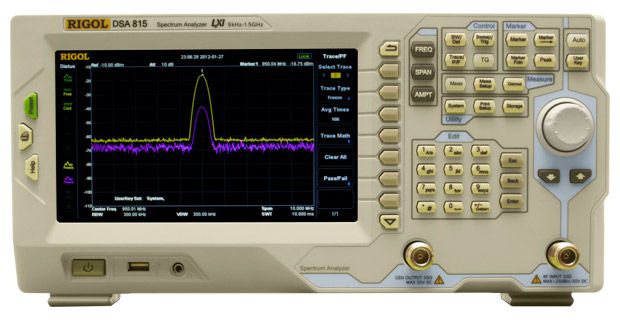

Rigol DSA815
1.5 GHz Spectrum Analyzer
9 kHz – 1,5 GHz Rango de Frecuencia
-174 dBm/Hz a +20 dBm Rango de Amplitud
-161 dBm/Hz (típico) Figura de Ruido Mostrada (DANL)
-80 dBc/Hz a 10 kHz de offset (típico) Rango Dinámico de Fase
100 Hz – 1 MHz (en pasos de 1-3-10) Resolución de Ancho de Banda (RBW)
| Atributo | Valor |
|---|---|
| Rango de Frecuencia | 9 kHz – 1,5 GHz |
| Rango de Amplitud | -174 dBm/Hz a +20 dBm |
| Figura de Ruido Mostrada (DANL) | -161 dBm/Hz (típico) |
| Rango Dinámico de Fase | -80 dBc/Hz a 10 kHz de offset (típico) |
| Resolución de Ancho de Banda (RBW) | 100 Hz – 1 MHz (en pasos de 1-3-10) |
| Precisión de Amplitud | ±0,8 dB (típico) |
| Pantalla | LCD TFT de 8 pulgadas, resolución 800 × 480 píxeles |
| Puertos de Conectividad | USB Host, USB Device, LAN (LXI), puerto de rastreo de salida |
| Impedancia de Entrada | 50 Ω (nominal) |
| Dimensiones y Peso | 399 mm × 197 mm × 104 mm; 4,3 kg (aproximado) |
| Model | DSA815 |
|---|
Rigol's new DSA815 spectrum analyzer redefines the product category by setting new standards for performance and price. The DSA815 features a unique widescreen display, compact design and easy-to-use interface and operations, making it ideal for benchtop or field apps in RF and wireless testing and production. The new spectrum analyzer offers the ability to measure smaller signals using our digital IF filter, which allows for smaller bandwidth settings and reduces displayed noise levels. The DSA815 also distinguishes between signals with a frequency difference as little as 100 Hz. ? The DSA815 includes a wide range of standard functions including AM/FM demodulation and a preamplifier. In addition, Rigol offers great options including an EMI filter and quasi-peak detector kit and a 1.5 GHz tracking generator. So before your next compliance test, check out the DSA815... save one trip to the compliance lab and it pays for itself!
