Rohde & Schwarz

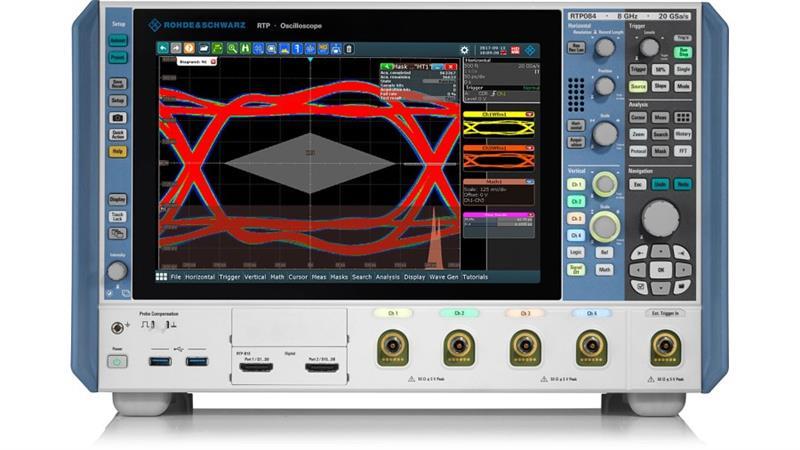

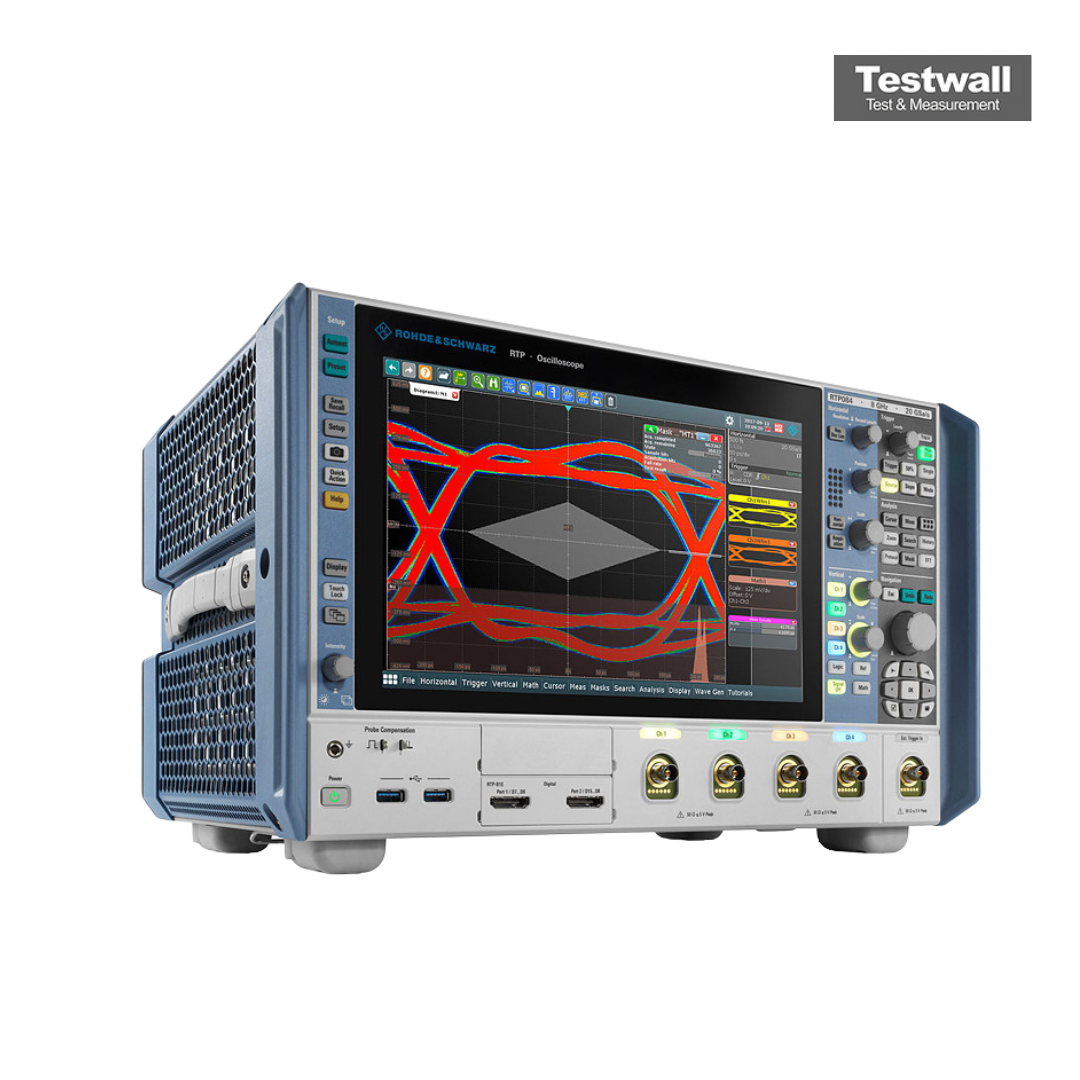

Rohde & Schwarz RTP044
RTP High-Performance Oscilloscope, 4 GHz, 4 Channels
4 GHz Ancho de banda
16 Gsample/s Tasa de muestreo
4 canales analógicos Número de canales
500 Mpoints por canal Profundidad de memoria
8 bits (hasta 16 bits en modo de alta resolución) Resolución vertical
| Atributo | Valor |
|---|---|
| Ancho de banda | 4 GHz |
| Tasa de muestreo | 16 Gsample/s |
| Número de canales | 4 canales analógicos |
| Profundidad de memoria | 500 Mpoints por canal |
| Resolución vertical | 8 bits (hasta 16 bits en modo de alta resolución) |
| Rango de escala vertical | 1 mV/div a 1 V/div |
| Rango de base de tiempos | 25 ps/div a 10000 s/div |
| Tasa de actualización de forma de onda | 1.000.000 de formas de onda por segundo |
| Pantalla | Pantalla táctil capacitiva de 15,6 pulgadas Full HD (1920 x 1080) |
| Interfaz y conectividad | USB, LAN (1 GBit/s), DisplayPort, entrada/salida de referencia de 10 MHz |
Rohde & Schwarz RTP044 Options:
- RTP044 - RTP-B1 - Mixed signal option, additional 16 logic channels, 400 MHz
- RTP044 - RTP-B1E - Digital extension port for R&S RT-ZVC usage with R&S RTP oscilloscope, included in R&S RTP-B1
- RTP044 - RTP-B6 - Arbitrary waveform generator, 100 MHz, 2 analog channels, 8-bit pattern generator
- RTP044 - RTP-B7 - 16 GHz differential pulse source with reference output
- RTP044 - RTP-B19 - Additional solid state disk
- RTP044 - RTP-B21 - Adapter rear option slot
- RTP044 - RTP-B101 - Memory upgrade, 100 Msample per channel
- RTP044 - RTP-B102 - Memory upgrade, 200 Msample per channel
- RTP044 - RTP-B105 - Memory upgrade, 500 Msample per channel
- RTP044 - RTP-B110 - Memory upgrade, 1 Gsample per channel
- RTP044 - RTP-B0406 - Upgrade of the R&S RTP044 to 6 GHz bandwidth
- RTP044 - RTP-B0408 - Upgrade of the R&S RTP044 to 8 GHz bandwidth
- RTP044 - RTP-K1 - I2C/SPI serial triggering and decoding
- RTP044 - RTP-K2 - UART/RS-232/RS-422/RS-485 serial triggering and decoding
- RTP044 - RTP-K3 - CAN/LIN serial triggering and decoding
- RTP044 - RTP-K8 - Ethernet serial decoding
- RTP044 - RTP-K9 - CAN-FD serial triggering and decoding
- RTP044 - RTP-K12 - Basic jitter analysis
- RTP044 - RTP-K17 - High definition mode
- RTP044 - RTP-K19 - Zone trigger
- RTP044 - RTP-K21 - USB 2.0 compliance test
- RTP044 - RTP-K22 - Ethernet compliance test (10/100/1000BASE-T)
- RTP044 - RTP-K23 - Ethernet compliance test (10GBASE-T)
- RTP044 - RTP-K24 - IEEE 100BASE-T1 (BroadR-Reach) compliance test
- RTP044 - RTP-K25 - Ethernet compliance test (2.5G/5G-BASE-T)
- RTP044 - RTP-K26 - MIPI D-PHY compliance test
- RTP044 - RTP-K37 - Spectrogram
- RTP044 - RTP-K40 - MIPI RFFE serial triggering and decoding
- RTP044 - RTP-K42 - MIPI D-PHY serial triggering and decoding
- RTP044 - RTP-K44 - MIPI M-PHY serial triggering and decoding
- RTP044 - RTP-K50 - Manchester and NRZ serial triggering and decoding
- RTP044 - RTP-K52 - 8b10b serial decoding
- RTP044 - RTP-K55 - MDIO serial triggering and decoding
- RTP044 - RTP-K57 - IEEE 100BASE-T1 serial triggering and decoding
- RTP044 - RTP-K60 - USB 1.0/1.1/2.0/HSIC serial triggering and decoding
- RTP044 - RTP-K61 - USB 3.1 Gen 1 serial triggering and decoding
- RTP044 - RTP-K63 - USB power delivery serial triggering and decoding
- RTP044 - RTP-K64 - USB 3.1 SSIC serial triggering and decoding
- RTP044 - RTP-K86 - Energy-efficient Ethernet compliance test (10M/100M/1G-BASE-T)
- RTP044 - RTP-K91 - DDR3/DDR3L/LPDDR3 signal integrity debug and compliance test
- RTP044 - RTP-K99 - R&S ScopeSuite automation
- RTP044 - RTP-K121 - Deembedding base option
- RTP044 - RTP-K122 - Realtime deembedding extension
| Model | RTP044 |
|---|
El osciloscopio Rohde and Schwarz RTP044 proporciona 750.000 formas de onda por segundo con un disparador digital de alta precisión, sin limitaciones de ancho de banda. Diseño compacto y silencioso, con respuesta en frecuencia plana de ±0,25 dB para mediciones precisas.
Perfecto para detectar fallos y capturar señales rápidamente, admite de-embedding en tiempo real, ideal para laboratorios con limitaciones de espacio y ruido.
Testwall puede suministrar el Rohde and Schwarz RTP044 usado, completamente probado. Con soporte experto y entrega global, Testwall garantiza instrumentación de alto rendimiento con fiabilidad y calidad de servicio incomparables. Contáctenos directamente si necesita calibración o reparación del Rohde and Schwarz RTP044.
