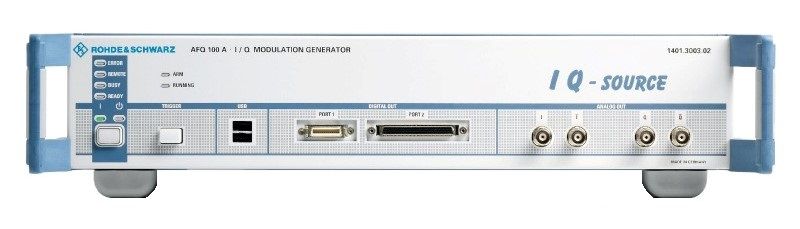

The R&S AFQ100A from  Rohde & Schwarz is a high performance self-contained  and flexible baseband source that perfectly meets the  requirements of digital baseband development and compolex modulation scheme generation and testing.  Featuring a maximum clock rate of 300 MHz, a bandwidth  of 200 MHz (RF) and a waveform memory of up to  1 Gsample, the R&S AFQ100A provides the functionality  and flexibility that is required for development and production  tests on receivers and components of modern digital  communications standards such as WiMAX and LTE.

The  R&S AFQ100A combines flexibility with  outstanding signal quality. Their spurious suppression,  for example, is first-rate and frequency response is  extremely linear.  All these essential features combined with a wealth  of other functions make the R&S AFQ100A a  very versatile baseband generator.

Digital communications are what the R&S AFQ100A was designed for:

• Variable memory clock rate (1 kHz to 300 MHz) can  optimally be adjusted to the useful signal
• RF bandwidth of 200 MHz, e.g. for compensating  higher-order non-linearities of multicarrier power  amplifiers (MCPA)
• Long signal duration of up to 1 Gsample (B11  option). Long signals are needed e.g. for bit error ratio  (BER) measurements
• WinIQSIM2 ™ options for communications standards  such as WiMAX, LTE, HSPA, etc.

Aerospace and defense applications

• High bandwidth for generating very short pulses with  short rise and fall times
• Pulse Sequencer Software for generating complex pulse  patterns (K6 option)
• Accuracy
• Removable hard disk to meet high security requirements

Outstanding signal quality

• Excellent spurious-free dynamic range (SFDR) of up to typ. 83 dBc
• Frequency response of typ. 0.1 dB across 100 MHz I/Q bandwidth
• Frequency response compensation
• Very pure sine-wave source

Broad scope of applications

• Analog I/Q outputs (balanced and unbalanced) and optional digital outputs, e.g. for D/A and A/D converter tests
• Multisegment waveform for reducing switching time between diffe test signals and thus improving test throughput
• Numerous trigger and marker capabilities, e.g. for synchronization with a DUT
• Optional BER measurements for characterizing receivers

Easy creation of test signals

• Digital standards using R&S ®WinIQSIM2 ™
• Pulsed signals with Pulse Sequencer Software
• MATLAB Transfer Toolbox for easy interoperability with MATLAB ®
• ARB Toolbox for converting numeric I/Q data into AFQ waveform files

Easy operation

• Remote control via GPIB, USB and LAN
• User interface via external monitor or Windows XP Remote Desktop
• USB connectors for USB equipment (keyboard, mouse, memory stick)
