Rohde & Schwarz

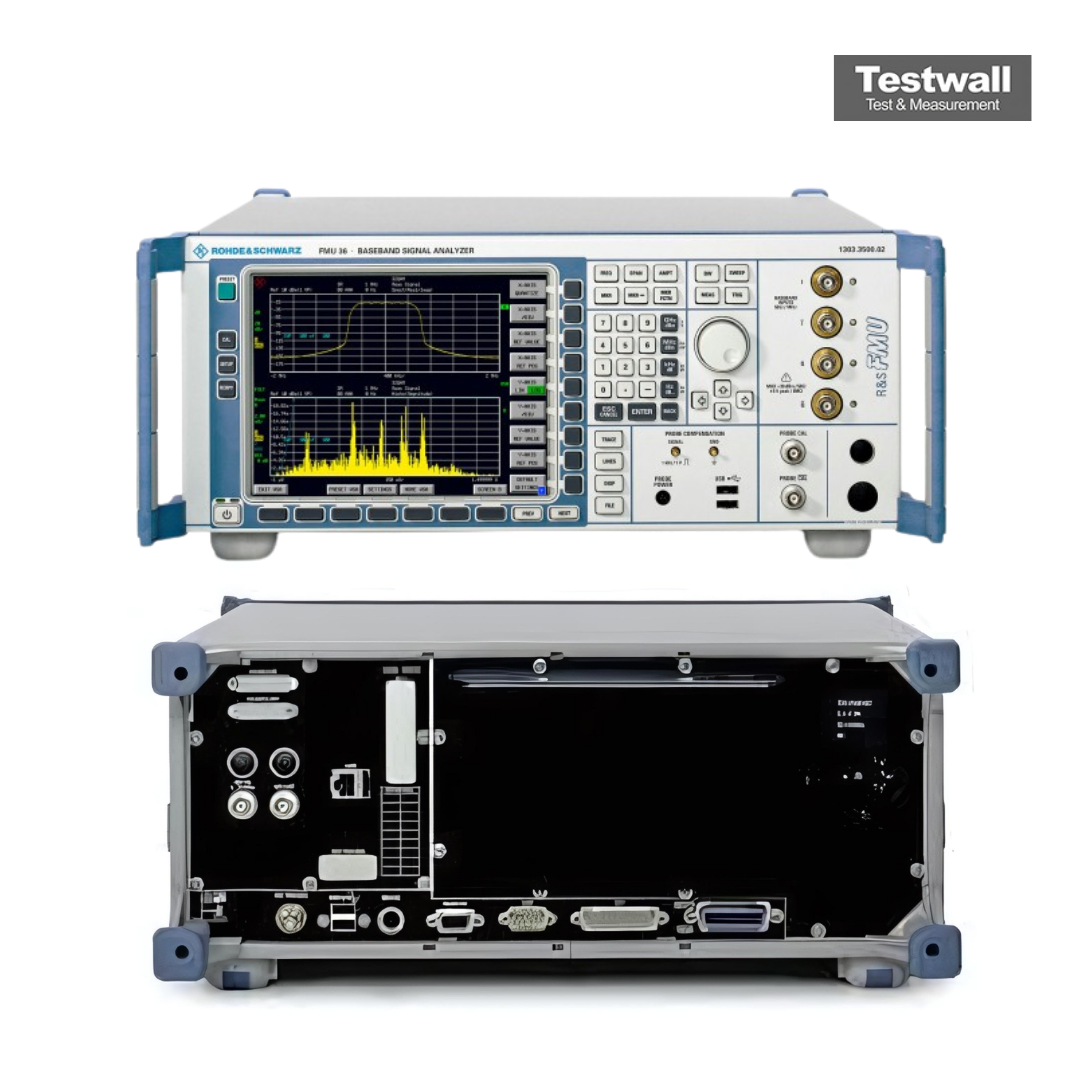

Rohde & Schwarz FMU36
36MHz - 500MHz Spectrum Analyser
20 Hz – 36 GHz Rango de frecuencia
-130 dBm a +30 dBm Rango de nivel de entrada
hasta 160 MHz Ancho de banda de análisis en tiempo real
1 Hz – 10 MHz Resolución de ancho de banda (RBW)
típico 15 dB (a 1 GHz) Figura de ruido
| Atributo | Valor |
|---|---|
| Rango de frecuencia | 20 Hz – 36 GHz |
| Rango de nivel de entrada | -130 dBm a +30 dBm |
| Ancho de banda de análisis en tiempo real | hasta 160 MHz |
| Resolución de ancho de banda (RBW) | 1 Hz – 10 MHz |
| Figura de ruido | típico 15 dB (a 1 GHz) |
| Distorsión de tercer orden (TOI) | típico +20 dBm |
| Rango dinámico | hasta 110 dB |
| Conectores de entrada RF | N hembra 50 Ω |
| Interfaz de comunicación | USB, LAN (Ethernet 1000BASE-T), GPIB (opcional) |
| Dimensiones y peso | 449 mm × 234 mm × 412 mm, aprox. 18 kg |
Rohde & Schwarz FMU36 Options:
- FMU36 - FSQ-B100 - I/Q Memory Extension to 235 Msample
- FMU36 - FSQ-B102 - I/Q Memory Extension to 705 Msample
- FMU36 - FSU-B4 - Low-Aging OXCO
- FMU36 - FMU-Z1 - High Impedance Probe
- FMU36 - FS-K5 - Modulation and spectrum measurements on GSM/EDGE base station and mobile station signals
- FMU36 - FS-K7 - AM/FM/PM demodulator
- FMU36 - FS-K8 - Bluetooth® transmitter measurements
- FMU36 - FS-K9 - Power sensor measurements (supports the NRP-Z11/-Z21 with NRP-Z4 USB adapter)
- FMU36 - FS-K72 - Modulation and code domain power measurements in line with 3GPP TS 24.141 on base station signals (node B)
- FMU36 - FS-K73 - Modulation and code domain power measurements in line with 3GPP TS 25.121 on mobile station signals (UE)
- FMU36 - FS-K74 - HSDPA extension for FS-K72
- FMU36 - FS-K76 - Modulation and code domain power measurements on TD-SCDMA base station signals
- FMU36 - FS-K77 - Modulation and code domain power measurements on TD-SCDMA mobile station signals (UE)
- FMU36 - FS-K82 - Modulation and code domain power measurements in line with CDMA2000®/3GPP2 on base station signals (also for measurements on IS-95/cdmaOne signals)
- FMU36 - FS-K83 - Modulation and code domain power measurements on CDMA2000®/1xEV-DV mobile station signals (UE)
- FMU36 - FS-K84 - Modulation and code domain power measurements on CDMA2000®/1xEV-DO mobile station signals (UE)
- FMU36 - FS-K85 - Modulation and code domain power measurements in line with CDMA2000®/1xEV-DO on base station signals
- FMU36 - FSQ-K91 - Modulation measurements on WLAN signals in line with IEEE 802.11 a/b/g/j
- FMU36 - FSQ-K92 - Modulation measurements on WiMAX OFDM signals in line with IEEE 802.16-2004
- FMU36 - FSQ-K93 - Modulation measurements on WiMAX OFDMA signals in line with IEEE 802.16e
| Model | FMU36 |
|---|
El Rohde & Schwarz FMU36 es un analizador de espectro basado en FFT con ancho de banda I/Q de 36 MHz, con entrada de banda base analógica para señales balanceadas y no balanceadas con impedancias de 50 Ω o 1 MΩ. Incluye analizador de dominio temporal y de señales vectoriales, con memoria I/Q hasta 705 Msample.
Con un piso de ruido típico < 4 nV [1 Hz], desequilibrio I/Q < 0,1 dB y relación señal-ruido > 143 dB [1 Hz], proporciona análisis detallados y precisos.
Testwall puede suministrar el Rohde & Schwarz FMU36 usado, completamente probado. Con soporte experto y entrega global, Testwall ofrece instrumentos de alto rendimiento con excelente fiabilidad. Contáctenos para calibración o reparación del Rohde & Schwarz FMU36.
