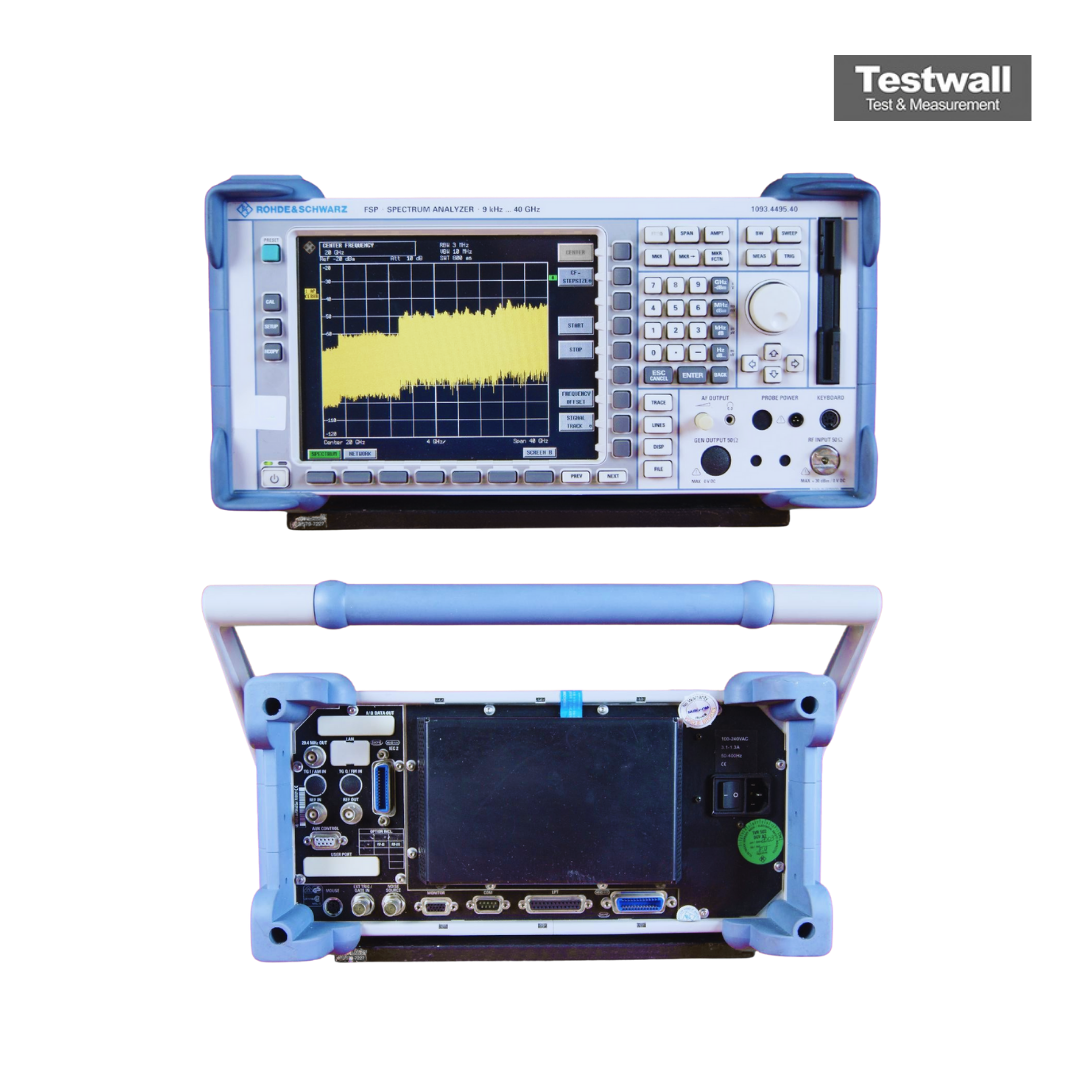

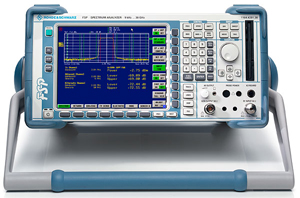

Rohde & Schwarz FSP40
| Atributo | Valor |
|---|---|
| Rango de frecuencia | 9 kHz – 40 GHz |
| Nivel de ruido mostrado promedio (DANL) | -145 dBm (típico) a 1 GHz |
| Rango dinámico | hasta 110 dB |
| Ancho de banda de resolución (RBW) | 10 Hz – 10 MHz |
| Ancho de banda de vídeo (VBW) | 1 Hz – 10 MHz |
| Nivel máximo de entrada | +30 dBm (1 W) |
| Exactitud del nivel | ± 0,3 dB (típico) |
| Fase de ruido | -106 dBc/Hz a 10 kHz de separación (típico) |
| Impedancia de entrada | 50 Ω |
| Interfaz y conectividad | GPIB, RS-232, puerto LAN (Ethernet), USB |
Rohde & Schwarz FSP40 Options:
- FSP40 - B1 - Cabinet for portable use
- FSP40 - B3 - AM/FM audio demodulator
- FSP40 - B4 - OCXO reference frequency
- FSP40 - B6 - TV trigger/RF power trigger
- FSP40 - B9 - Tracking generator
- FSP40 - B10 - External generator control
- FSP40 - B15 - Pulse calibrator
- FSP40 - B16 - LAN interface
- FSP40 - B20 - Extended environmental specification
- FSP40 - B21 - LO/IF ports for external mixers
- FSP40 - B25 - Electronic attenuator
- FSP40 - B28 - Trigger port
- FSP40 - B29 - Frequency range extension 20 Hz
- FSP40 - B30 - DC power supply
- FSP40 - B31/B32 - Battery pack/spare battery pack
- FSP40 - B70 - Demodulation hardware memory extension
- FSP40 - FS-K4 - Phase noise measurements (Windows software)
- FSP40 - FS-K5 - Modulation and spectrum measurements on GSM/EDGE base station and mobile signals
- FSP40 - FS-K7 - AM/FM/φM measurement demodulator for general applications
- FSP40 - FS-K8 - Bluetooth transmitter measurements
- FSP40 - FS-K9 - Power sensor measurements
- FSP40 - FS-K72 - Modulation and code domain power measurements in accordance with 3GPP TS 24.141 on base station signals (Node B)
- FSP40 - FS-K73 - Modulation and code domain power measurements in accordance with 3GPP TS 25.121 on mobile station signals (UE)
- FSP40 - FS-K74 - HSDPA extension for R&S FS-K72
- FSP40 - FS-K76 - Modulation and code domain power measurements on TD-SCDMA base station signals
- FSP40 - FS-K77 - Modulation and code domain power measurements on TD-SCDMA mobile station signals (UE)
- FSP40 - FS-K82 - Modulation and code domain power measurements in accordance with CDMA2000/1xEV-DV on base station signals
- FSP40 - FS-K83 - Modulation and code domain power measurements on CDMA2000/1xEV-DV mobile station signals (UE)
- FSP40 - FS-K84 - Modulation and code domain power measurements on 1xEV-DO base station signals
- FSP40 - FS-K85 - Modulation and code domain power measurements on 1xEV-DO mobile station signals (UE)
- FSP40 - FSP-K90 - WLAN 802.11a Application Firmware
- FSP40 - FS-K30 - Noise figure measurements (application firmware), remote-controllable
| Model | FSP40 |
|---|
El analizador de espectro Rohde & Schwarz FSP40 cubre un rango de frecuencias de 9 kHz a 40 GHz, con anchos de banda de resolución de 1 Hz a 10 MHz y un nivel de ruido medio mostrado de –155 dBm. Dispone de filtros de canal, filtros FFT, anchos de banda EMI, detectores quasi‑peak y aplicaciones de medición para estándares celulares y usos generales.
Con soporte para diversos filtros y detectores, incluye funciones de disparo interno y externo, interfaces GPIB y LAN, Windows XP integrado, pantalla TFT SVGA a color de 21 cm con modo de pantalla dividida y funcionalidad de escritorio remoto.
Testwall puede suministrar el usado ROHDE & SCHWARZ FSP40, completamente probado. Con soporte experto y entrega global, Testwall asegura instrumentación de alto rendimiento con fiabilidad y calidad de servicio incomparables. Por favor contáctenos directamente si necesita calibración o reparación del ROHDE & SCHWARZ FSP40.
