Rohde & Schwarz FSPN26
| Atributo | Valor |
|---|---|
| Rango de frecuencia | 1 MHz – 26,5 GHz |
| Rango de ruido de fase medible | -70 dBc/Hz a -184 dBc/Hz |
| Frecuencia de offset medible | 0,01 Hz – 1 GHz |
| Nivel de entrada máximo | +30 dBm |
| Piso de ruido de fase residual | -184 dBc/Hz (típico) |
| Impedancia de entrada | 50 Ω |
| Conectores de entrada RF | N hembra (50 Ω) |
| Modos de medición | Ruido de fase, jitter, ruido de frecuencia, análisis espectral, transitorio de frecuencia |
| Alimentación eléctrica | 100 V – 240 V CA, 50/60 Hz |
| Dimensiones (An × Al × Pr) | 426 mm × 222 mm × 497 mm |
| Model | FSPN26 |
|---|

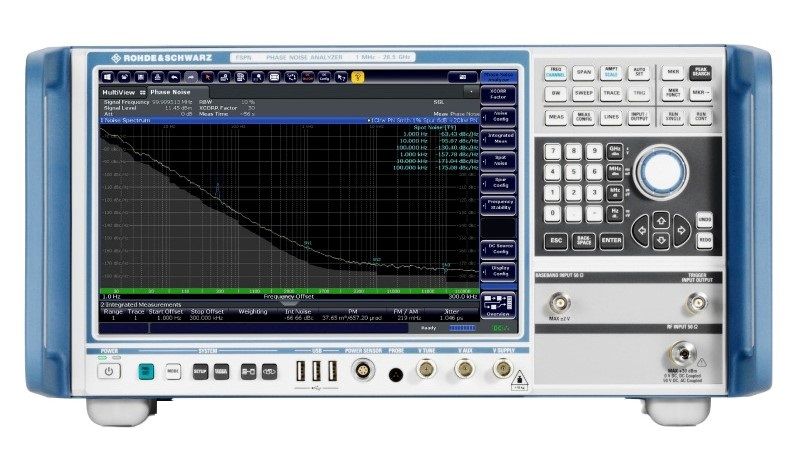

ROHDE & SCHWARZ FSPN26 Phase Noise Analyzer and VCO Tester
The Rodhe & Schwarz FSPN26 Phase Noise Analyzer and VCO Tester features very high sensitivity and metrological accuracy and provides highest reliability. With its extremely high measurement speed and easy usability, it is the perfect instrument for efficient phase noise analysis tasks both in R&D and on production lines. Featuring its low noise internal local oscillators, the Rodhe & Schwarz FSPN26 measures phase noise on highly stable sources like synthesizers, VCOs, OCXOs and DROs found in radar and satellite applications without any additional options.
With an extremely good phase noise sensitivity, the Rodhe & Schwarz FSPN26 requires a hundred times fewer correlations compared to other solutions on the market to measure highly sensitive oscillators. This saves measurement time and multiplies measurement throughput, two of the core parameters for production lines. It can measure amplitude noise and phase noise simultaneously, displaying the results of both measurements in a common diagram or in separate windows. The Rodhe & Schwarz FSPN26 offers up to 26 GHz bandwidth for detailed characterization of synthesizers, measuring the settling times after a frequency hop, ramps, switching times etc. For narrowband characterization, it offers narrowband analysis down to 40 MHz. It's also having trigger capabilities for reproduceable measurements on phase or frequency deviation.
Specifications for the ROHDE & SCHWARZ FSPN26 Phase Noise Analyzer and VCO Tester Include:
| Frequency Range | 1 MHz to 26.5 GHz |
| Phase Noise Sensitivity | < €“163 dBc (1 Hz) (f = 1 GHz, 10 kHz offset) |
| AM Noise Sensitivity | < €“158 dBc (1 Hz) (1 GHz < f ‰¤ 12 GHz, 10 kHz offset) |
| Power consumption | 235 W |
